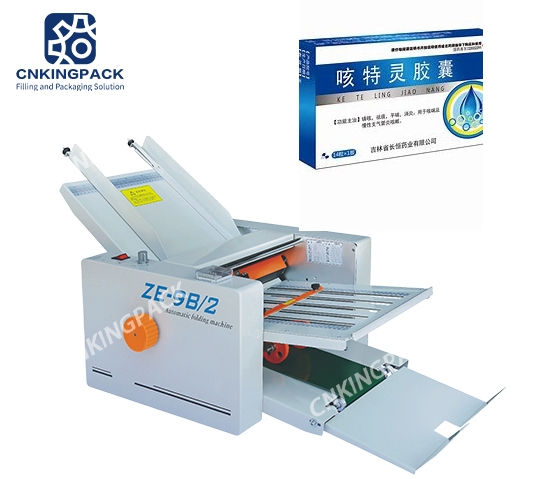

Automatic Folding Machine
Description
ZE series automatic origami machine is a small desktop origami machine developed by our company. It is suitable for folding paper in various ways. The structure of this machine is reasonable. It uses large rubber wheel to deliver paper. The accuracy of sheeting is stable, the operation is convenient and the efficiency is high.
Features
1.Folding Paper Machine is available for folding 4 times like the folding style shows on the following picture.
2. It's widely usded for foldiing the product manual, business or official letter etc.
3.It's suitable for folding paper in different size and thickness.
4.This is a mini table type paper folding machine which featured with a novel design and reansonable structure.
5.The paper feeding is achieved by big rubber roll, which has the advantage of stable performance, convenient operation,
6.Also the speed is stepless adjustable which is high efficiency.
Advantage
1.Strong structure machine body
2.With simple adjustable buttons, easy to operate
3. High quality transport roller with long life
4.Can be well fit for A3 A4 size paper, and can be folded to many styles
Applications
It's suitable for folding paper in different size and thickness. This is a mini table type paper folding machine which featured with a novel design and reasonable structure. The paper feeding is achieved by big rubber roll, which has the advantage of stable performance, convenient operation, the speed is stepless adjustable which is high efficiency.
Parameter Data
|
Model
|
ZE-8B/2
|
ZE-8B/4
|
ZE-9B/2
|
ZE-9B/4
|
|
|
Power supplier
|
V/HZ
|
AC 220/50 110/60
|
|||
|
Power
|
W
|
50
|
|||
|
Folding times
|
2
|
4
|
2
|
4
|
|
|
Max paper sheet
|
mm
|
310×700
|
210×420
|
210×620
|
|
|
Min paper sheet
|
mm
|
50x70
|
|||
|
Paper weight
|
gsm
|
20-125
|
|||
|
Max speed
|
m/min
|
80
|
|||
|
Weight
|
kg
|
35
|
48
|
30
|
43.5
|
|
Overall dimension
|
mm
|
1050×525×505
|
1080×530×580
|
1020×425×525
|
1020×430×580
|
