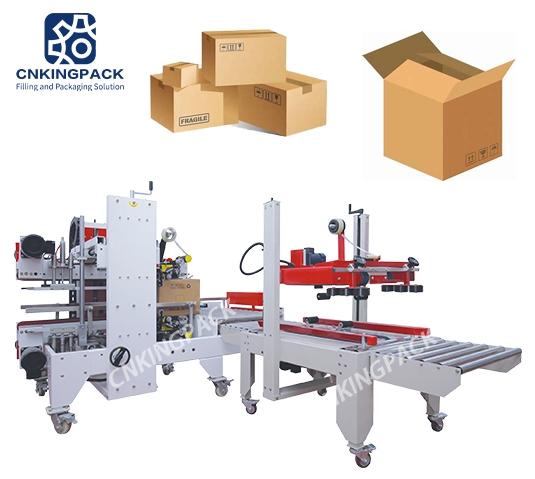

FXJ-5050 Seailing Machine+H8001 sides Sealing Machine
Description
This carton sealing machine is suitable for carton packaging of various carton sizes and specifications. When the carton size changes, the carton sealer automatically adjusts the width and height of the carton.The fully automatic four-corner side sealing machine is equipped with four conveying motors and a strong and durable conveyor belt with strong friction. Not only does the load change greatly, but the conveying is more stable, and the production operation is full of power.
Features
1)It is sealed with sticky tape, and the width and height of the carton can be automatically adjusted when the size of the carton changes.
2)Economical and fast, it can complete the upper, lower and four corner sealing operations at one time.
3)Intelligent adjustment, fast and convenient.
Advantage
1)The applicable size is very wide.
2)Pneumatic device is adopted to realize automatic sealing.
3)The height and width of the carton sealer can be automatically adjusted to the appropriate position according to the size of the carton, which can meet the needs of different carton sizes but need to be contacted for sealing.
4)Using four motors, the power is strong, and the four-edge sealing can be completed at one time.
Applications
This machine is widely used in food, beverage, cosmetics, household appliances, books, textiles, department stores, chemicals and other industries.
Parameter Data
Model | FXJ-5050 | H8001 |
Voltage | 220V/50Hz | 220V/60-50Hz |
Power | 180w | 1000w |
Sealing speed | 0-18m/min | 17.5m/min |
Tape width | 60-78mm | 60-78mm |
Tape head | 50-70mm(Adjustable) | 50-70mm(Adjustable) |
Sealing length | Min 150mm | 200-500mm |
Sealing width | 150-500mm | 320-500mm |
Sealing height | 150-500mm | 180-500mm |
Table height | 570-730mm | 660-740mm(Adjustable) |
Working air pressure | 5-6kg/cm² | 5-6kg/cm² |
Dimensions | L1000*W830*H1240mm | L1970*W1100*H1470mm |
