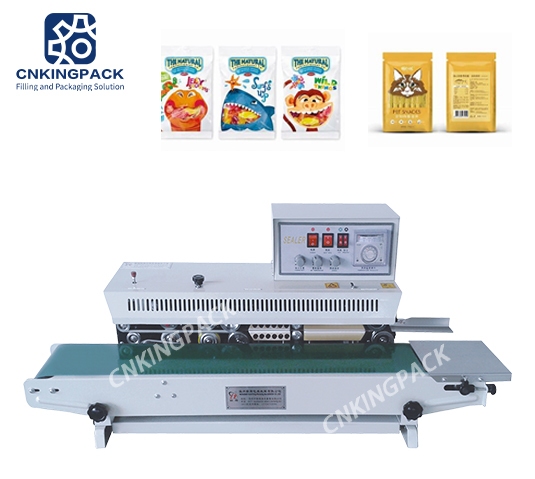

FR-980 Ink Printing Automatic Sealing Machine

FR-980 ink wheel printing continuous sealing machine is suitable for sealing any heat-sealable material. Stepless adjustable speed, constant temperature control, adjustable temperature, wide range of adaptation.

Description

This aInk Printing Automatic Sealing Machine adopts electronic constant temperature control and automatic conveying device, can control different shapes of plastic film bags, can be used in all kinds of packaging line, the seal length is not limited.Continuous film sealing machines finish continuous carrying, sealing and printing in one operation. The machine can be made horizontally, vertically or with stand feet.It adopts electronic constant temperature mechanism and stepless speed regulating transmission motor.

The machine uses solid ink rollers to print colored labels while sealing. R type 2 lines No. 4 characters (PT18) or 3 lines No. 5 characters.

Features

1)Temperature control and automatic conveying device can control a variety of different shapes of plastic film tape, in a variety of packaging lines supporting the use of sealing length is unlimited.

2)The sealing machine can be equipped with wheels and embossing printing wheel, with the need to replace the fonts can be printed on the seal while the date of manufacture, shelf life, shelf life and other signs, sealing and marking legible and beautiful patterns.

3)Printing can be a complete seal, date, batch number with the need to replace, easy to use, in line with article Food Sanitation Law.

4)The automatic film sealing machine for pharmaceutical, pesticide, food, cosmetic.

Advantage

1)It’s suitable for foil bags, plastic bags, composite bags sealing, the sealing device has a solid, high efficiency; simple and compact structure, small size.

2)Shape appearance, advanced technology, low power consumption; operation and easy maintenance, etc., is an ideal sealing machinery.

3)Portable, easy to operate, easy to maintain, long service life, small capital investment.

4)The machine uses solid ink rollers to print colored labels while sealing. R type 2 lines No. 4 characters (PT18) or 3 lines No. 5 characters.

5)A counting device can also be configured as required.

Applications

FR series continuous film sealing machines finish continuous carrying, sealing and printing in one operation. The machine can be made horizontally, vertically or with stand feet. It adopts electronic constant temperature mechanism and stepless speed regulating transmission motor. It can seal plastic film in various kinds of materials.Sealing machine widely used in: food, pharmaceutical aquatic, chemical and electronics industries.Sealing machine can seal all kinds of bags without width limit:Kraft paper, fresh keeping bag, tea bag, aluminum foil bag, shrink film, food packaging bag, etc.

Parameter Data

Model FR-980
Voltage 220V/50Hz
Motor power 50/100w
Heating power 300*2w
Printing heating power 40*2w
Sealing speed 0-16m/min
Sealing width 10mm
Temperature range 0-300℃
Printing style Solid ink wheel
Belt size 954*180mm
Loading weight ≤10kg
Dimensions 954×400×430mm
Net weight 29kg
