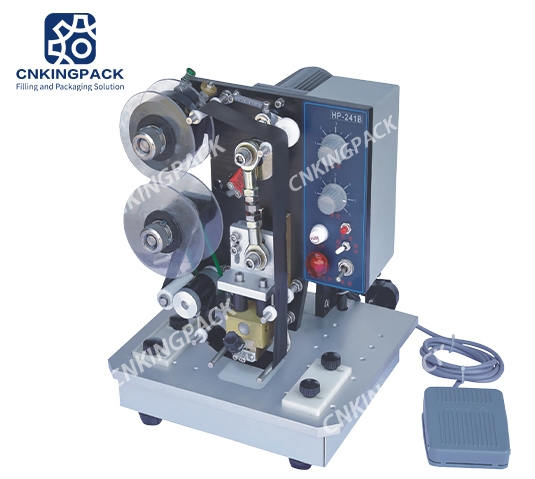

HP-241B Color ribbon printing machine

This machine uses advanced hot code printing technology, adopts hot printing belt instead of ink printing. It is used for printing factory name, production date, expire date, batch number, etc on plasitc, aluminum or paper bags.

Description

This machine uses advanced hot code printing technology, adopts hot printing belt instead of ink printing.

It is used for printing factory name, production date, expire date, batch number, etc on plasitc, aluminum or paper bags.

Features

1.The machine is equipped with a motor, which is triggered by synchronous signal.

2.It is small in size, easy to install, easy to print, clear in printing, and does not lose color。

3.The use of a special and clever film wrapping structure solves the synchronization error of fast coding.

Advantage

1.Printing on any packaging materials,clear and not easy to scrape,sanitary and clean.It run with the main frame, convenient installment and adjustment..

2..Automatic electric ribbon coding machine suitable for all kinds of packing machine.

3.It can be equipped with all kinds of flow packing machine and continuously vertical packing machine for tracing and printing production date,lot number,expire date.

4.Character moulds need to be customized: 0-9 a-z A-Z . / etc. 2*3*15mm/2*4*15mm for choose.

Applications

It is widedly used in food, beverage, medicine, daily cosmetics inducstries.

This machine is very popular for its clear printing words, easy and quick dry, simple operation, convenient letter change ,etc.

Parameter Data

Printing area   1-3 lines x 14 digits
Character size  Brass types, 2mm or 3mm for T- type
Printing Speed  up to 200 prints/min
Power 110/220V 50/60Hz, 1 Ph, 200W.
Signal required  Contact signal,NPN photoelectric sensor or 24 VDC
Dispensable material  Hot Foil / Ribbon.
Machine Dimensions 280*180*420mm
