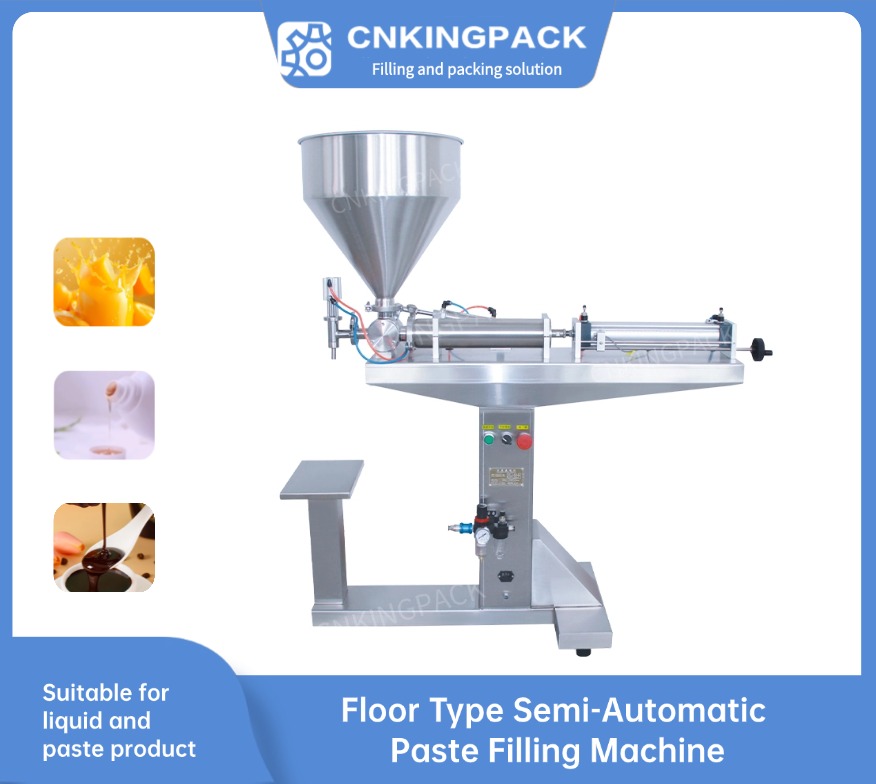

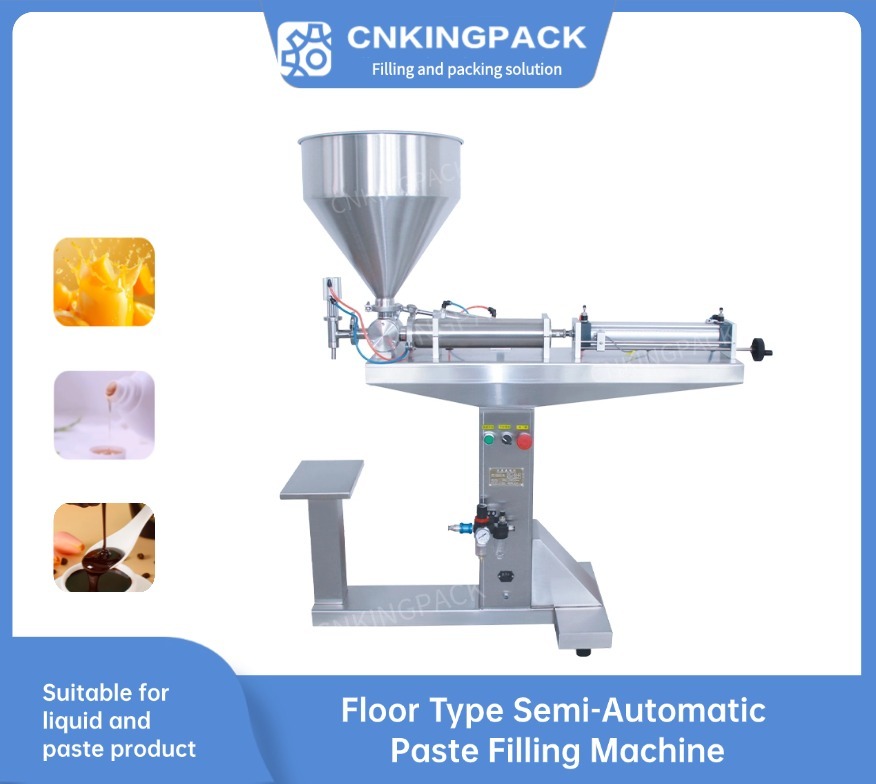

Floor Type Semi-Automatic Paste Filling Machine
This machine is suitable for quantitative filling with low viscosity and no gas liquid, such as mineral water, juice, pesticide, soy sauce, and vinegar.
Description
This machine is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant,engine oil products. It is able to integrate to capping machine and labeling machine in bottling line,fully complete and intelligence control advantage.
Features

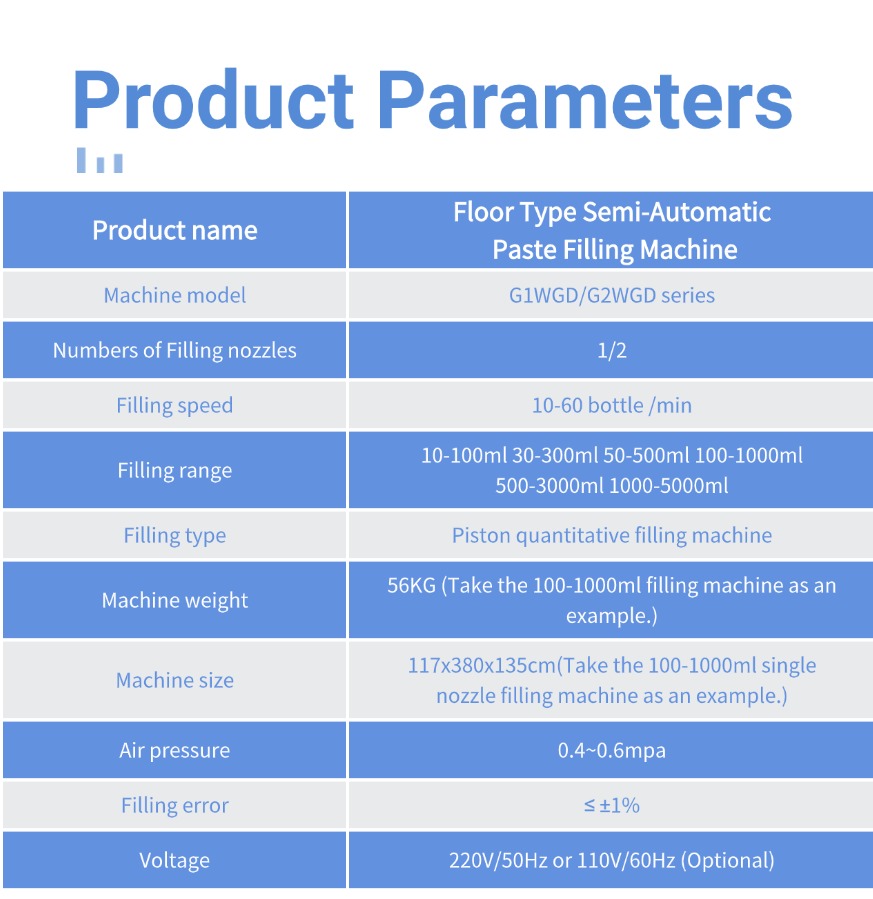

| Product name | Floor Type Semi-Automatic Paste Filling Machine |
| Machine model | G1WGD/G2WGD series |
| Numbers of Filling nozzles | 1/2 |
| Filling speed | 10-60 bottle /min |
| Filling range | 10-100ml 30-300ml 50-500ml 100-1000ml 500-3000ml 1000-5000ml |
| Filling type | Piston quantitative filling machine |
| Machine weight | 56KG (Take the 100-1000ml filling machine as an example.) |
| Machine size | 117x380x135cm(Take the 100-1000ml single nozzle filling machine as an example.) |
| Air pressure | 0.4~0.6mpa |
| Filling error | ≤±1% |
| Voltage | 220V/50Hz or 110V/60Hz (Optional) |
