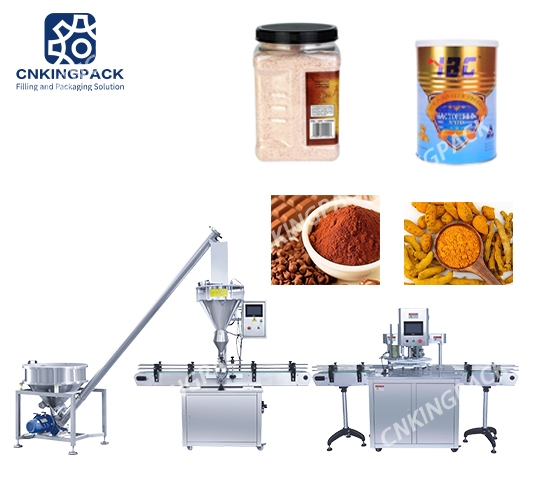

Milk Powder Filling and Can Seaming Machine

The packaging machine is used for packing pesticides, veterinary drugs, premixes, additives, milk powder, starch,seasonings, enzyme preparations, fodder and other powder-like quantitative packing

Description

The packaging machine is used for packing pesticides, veterinary drugs, premixes, additives, milk powder, starch,seasonings, enzyme preparations, fodder and other powder-like quantitative packing

Features

  • 01 It is suitable for quantitative filling of various bottles, cans and bags, and the packagin container is not restricted;
  • 02 The filling motor uses a stepper motor or an imported servo motor;
  • 03 The mixing motor adopts a noise-free motor motor produced by Taiwan;
  • 04 Photoelectric induction cutting, also optional foot switch cutting;
  • 05 The feedback indicates that the division value is adjustable to meet the needs of various precisions;
  • 06 The filling motor speed can be adjusted to meet the requirements of various materials;
  • 07 All stainless steel material, with feeding machine can realize automatic material level control;

Advantage

  • 01 Packaging powdery in 5-1000g bottle or bag.
  • 02 Stepper motor drive the auger, got high accuracy.
  • 03 Can inter Many languages in the touch screen.
  • 04 Reasonable mechanical structure, easy to change size parts and clean up.
  • 05 Through changing accessories, the machine is suitable for various powder products.
  • 06 We use famous brand electric, more steady.

Applications

The filling machine is used for packing pesticides, veterinary drugs, premixes, additives, milk powder, starch,seasonings, enzyme preparations, fodder and other powder-like quantitative packing

Parameter Data

Filling machine parameters

Voltage

AC380 50HZ  1300W/AC220V 50HZ  1300W

Filling range

5-5000g

Filling speed

1500-3500pcs/hour

Accuracy grade

±1%

Dimension

2000*1060*2000mm

Weight

200kg

Applicable bottle diameter

Diameter:20-150mm  height:60-300mm(can be customized according to your bottle size)

Hopper volume

45L



Canning machine parameters

Model

KPL-500

Voltage

220v/380v 50/60hz

Power

750w

Capacity

30-50cans/h

Cans height

50-200mm

Cans diameter

30-100mm

Dimension

3000*900*1800mm

Weight

300kg
