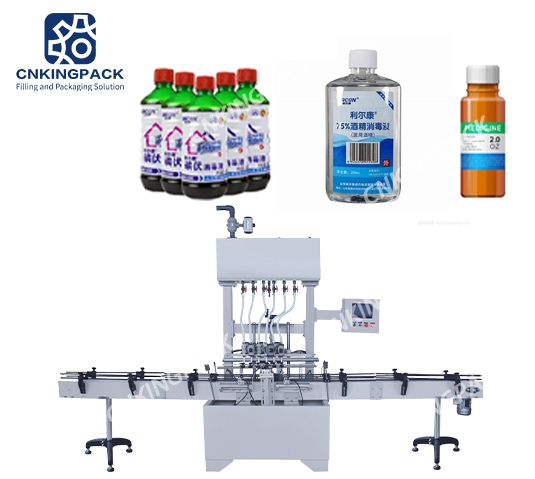

Bleach Filling Machine
Description
The automatic anticorrosive liquid filling machine is suitable for filling corrosive materials of various special-shaped bottles. The filling operation is simple and convenient. It is suitable for corrosive materials such as toilet cleaner, pesticides, alcohol, 84 disinfectant, insecticide, descaling agent, etc.
Features
1. The equipment is specially designed for filling strong acid materials such as toilet cleaner, etc.
2. The contact part of the whole machine and materials is all made of PVC materials, without any metal parts.The stainless steel shell is covered with protective film to avoid acid corrosion.
3. The equipment is equipped with suction pipe, which can automatically fill the material, saving the filling step.
4. The large-diameter filling mouth is equipped with a cylinder, which will automatically backsuck and seal after each filling to prevent leakage.
5. Adopt the way of oil cylinder and cylinder combination, make filling more smooth and stable, prevent spillage.
Advantage
- This machine specially designed corrosive liquid like toilet cleaner,all the parts which contact with the toilet are made from plastic.
- This machine uses a compressor as the power,it can work without any external electric power,it's easy to adjust filling volume and speed,and suitable for caustic liquid like hydrochloric acid.
Applications
This machine specially designed for powerful toilet cleaner,all the parts which contact with the toilet cleaner are made from plastic. This machine uses a compressor as the power, is workable without any external electric power, it's easy to adjustment filling volume and speed, easy use, safety and reliability, suitable for filling toilet cleaner or caustic liquid.
Parameter Data
Model |
CF-2D |
CF-4D |
CF-6D |
Filling Head |
2 |
4 |
6 |
Filling volume |
100-1000ml 1000--5000ml |
100-1000ml 1000--5000ml |
100-1000ml 1000--5000ml |
Filling type |
Piston Quantitative Filling |
Piston Quantitative Filling |
Piston Quantitative Filling |
Speed |
300-600B/H |
600-1000B/H |
1000-1500B/H |
Filling accuracy |
±1% |
±1% |
±1% |
Material |
Stainless steel 304 |
Stainless steel 304 |
Stainless steel 304 |
Air pressure |
0.5--0.8Mpa |
0.5--0.8Mpa |
0.5--0.8Mpa |
Power |
220V,50Hz,500W |
220V,50Hz,500W |
220V,50Hz,500W |
Air consumption |
200-300L/min |
200-300L/min |
200-300L/min |
Weight |
300KG |
450KG |
600KG |
