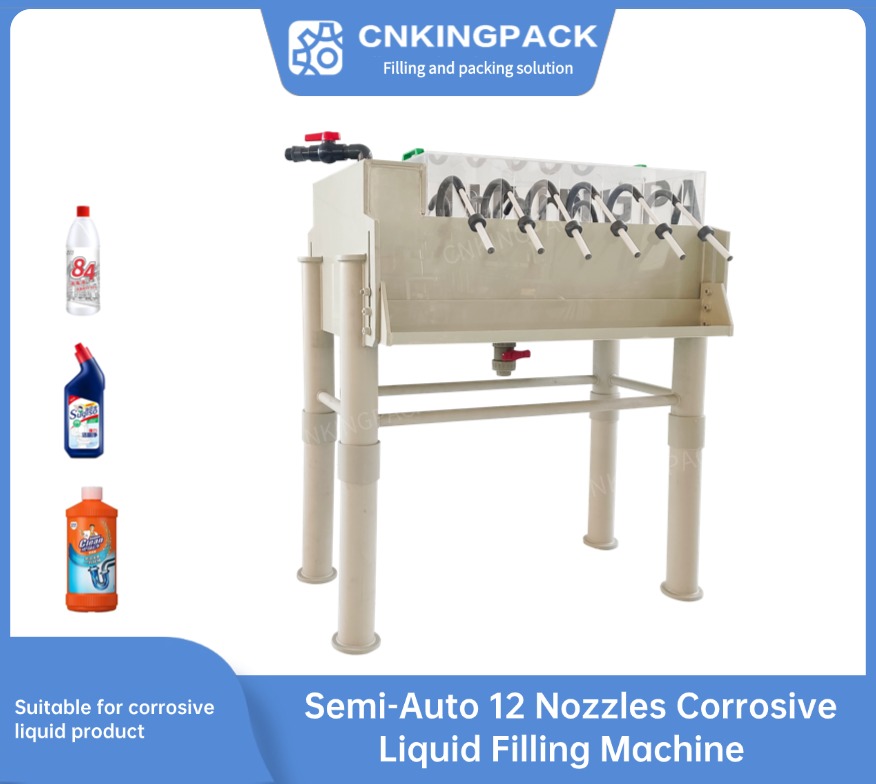

Semi-auto 12 nozzles corrosive liquid filling machine
Bleach Filling Machine
Level filling machine
The semi-automatic anticorrosive liquid filling machine is suitable for filling corrosive materials of various special-shaped bottles. The filling operation is simple and convenient. It is suitable for corrosive materials such as toilet cleaner, pesticides, alcohol, 84 disinfectant, insecticide, descaling agent, etc.
Description
- It is specially developed for the low viscosity but corrosive liquid filling;
- This machine specially designed corrosive liquid like toilet cleaner,all the parts which contact with the toilet are made from plastic.
- This machine uses a compressor as the power,it can work without any external electric power,it's easy to adjust filling volume and speed,and suitable for caustic liquid like hydrochloric acid.
Features
Using the principle of liquid level filling, the filling volume is controlled by controlling the liquid level, and the operation is simple.
Filling nozzles: 12
Machine speed: 48-70pcs/minute(based on the bottle volumes)
Fill range: 200 ml to 5 liters
Capacity : 10-12 tons / day (8 hours) can be filled

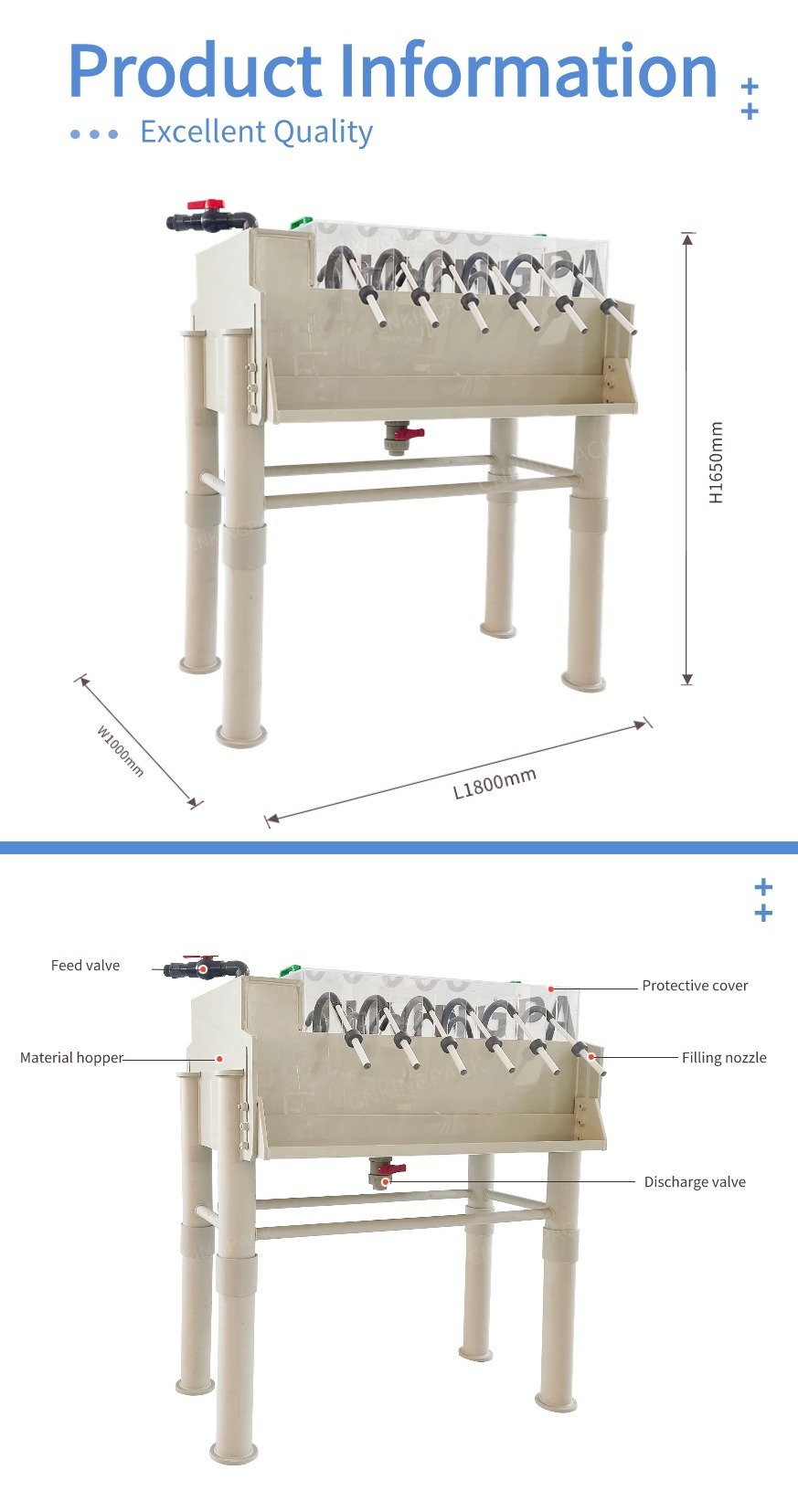

Machine size:1800*1000*1650mm
Machine weight:70kg
Machine material: Plexiglass Transparent cabinet body
Hopper volume: 100 liters
Note: No electricity required
Advantage
1. No electricity, no gas, green and environmental protection, no pollution；
2. The structure of the machine is simple and the operation is convenient；
3. Wide range of applications, suitable for a variety of low-concentration liquid products, especially for corrosive liquid products.

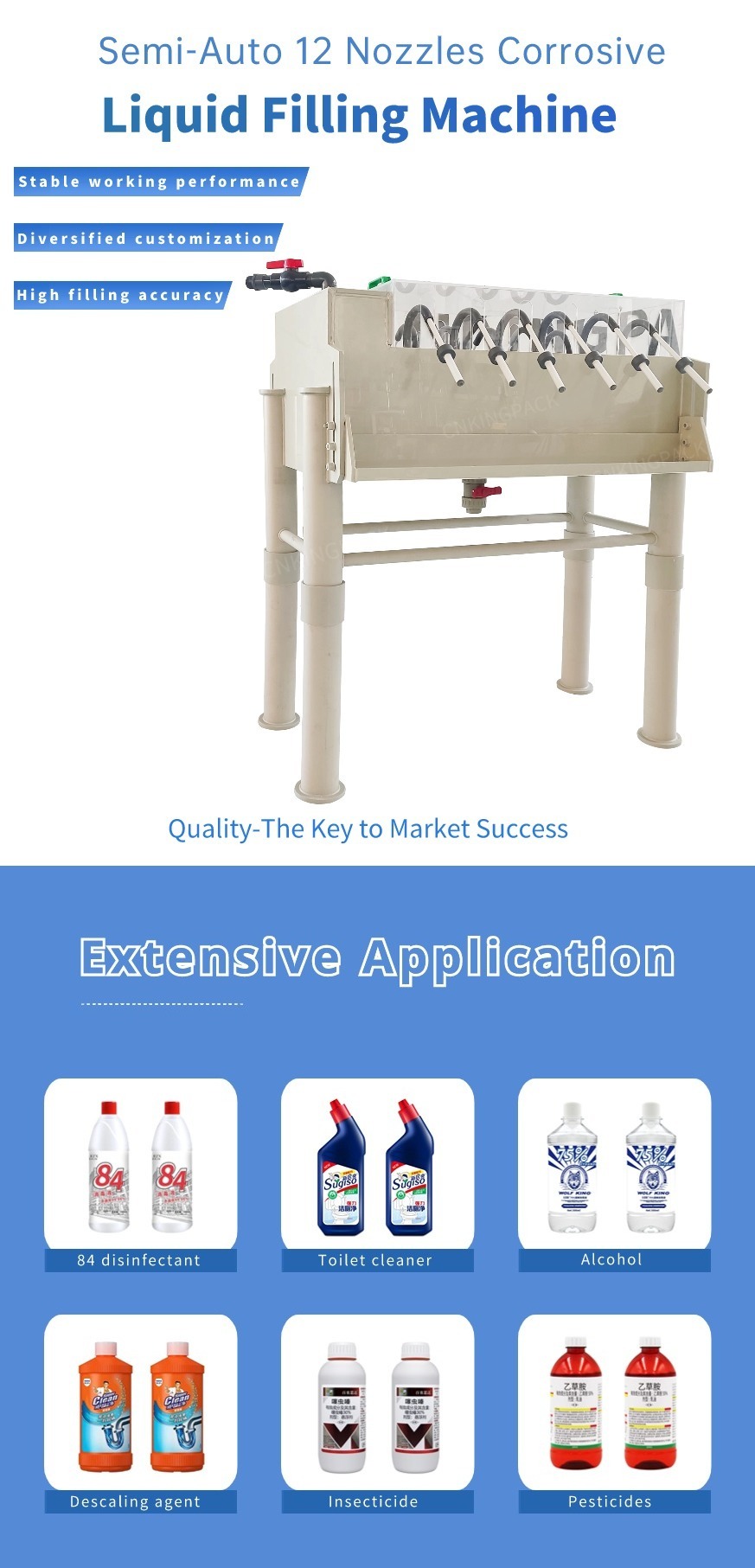

Applications
It is specially developed for the low viscosity but corrosive liquid filling. Such as, Toilet cleaner, 84 disinfectant, bleach，etc.

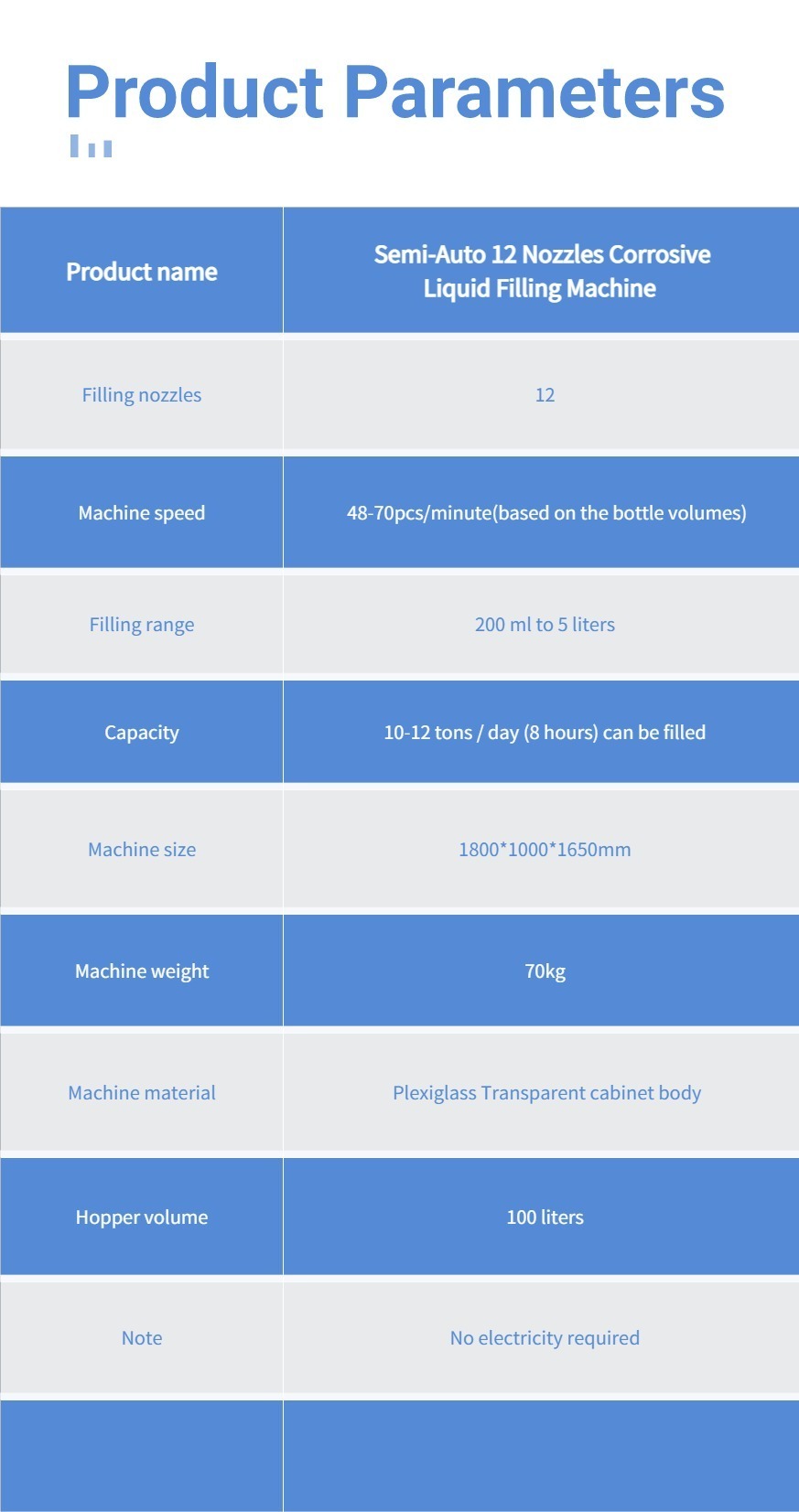

Parameter Data
• Weight from 200 cc to 5 liters
• 10-12 tons / day (8 hours) can be filled
• Plexiglass Transparent cabinet body
• Semi-manual system
• Machine has a siphon system
• Pool capacity of 100 liters
• There are 12 nozzles on the machine
• No electricity required
