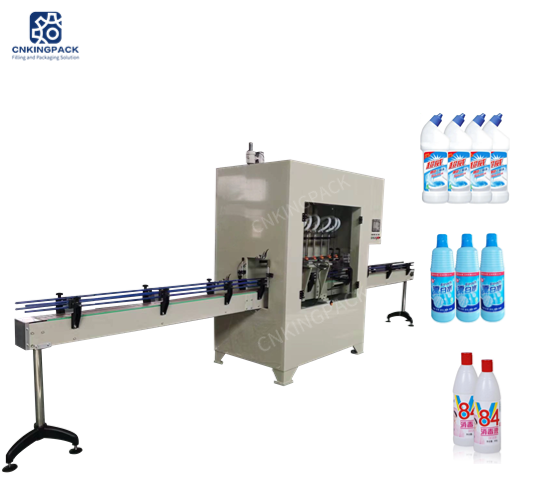

Automatic Anti-corrosion Liquid Filling Machine
This machine is made of PVC anti-corrosive material and has corrosion resistance.Suitable for filling corrosive products, such as toilet cleaner, kitchen cleaner, stain remover, etc. Featured by accurate measurement and dropping during the filling work.This machine has advantages on perfect performance, easy operation, safe work, well-organized, convenient maintenance and long-life use.
Description
This machine is made of polyvinyl chloride anti-corrosion material and has corrosion resistance. Suitable for filling corrosive products, such as toilet cleaner, kitchen cleaner, stain remover, etc.
Features
1,Pneumatic control or Electric control or Both
2, Wide suitability
3, High filling accuracy
4, Labor saving
5, Easy to use and maintain
6, timed filling, no filling in case of no bottle, counting of filling volume etc.
Advantage
It has the characteristics of accurate measurement and dripping during the filling process. This machine has complete performance, convenient operation, safe operation, orderly organization, convenient maintenance, and long service life. By setting the time to control the filling range, the filling amount is very accurate and there are no bubbles or drips.
Applications
This machine is made of PVC anti-corrosive material and has corrosion resistance.Suitable for filling corrosive products, such as toilet cleaner, kitchen cleaner, stain remover, etc. Featured by accurate measurement and dropping during the filling work.This machine has advantages on perfect performance, easy operation, safe work, well-organized, convenient maintenance and long-life use.
Parameter Data
| Filling head | 8 filling nozzles(can customized) |
| Filling volume | 500-5000ml(control by time)customized |
| Filling speed | 20-45 Bottles Per Minute (adjustable) |
| Power supply | AC220V 380V 50/60Hz (design as your requirements) |
| Filling Precision | <±1% |
| Driven Type | Servo motor control |
| Material | All material (products) touch parts are made of corrosion-resistant non-metallic materials (machine). |
| Air Pressure | 0.8-1.0Mpa |
| PLC | Siemens touch screen |
| Net weight | about 600Kg |
| Dimension | 2200(L)x1000(W)x2400(H)mm |
