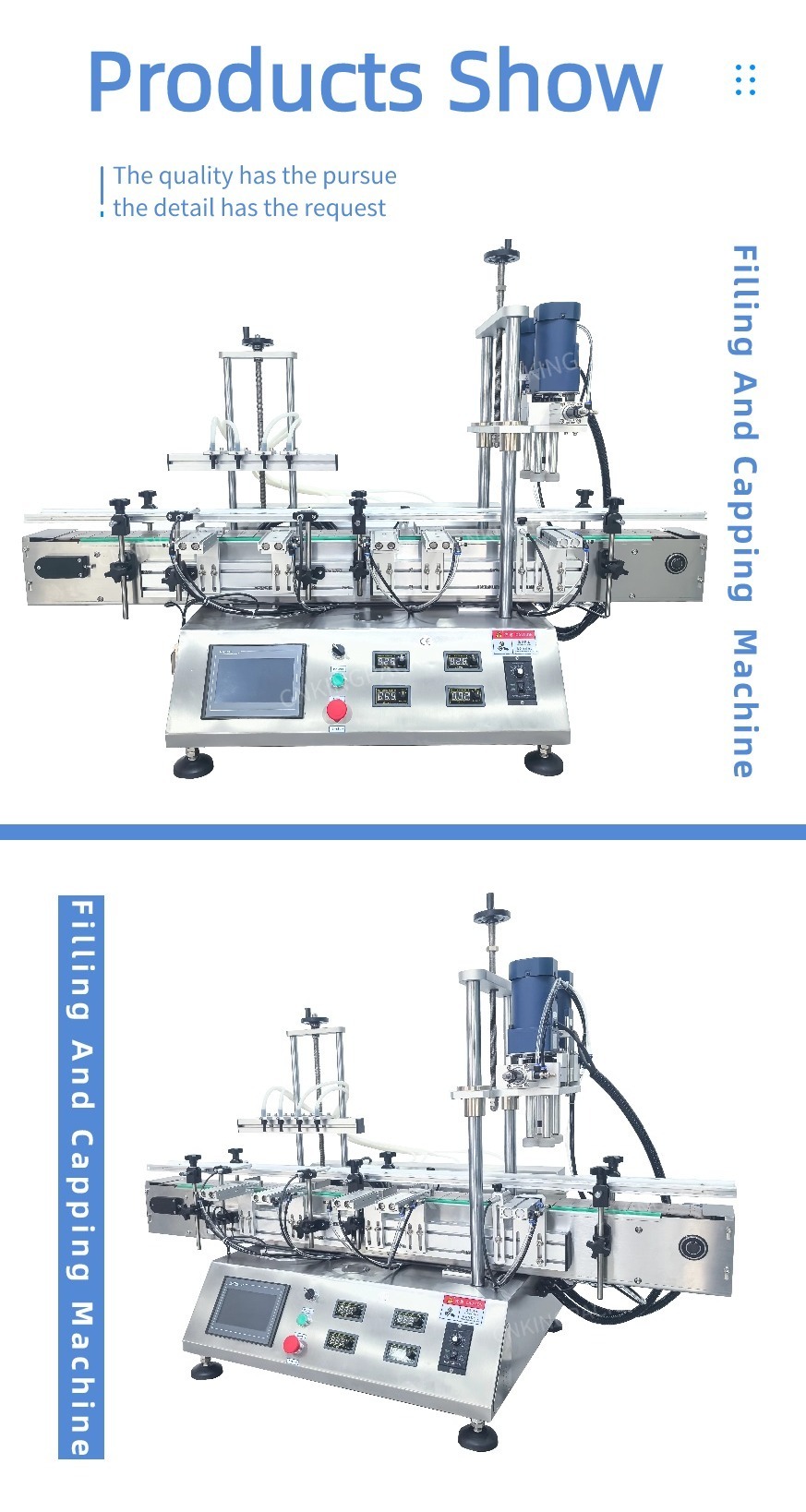

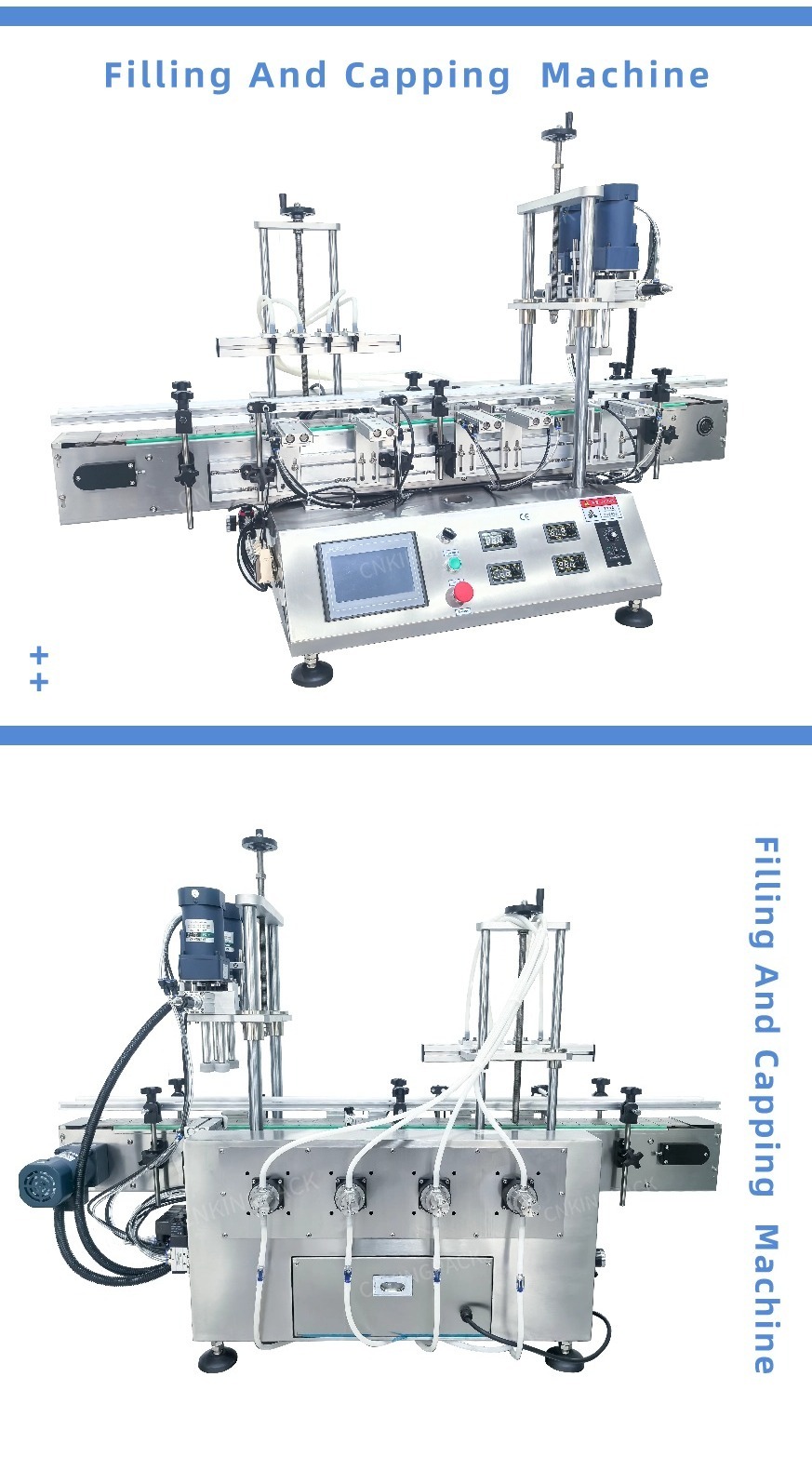

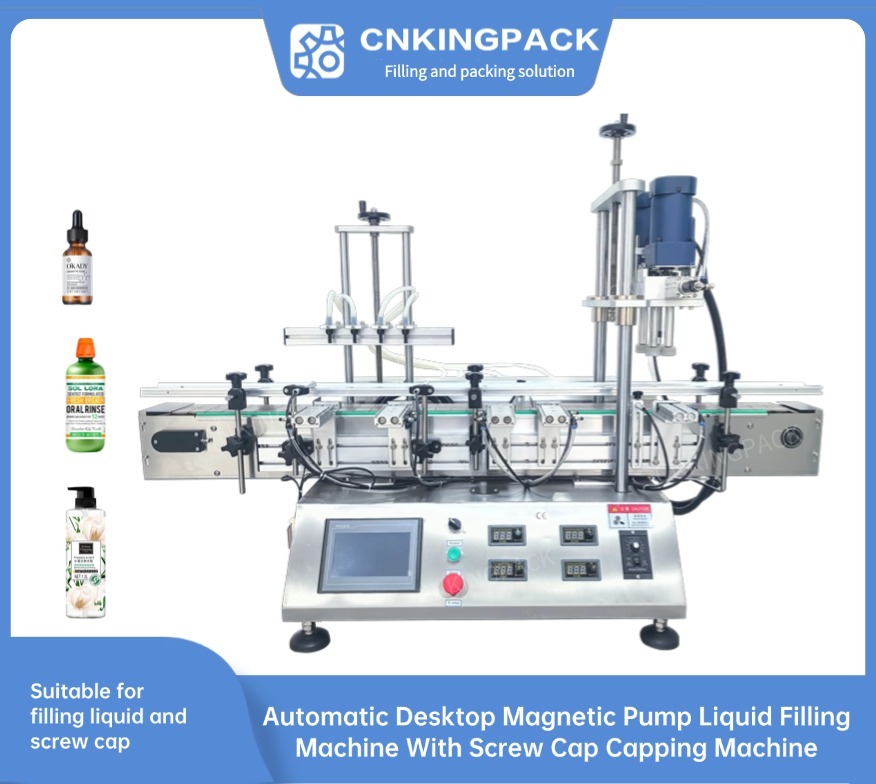

Automatic Desktop magnetic Pump Liquid Filling Machine with screw cap capping machine

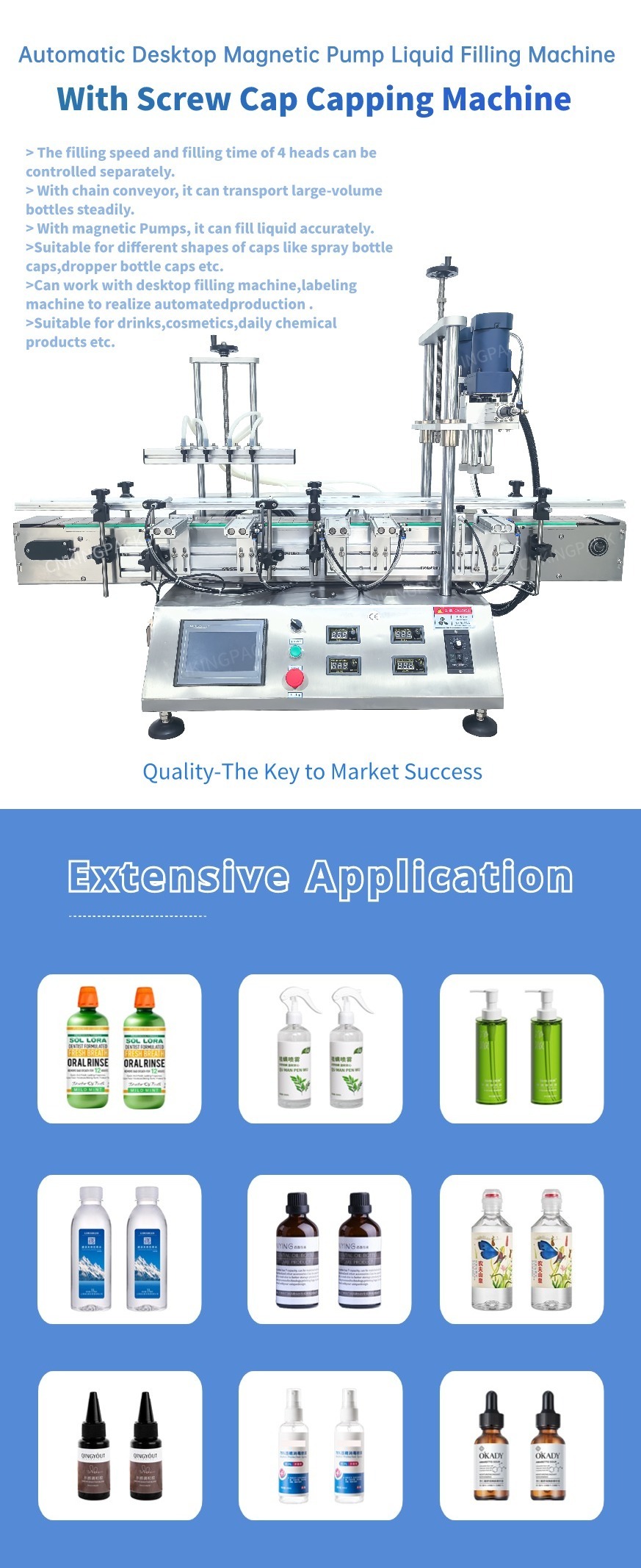

This machine is suitable for filling low-viscosity liquid, such as juice, drink, essential oil, ink, lotion, etc. It can be used in small production line, which can be connected with desktop capping machine and labeling machine, improving working efficiency. The machine can be widely used in medicine, beverage, cosmetic industries.
Description

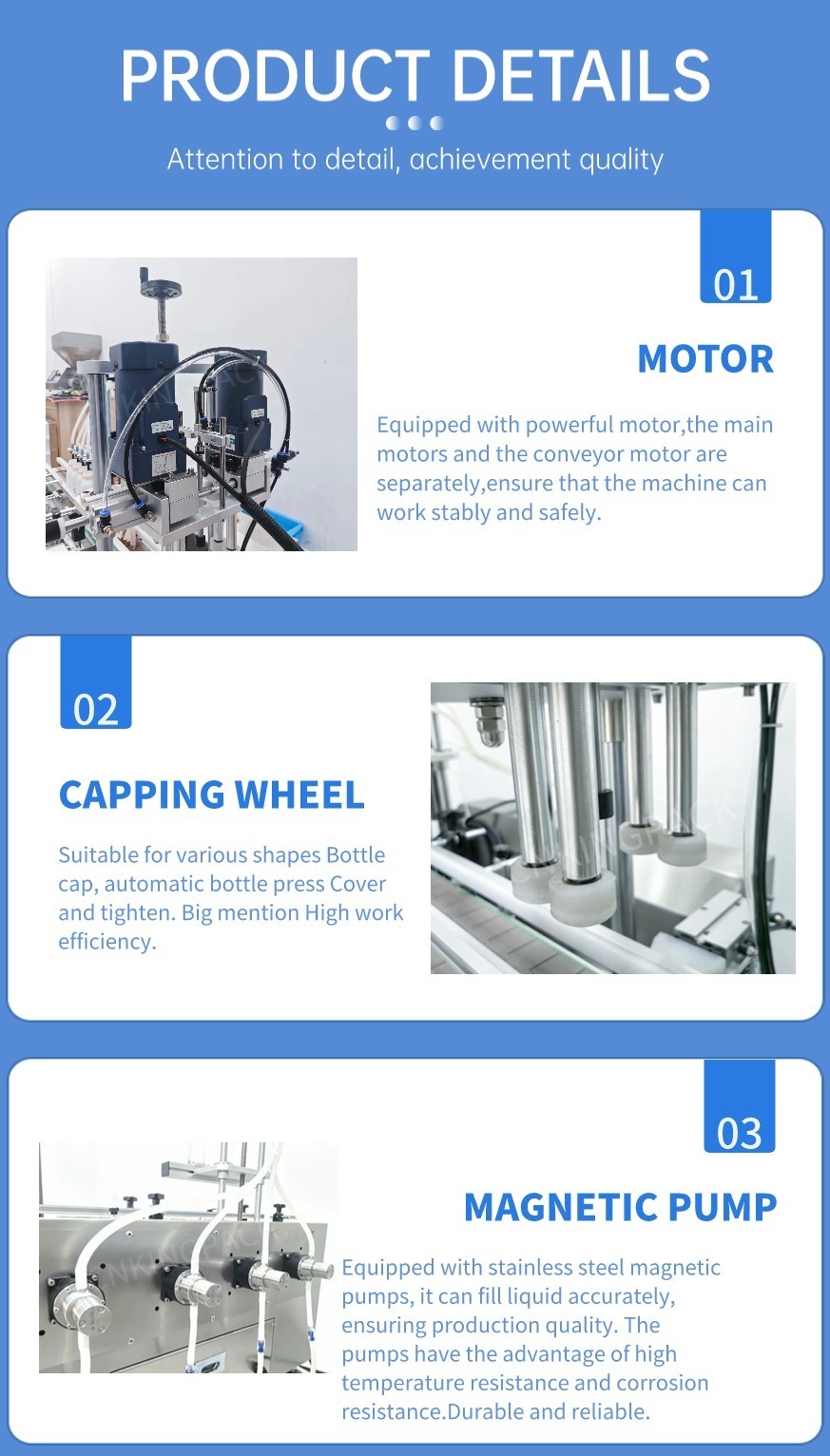

1.With magnetic pump, it has the advantage of high temperature resistance and corrosion resistance. Durable and reliable.
2.With high-quality chain conveyor belt, it can transport large-volume containers smoothly and steadily.
3.With PLC control panel, it is easy to set the working parameters.
4.The filling speed of four nozzles can be controlled separately.
5.With electric eye, it can detect bottles accurately and control the machine to work, intelligent and efficient.
Features
|

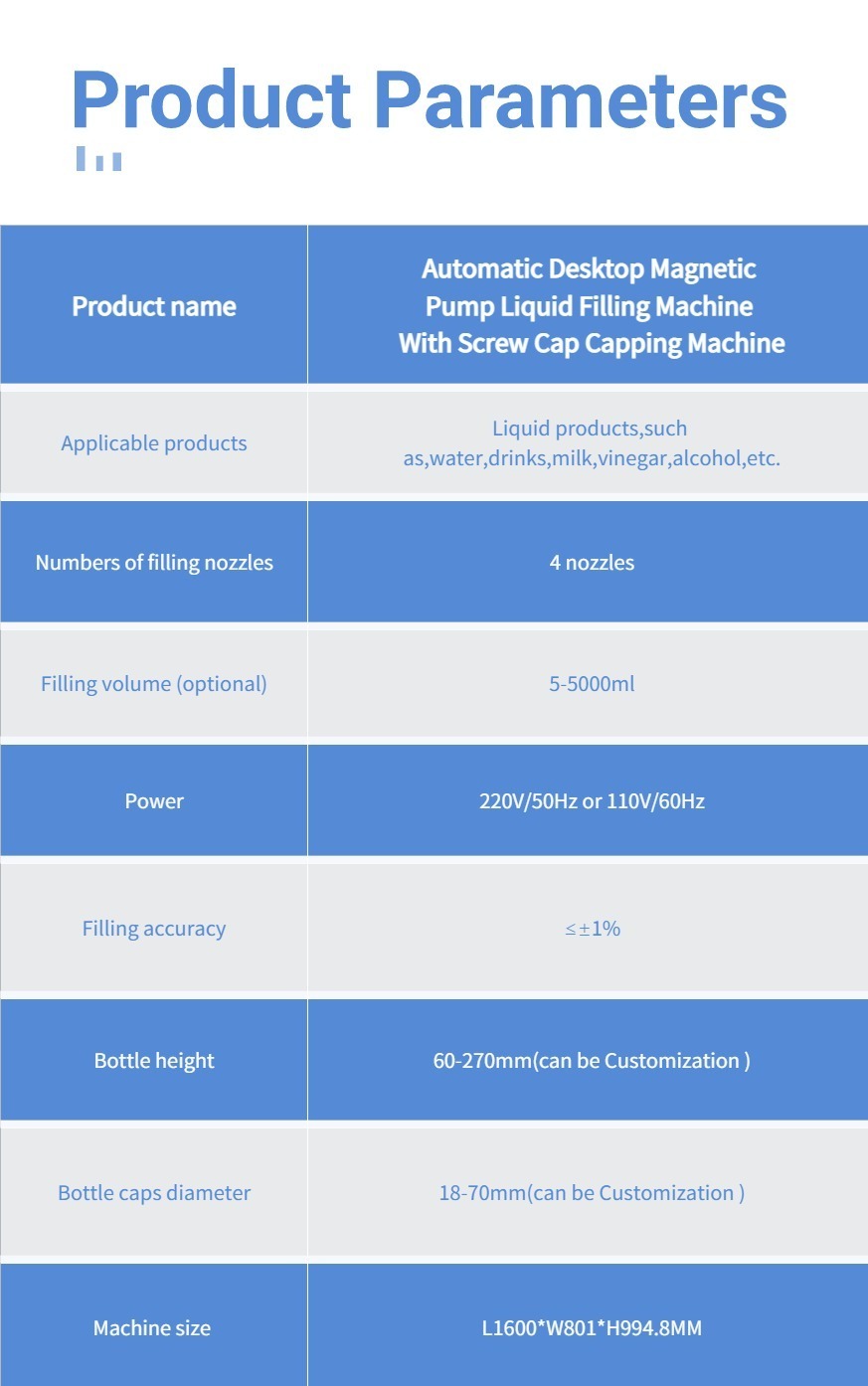

Machine name |
Automatic Desktop magnetic Pump Liquid Filling Machine with screw cap capping machine |
|
Applicable products |
Liquid products,such as,water,drinks,milk,vinegar,alcohol,etc. |
|
Numbers of filling nozzles |
4 nozzles |
|
Filling volume (optional) |
5-5000ml |
|
Filling speed |
10-50 pcs per minute |
|
Power |
220V/50Hz or 110V/60Hz |
|
Filling accuracy |
≤±1% |
|
Bottle height |
60-270mm(can be Customization ) |
|
Bottle caps diameter |
18-70mm(can be Customization ) |
|

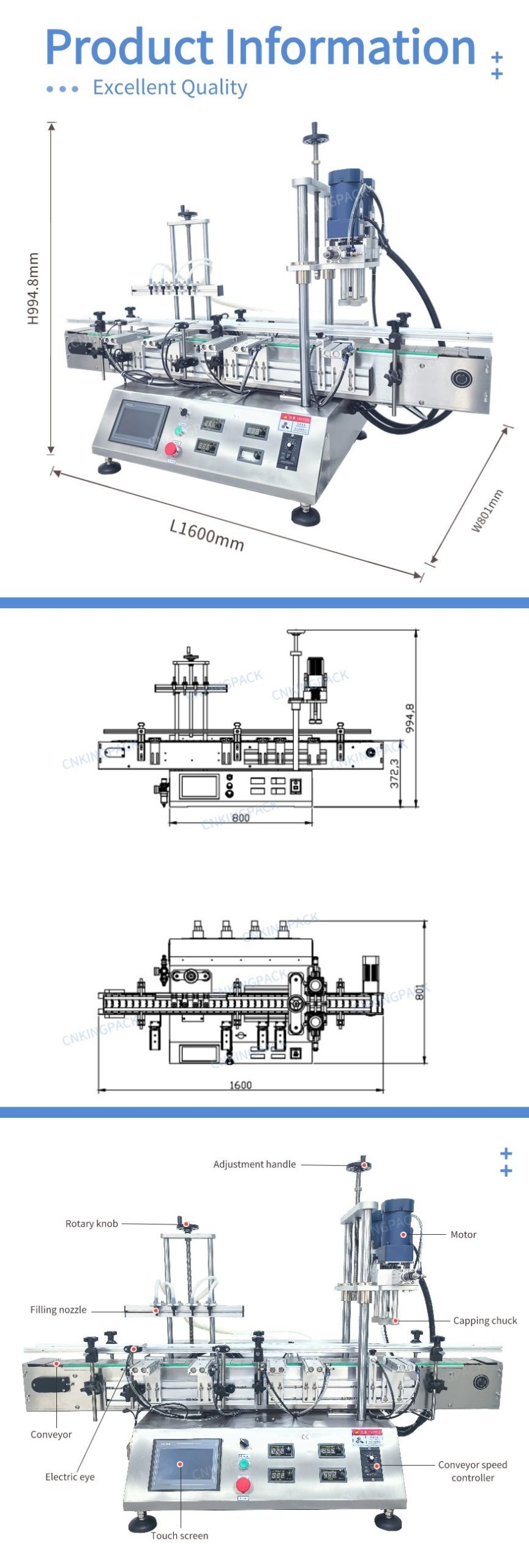

Machine size |
L1600*W801*H994.8MM |
