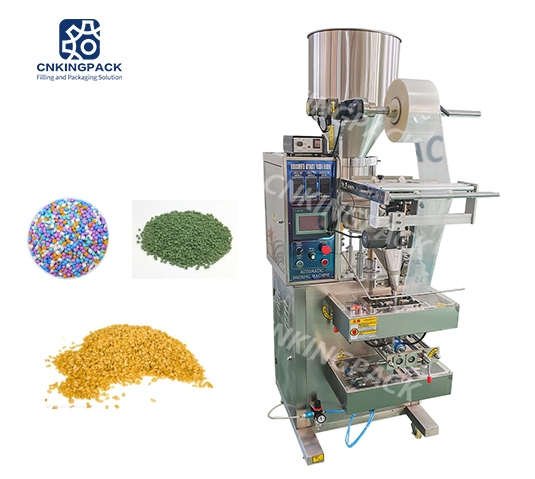

KPL-320SBFK Automatic Granule Packing Machine 4 Side Sealing
Suit for the packing of leaven food, medicine and chemical such particle, short strip and solid product, for example leaven food, shrimp cracker, popcorn, small steamed bread, Farfalle, biscuit, cornmeal, white sugar, dry food, dry fruit, nut, peanut, seeds,green soya bean, pistachio nut, almond, cashew nut, desiccant and washing powder such big metering particle triangle products.
Description
This machine integrates mechanical and electrical functions, two CPU computer control system, large screen LCD, microcomputer control optical tracking correcting system, equipped with high-precision stepper motor, exactly the same position design of each bag, control system of complete synchronization, fixed length, position and speed, automatic fault diagnosis function. Can choose a ribbon type writer or stamp marking device.
Features
- 01Package styles:three sides sealing/central sealing/four sides sealing,etc.
- 02It can finish the function of bag making, metering, feeding, filling, sealing, cutting, counting and printing automatically, can also add the function of easy tearing notch.
- 03With advance micro computer control, step motor control bag length and cursor positioning. Stable and easy to adjust.
- 04With step-less adjustment frequency, can also install different feeding system, so as to pack for particle, liquid,paste and powder products.
Advantage
- 01Low energy consumption, low noise, energy-saving and environmentally friendly, and simple operation.
- 02Film-pulling with stepping motor double belt: less pulling resistance, bag is formed in good shape.
- 03 simpler and easier installation of packing film.
- 04High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
- 05Bag length and packing speed is adjustable on the Touch screen, The bag width is adjustable by changing bag mold.
Applications
This machine is suitable for the packing of leaven food, medicine and chemical such particle, short strip and solid product, for example leaven food, shrimp cracker, popcorn, small steamed bread,biscuit, cornmeal, white sugar, dry food, dry fruit, nut, peanut, seeds,green soya bean, pistachio nut, almond, cashew nut, desiccant and washing powder such big metering particle triangle products.
Parameter Data
Model |
KPL-320SBFK |
Max Film Width |
320mm |
Bag Length |
30-180mm |
Bag Width |
15-150mm |
Measuring Range |
50-250ml |
Packing Speed |
30-70 Bags/Min |
Packing Film Sickness |
0.04-0.07mm |
Power |
220V/50Hz/2.2kw |
Machine Weight |
300kg |
Packing Material |
OPP/CPP.OPP/CE.MST/PE/PET/PE |
Film Roll Diameter |
320mm |
Machine Size |
1000*800*1950mm |
