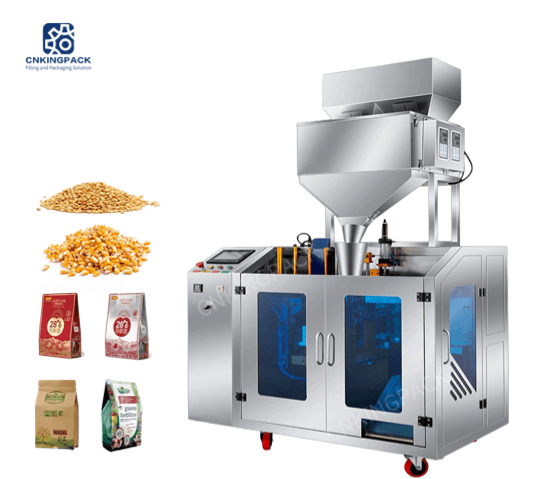

Automatic Pre-made Bag Packing Machine for Granular

This packing machine suitable for packing of various of granule, slice , stripe , such as potato chips , shrimp chip,peanut. popcorn, seed and sugar Etc .

Description

This granular packing machine is used to snack food, hardware, salt, MSG, chicken essence, seeds, rice, pesticide, fertilizer rice, veterinary medicine, feed premix, additives, and other granular quantitative packaging.

Features

01Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
02Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
03External film releasing mechanism: simpler and easier installation of packing film.
04Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .

Advantage

  • 01Equipped with stable filler.
  • 02High filling accuracy, fast packing speed, easy to operate and adjust.
  • 03Liner filling and sealing.
  • 04Stainless Steel Construction.

Applications

Suitable for packing of various of granule, slice , stripe , such as potato chips , shrimp chip,peanut. popcorn, seed and sugar Etc .

Parameter Data

Machine size 133*75*210cm 155*75*210cm
Packing range 5-1000g 5-2000g
Voltage 220V/50HZ/1500W 220V/50HZ/1500W
Machine weight 350kg 350kg
Packing speed 2-25bag/min 2-25bag/min
Bag size L:8-30cm L:12-40cm
W:6-20cm W:12-30cm
Number of working stations 1-2Nos 1-2Nos
Air consumption <1.0m3/min <1.0m3/min
