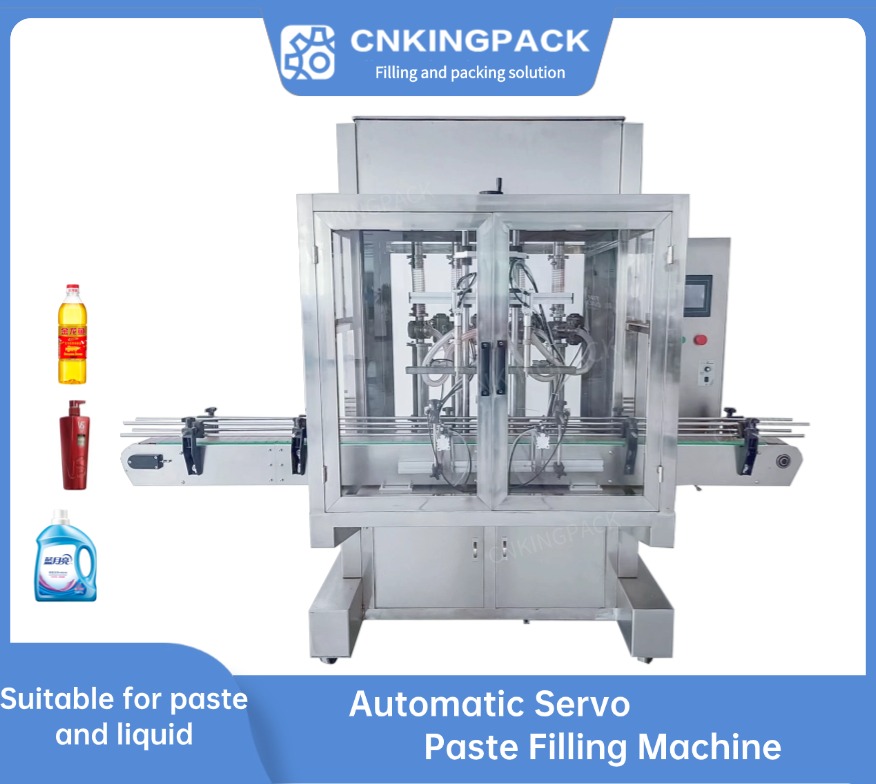

Automatic Servo paste filling machine
This machine is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.
Description
This machine is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.
Features

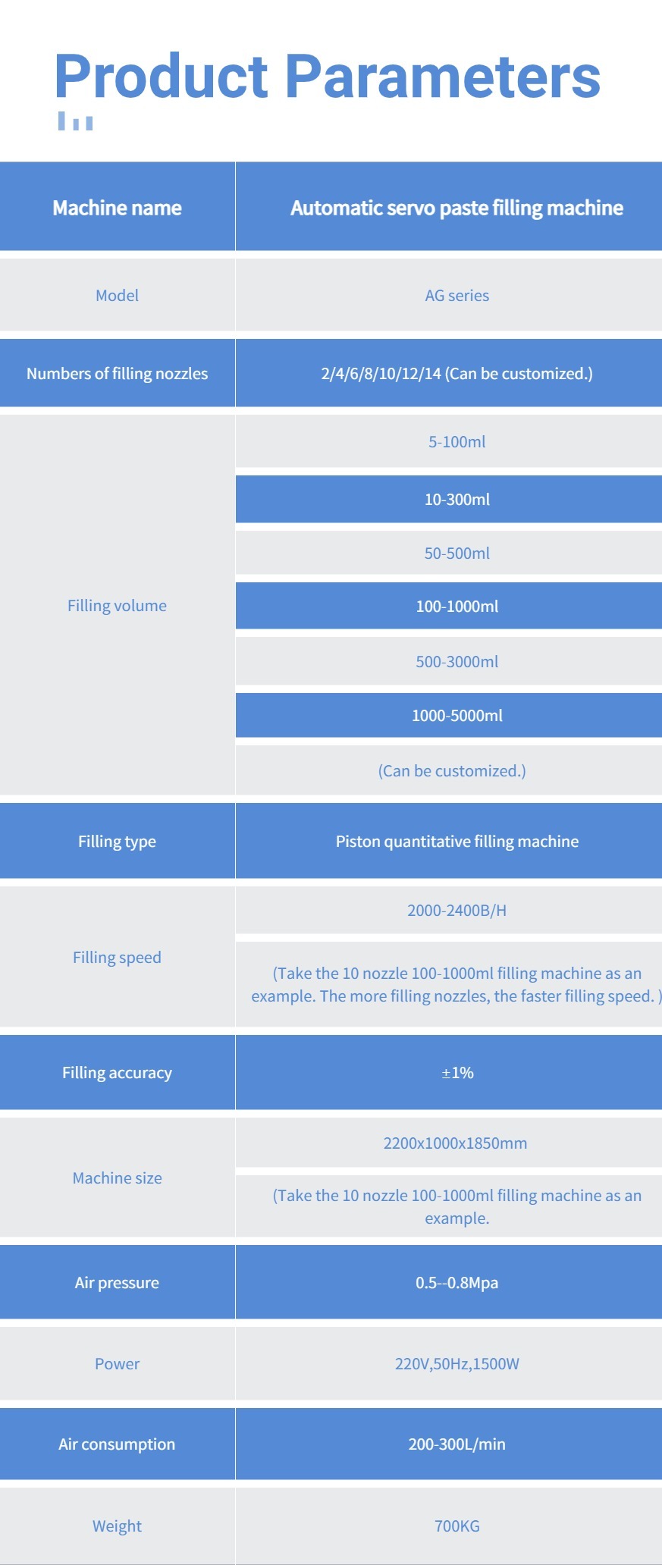

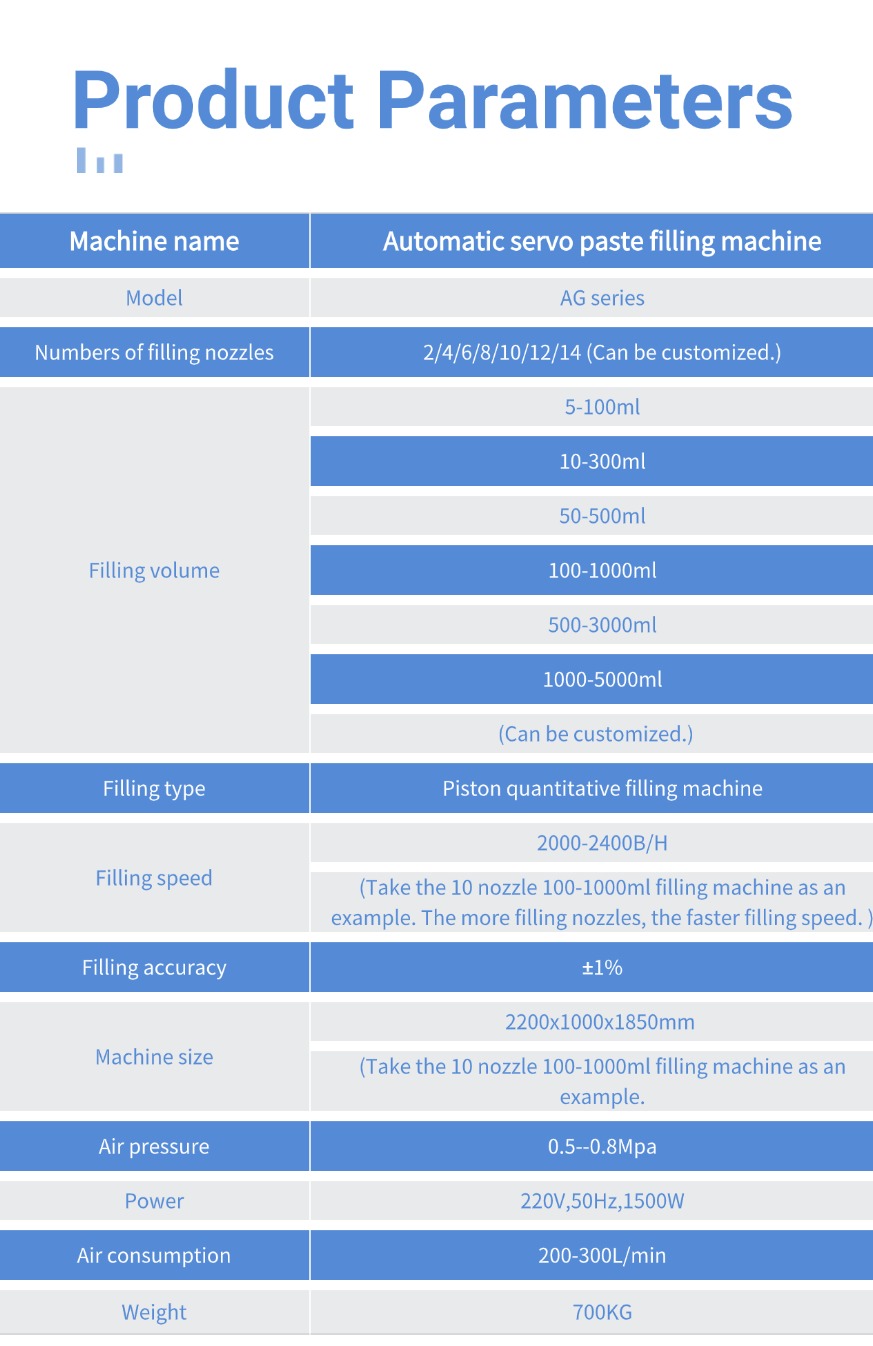

| Machine name | Automatic servo paste filling machine |
| Model | AG series |
| Numbers of Filling nozzles | 2/4/6/8/10/12/14 (Can be customized.) |
| Filling volume | 5-100ml |
| 10-300ml | |
| 50-500ml | |
| 100-1000ml | |
| 500-3000ml | |
| 1000-5000ml | |
| Filling type | Piston quantitative filling machine |
| Filling speed | 2000-2400B/H |
| (Take the 10 nozzle 100-1000ml filling machine as an example. The more filling nozzles, the faster filling speed. ) | |
| Filling accuracy | ±1% |

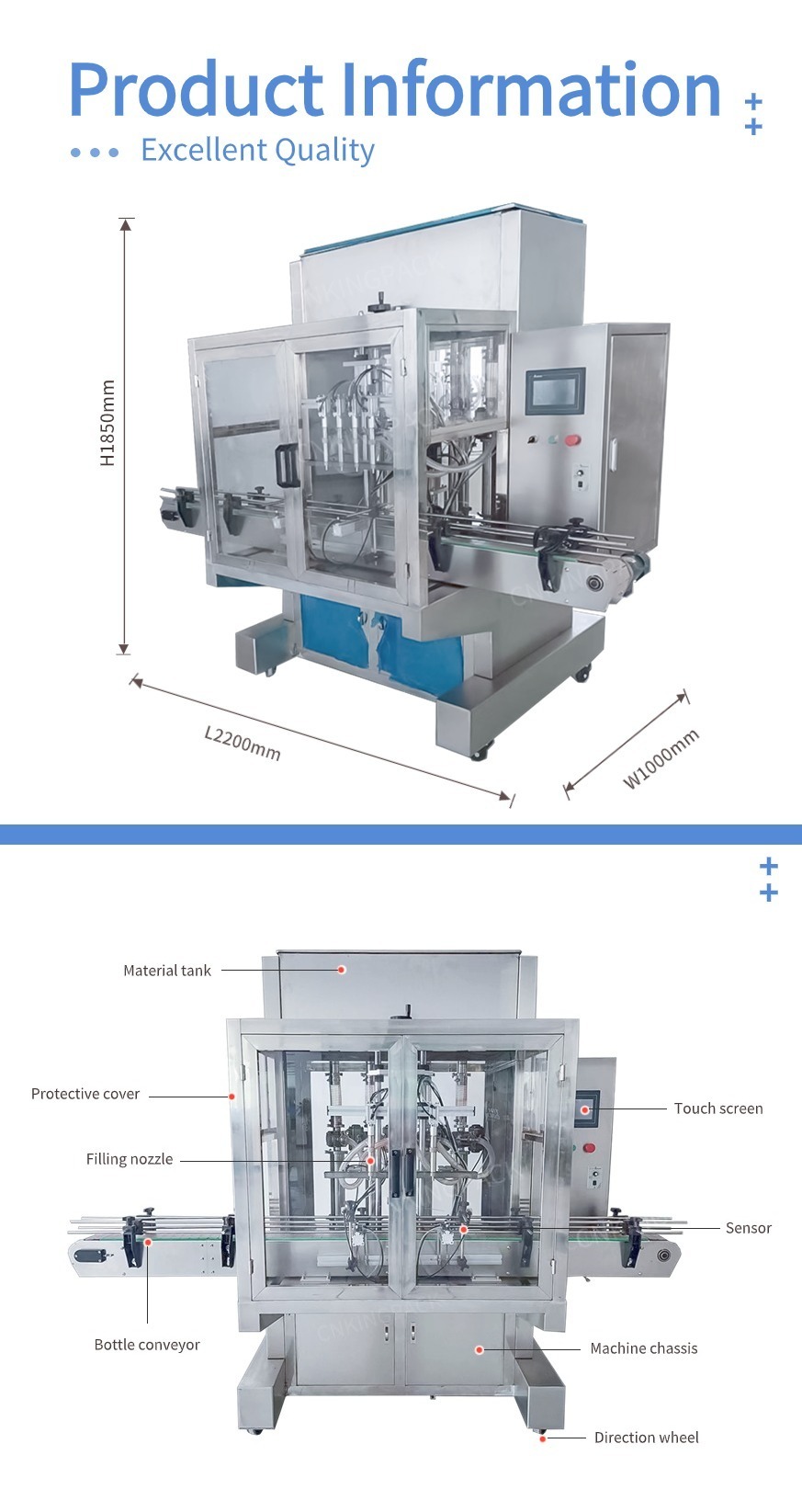

| Machine size | 2200x1000x1850mm |
| (Take the 10 nozzle 100-1000ml filling machine as an example. | |
| Air pressure | 0.5--0.8Mpa |
| Power | 220V,50Hz,1500W |
| Air consumption | 200-300L/min |
| Weight | 700KG |
