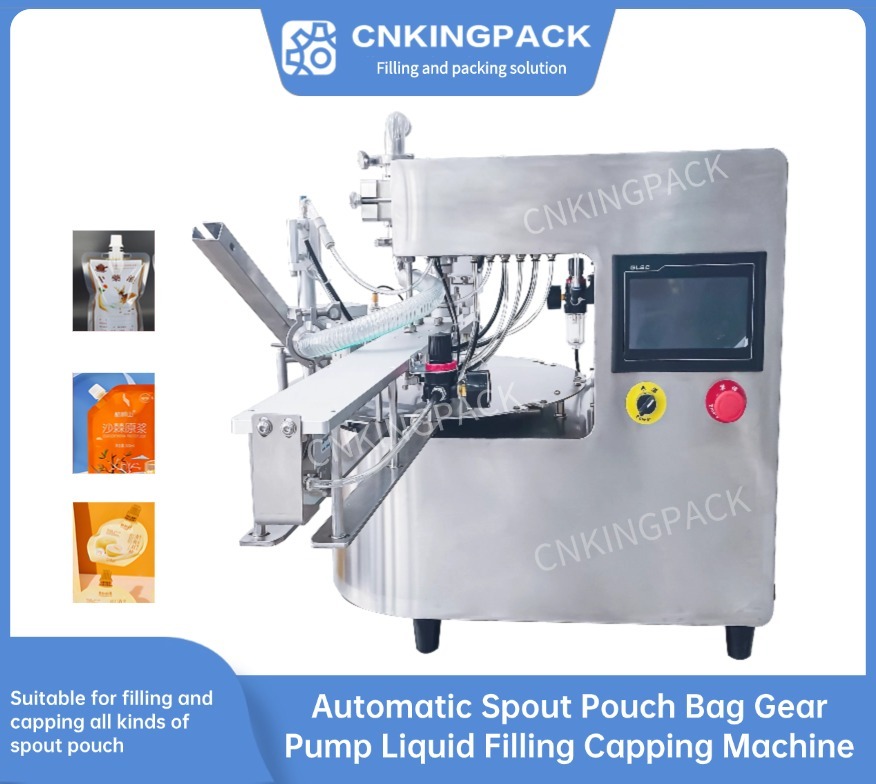

Automatic Spout Pouch Bag Gear Pump Liquid Filling Capping Machine

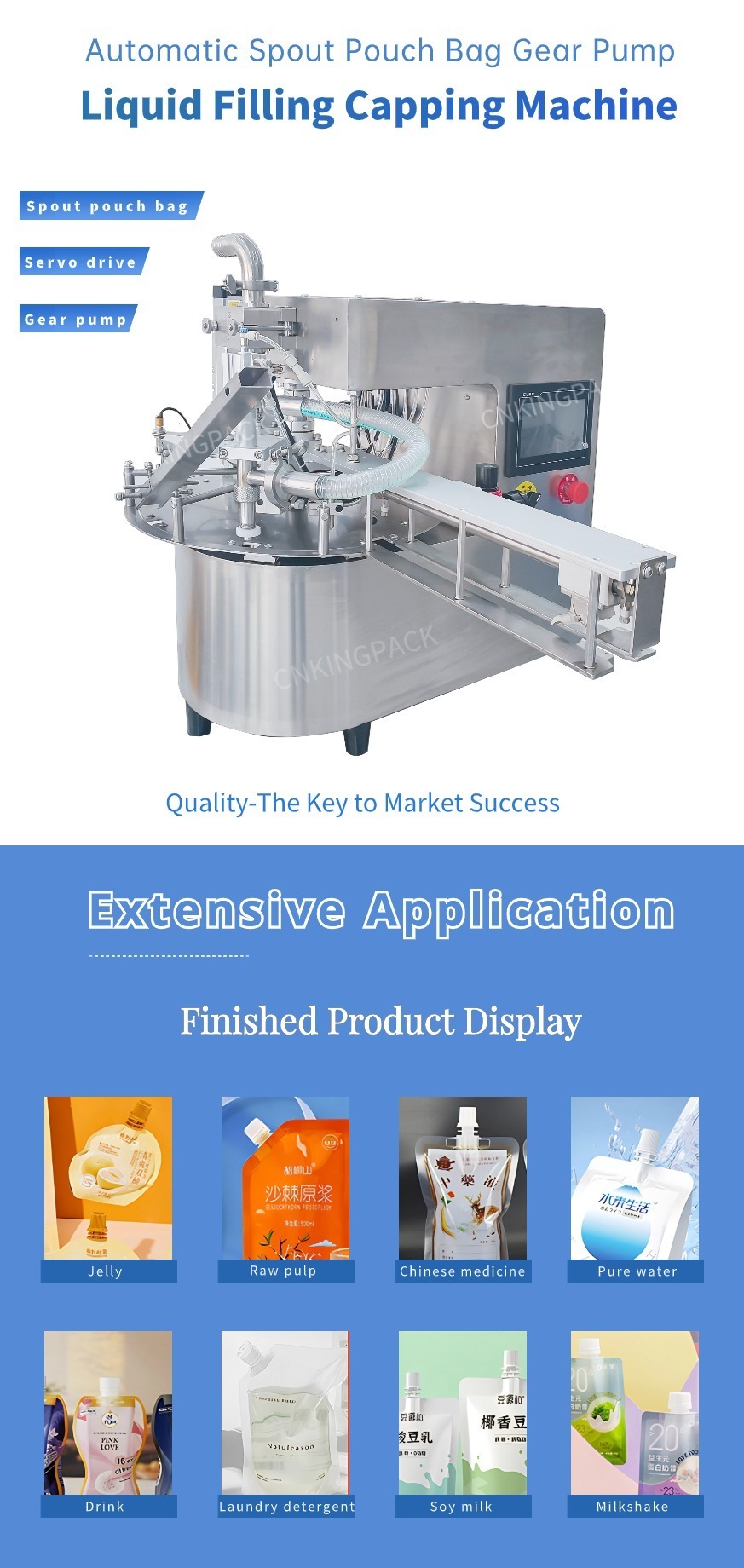

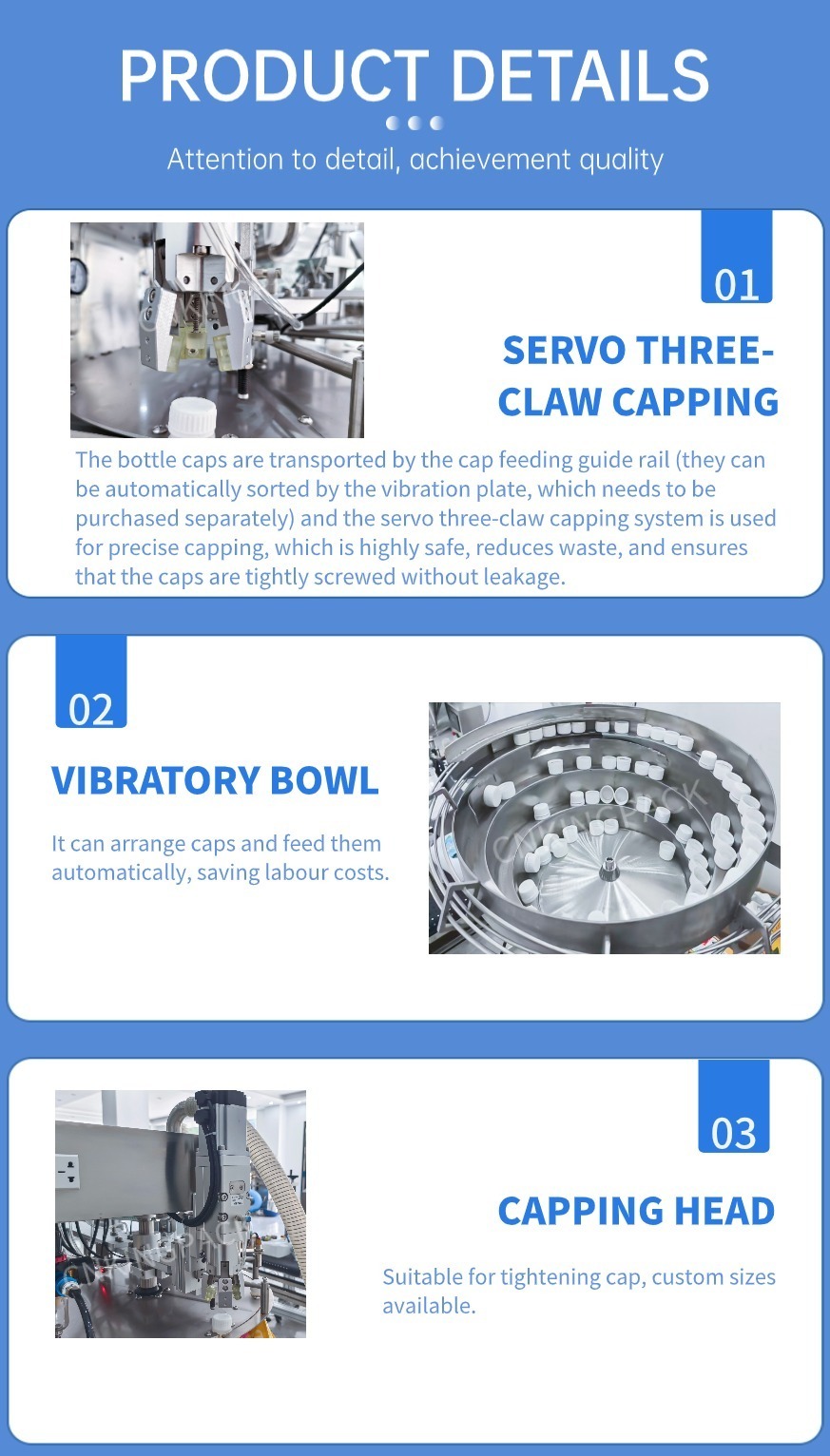

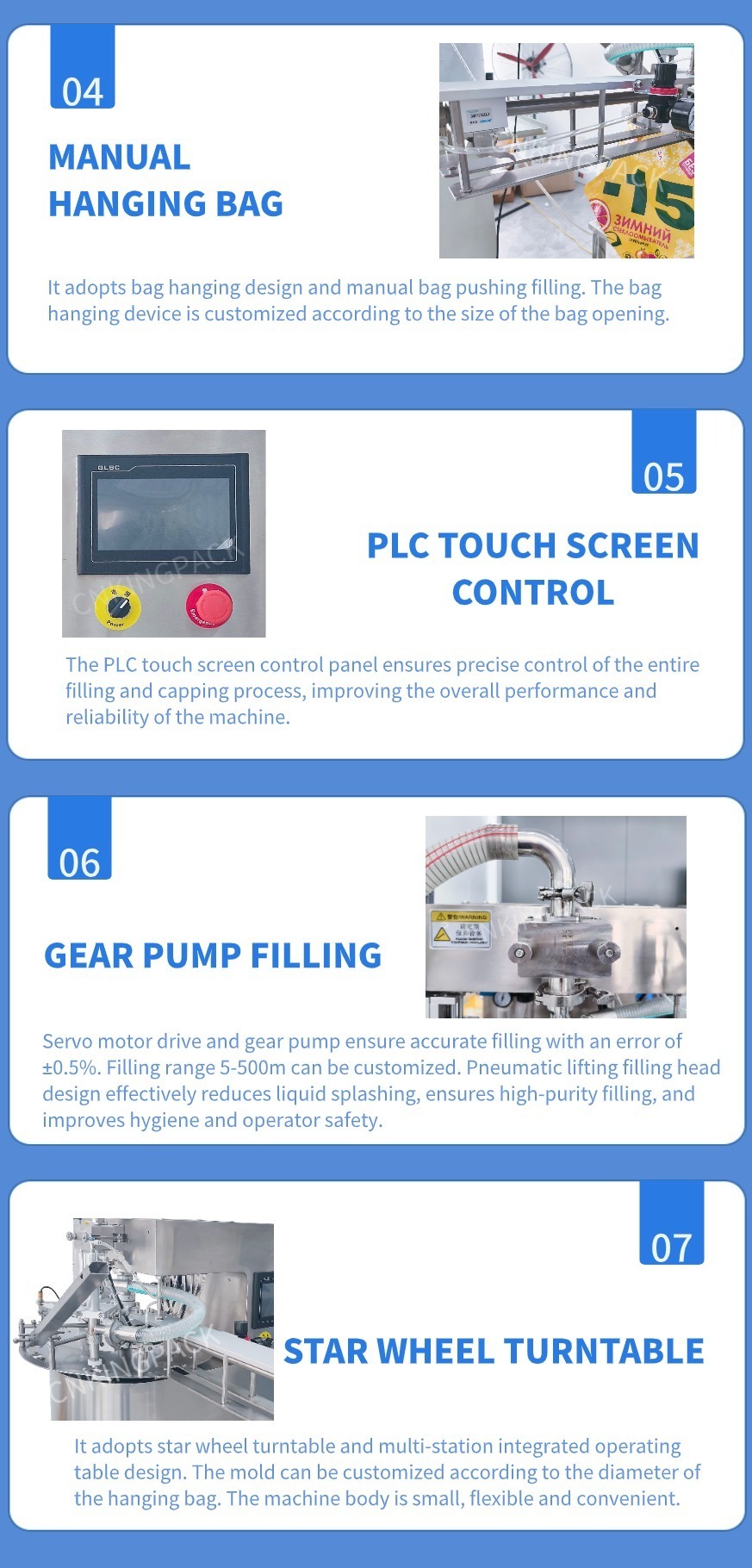

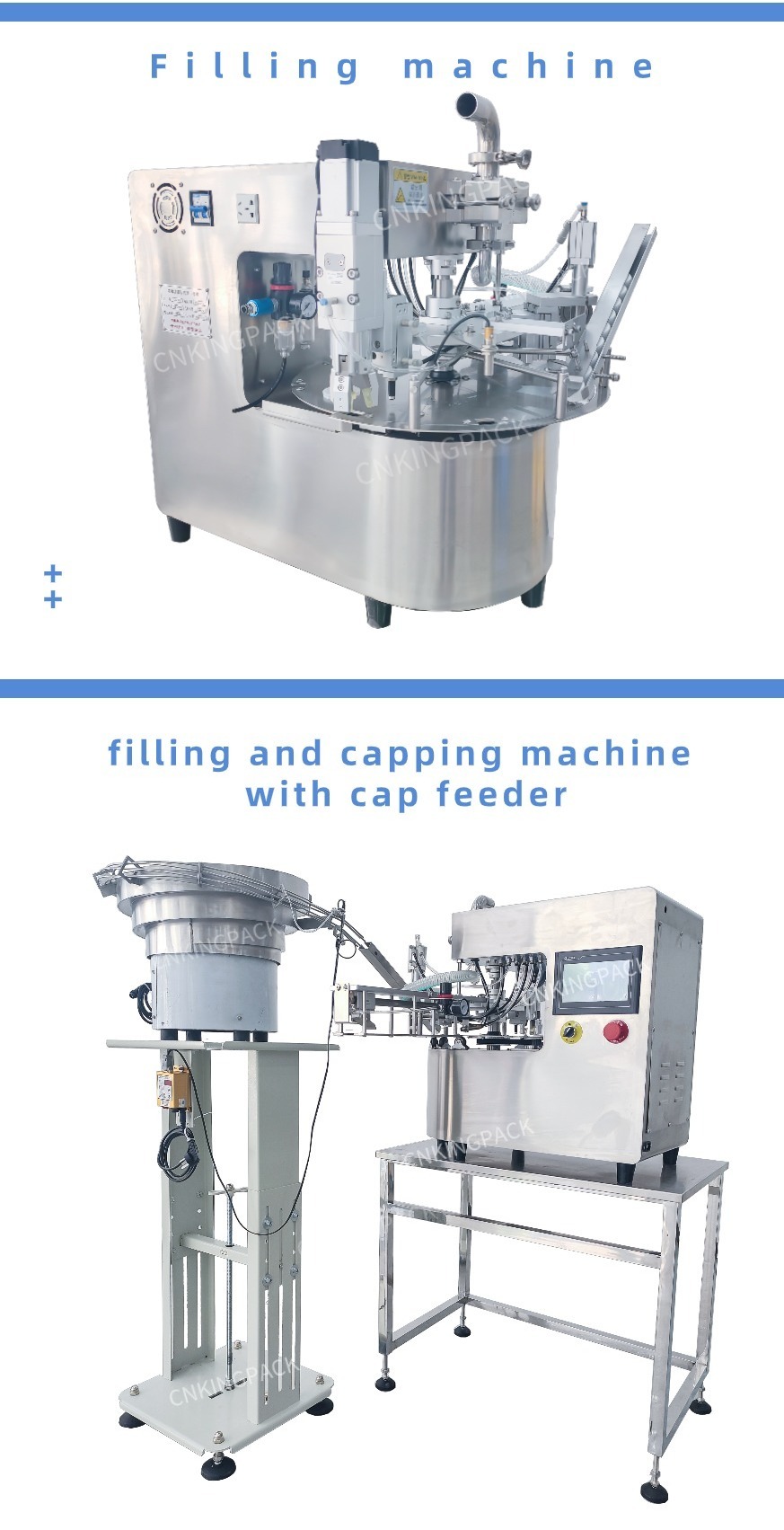

This desktop filling capping machine is designed for filling liquid into spout pouch bag like laundry detergent, essence,juice.It features a piston pump for accurate and consistent filling,a built-in vibratory bowl feeder for automatic feeding,and a star wheel for processing filling and cap screwing.The compact design makes it easy to use and maintain, while the high-quality construction ensures reliable performance, different filling range can be chosen as need.It is widely used in food,daily chemical industries.

Description

lt is in small size and can fill air, fill liquid, feed and tighten caps automatically,saving labor cost.The machine can be customized according to your products.

Features

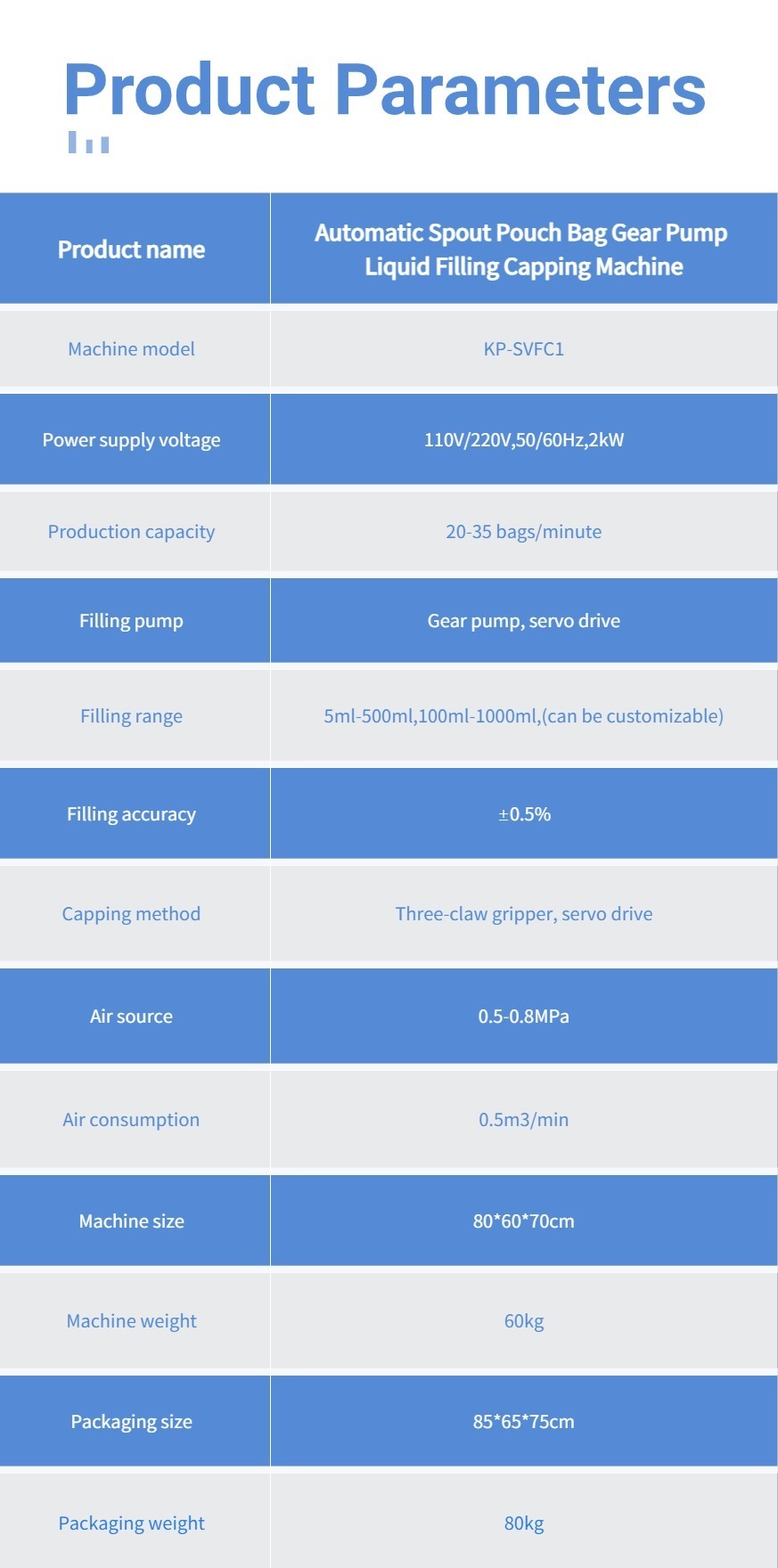

Machine model

KP-SVFC1

Power supply voltage

110V/220V,50/60Hz,2kW

Production capacity

20-35 bags/minute

Filling pump

Gear pump, servo drive

Filling range

5ml-500ml,100-1000ml(can be customizable)

Filling accuracy

±0.5%

Capping method

Three-claw gripper, servo drive

Air source

0.5-0.8MPa

Air consumption

0.5m3/min

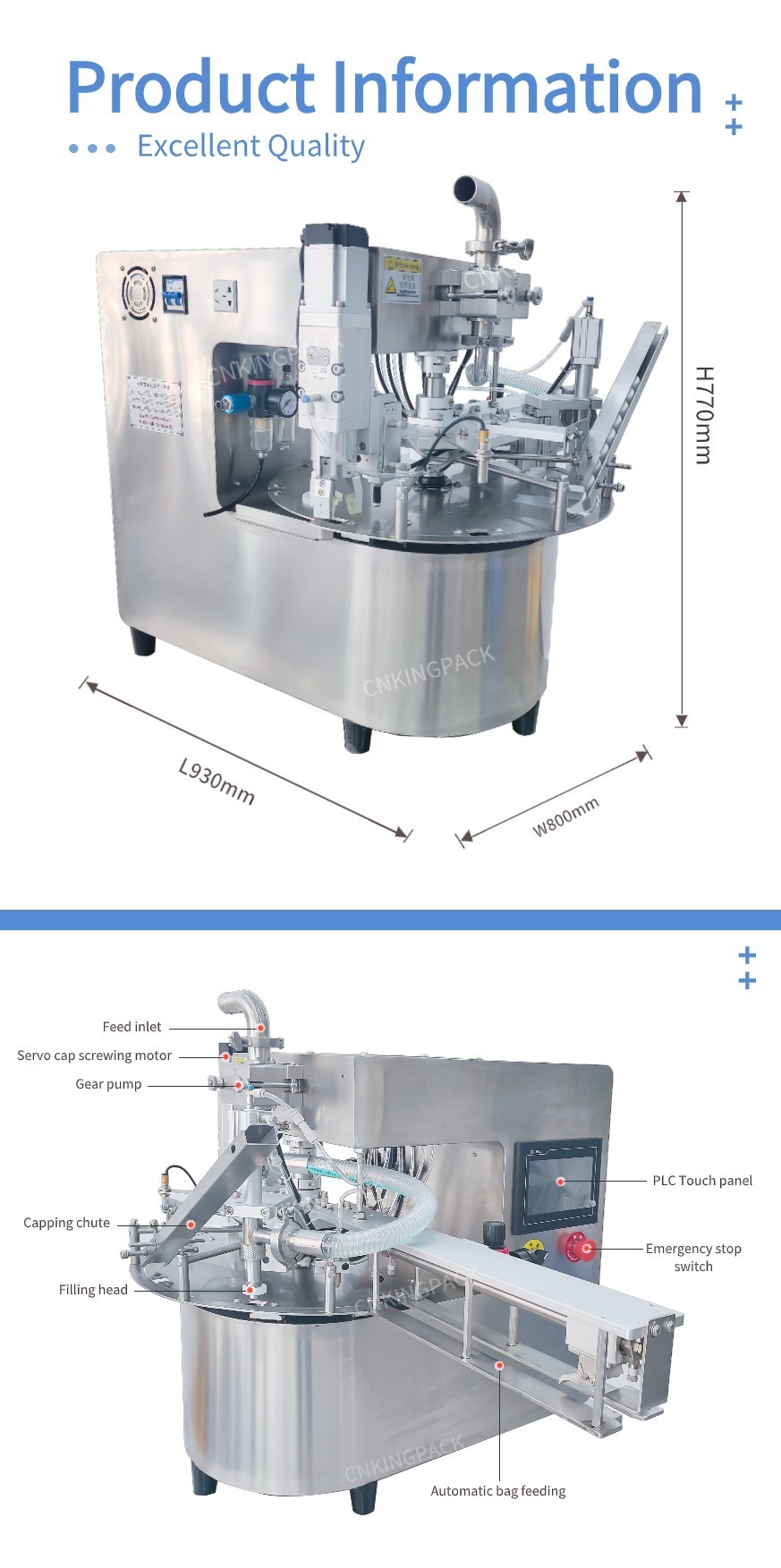

Machine size

80*60*70cm

Machine weight

60kg

Packaging size

85*65*75cm

Packaging weight

80kg
