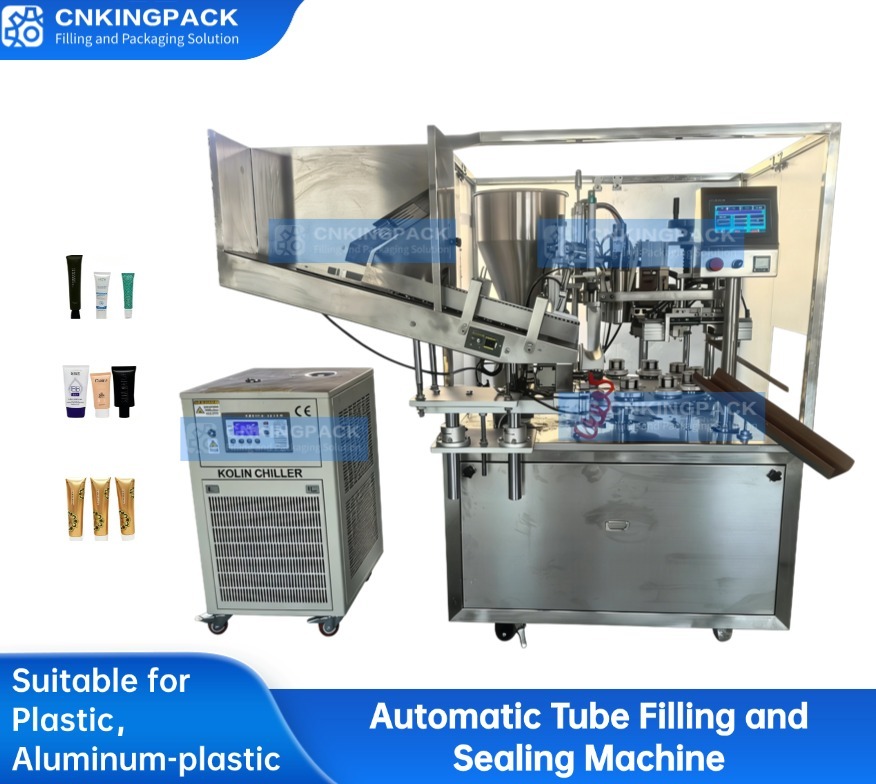

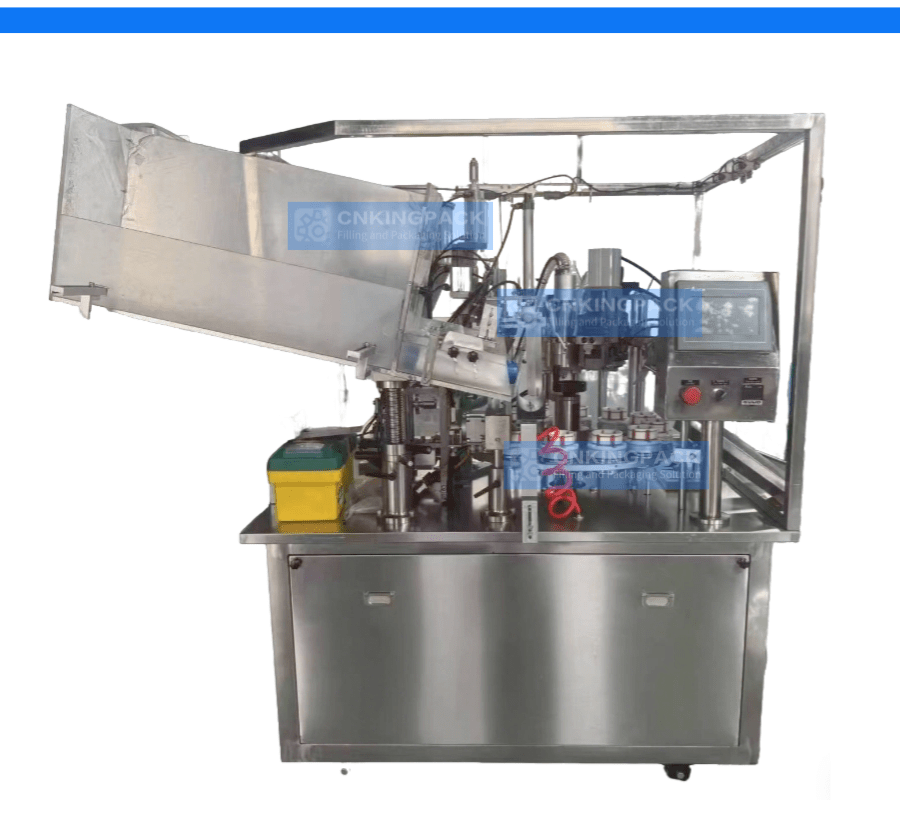

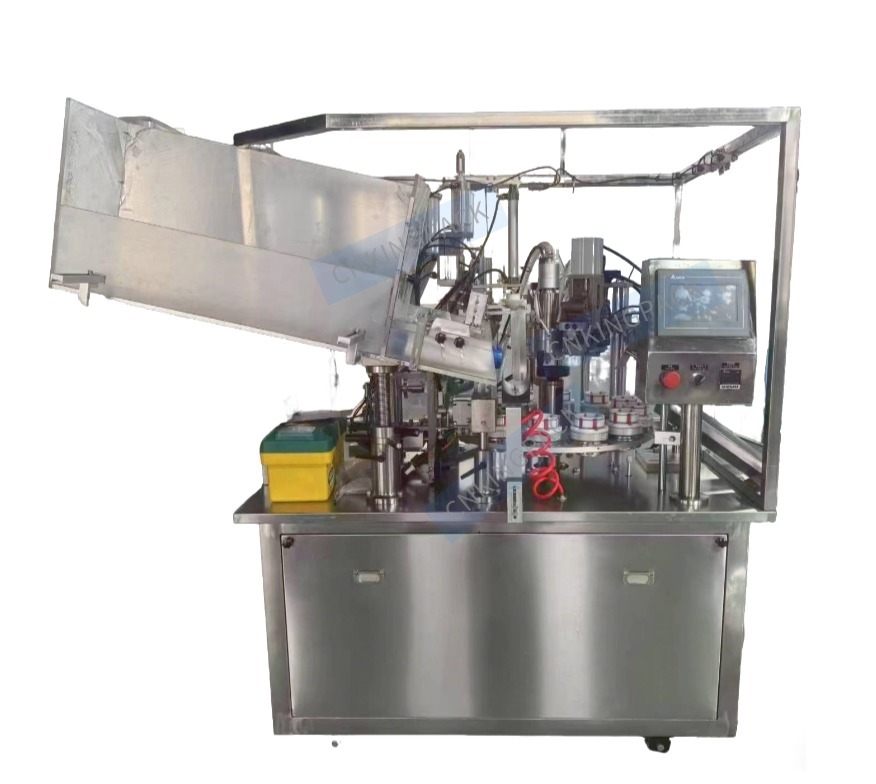

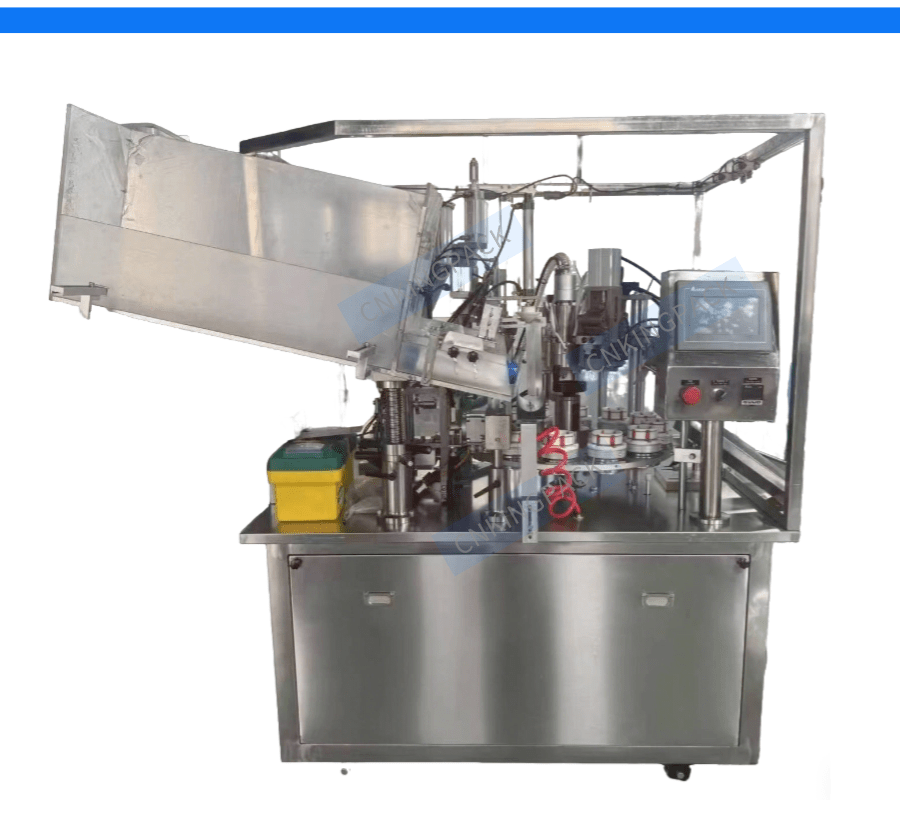

Automatic Tube Filling and Sealing Machine

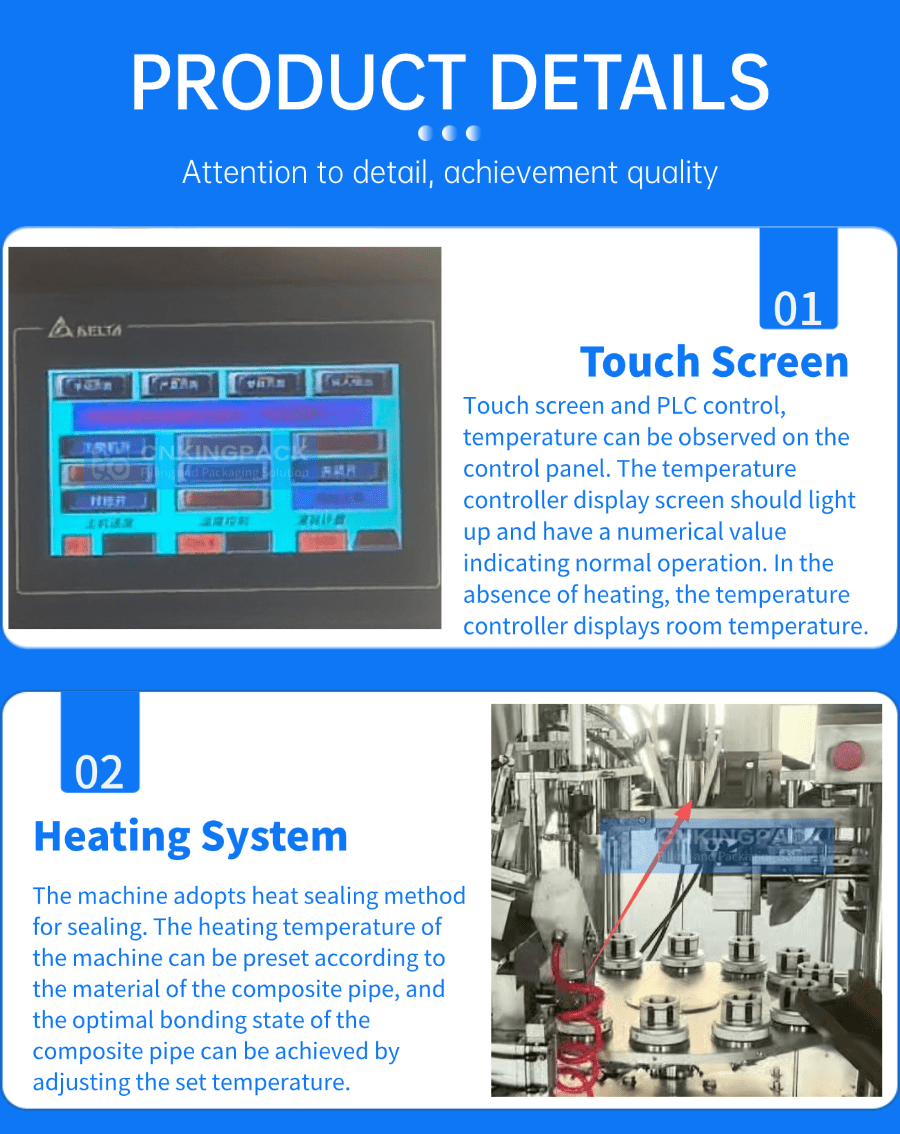

The filling and sealing machine adopts hot air heating method and PLC program control. The sealing appearance is beautiful, neat, the sealing is firm, and the stability is good. This product is suitable for filling, sealing, date printing, and cutting of various specifications of plastic hoses and aluminum-plastic composite hoses, and is widely used in industries such as daily chemical, pharmaceutical, food, and chemical. To meet the filling requirements of different viscosities, different specifications of filling heads can be matched.
Description
The filling and sealing machine adopts hot air heating method and PLC program control. The sealing appearance is beautiful, neat, the sealing is firm, and the stability is good. This product is suitable for filling, sealing, date printing, and cutting of various specifications of plastic hoses and aluminum-plastic composite hoses, and is widely used in industries such as daily chemical, pharmaceutical, food, and chemical. To meet the filling requirements of different viscosities, different specifications of filling heads can be matched.
Features

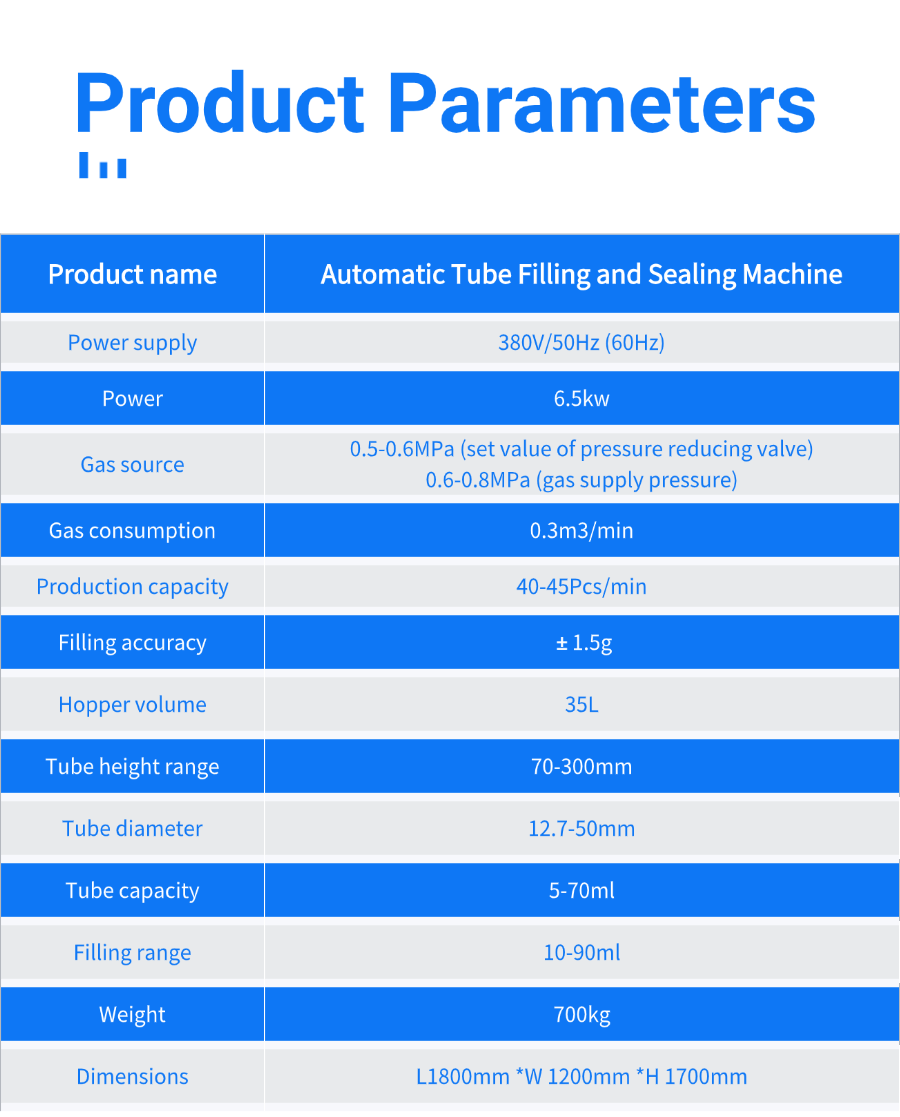

| Product name | Automatic Tube Filling and Sealing Machine |
| Power supply | 380V/50Hz (60Hz), |
| Power | 6.5kw |
| Gas source | 0.5-0.6MPa (set value of pressure reducing valve) 0.6-0.8MPa (gas supply pressure) |
| Gas consumption | 0.3m3/min |
| Production capacity | 40-45Pcs/min |
| Filling accuracy | ± 1.5g |
| Hopper volume | 35L |
| Tube height range | 70-300mm |
| Tube diameter | 12.7-50mm |
| Tube capacity | 5-70ml |
| Filling range | 10-90ml |
| Weight | 700kg |

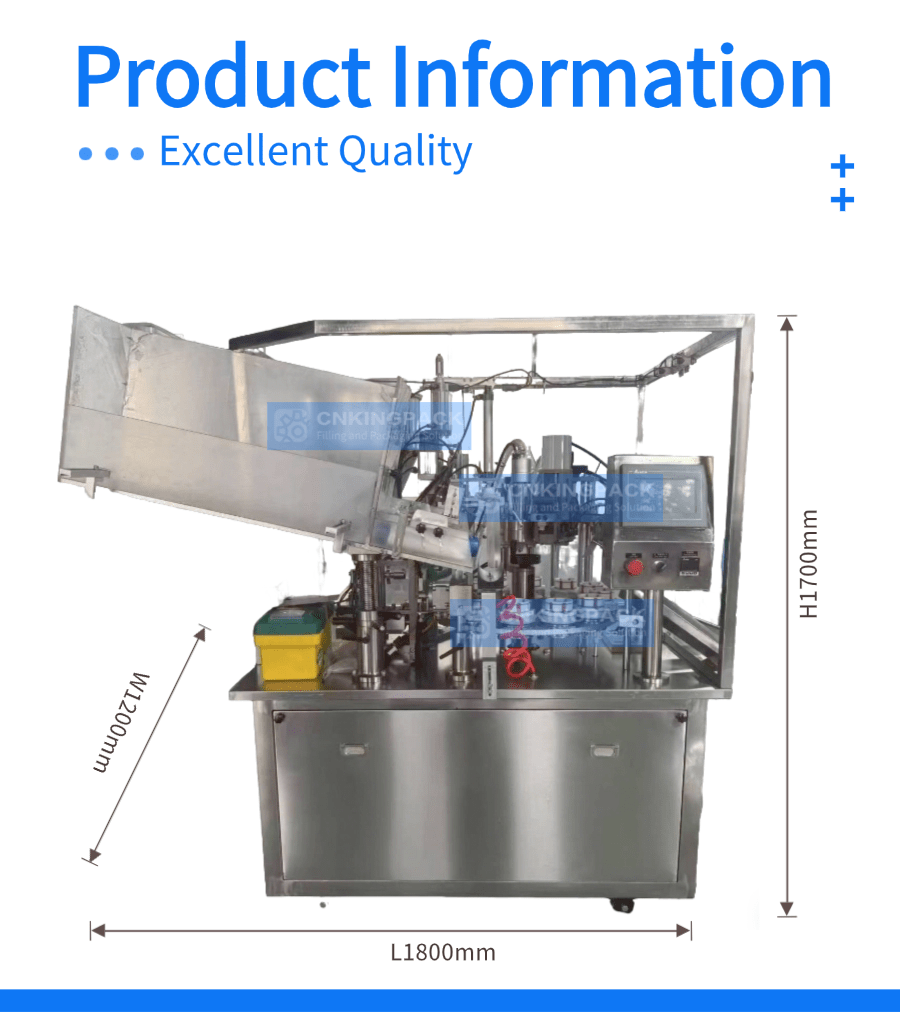

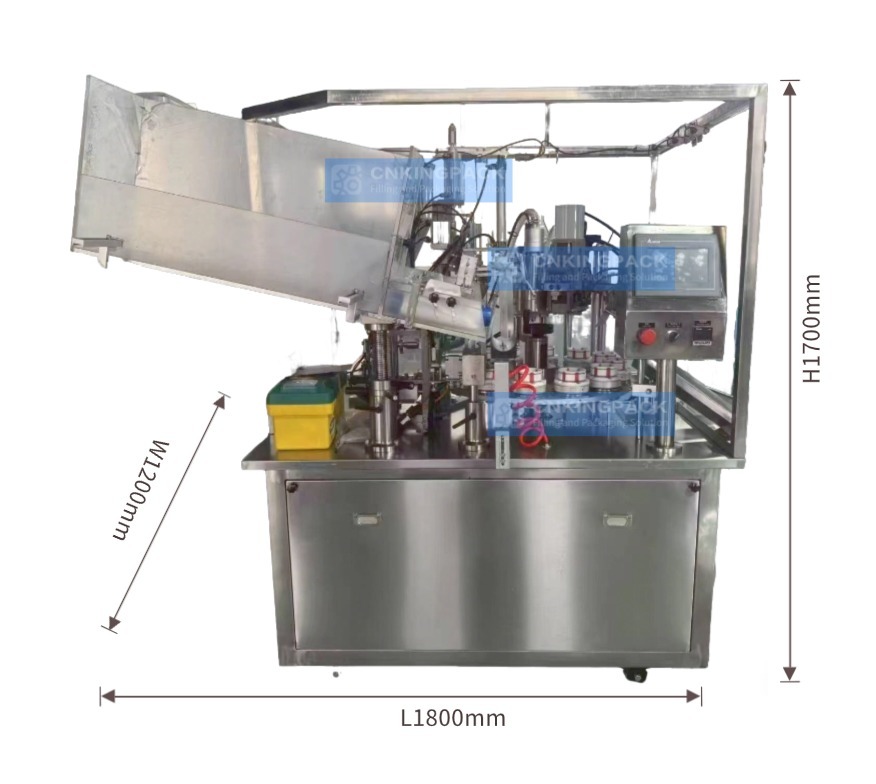

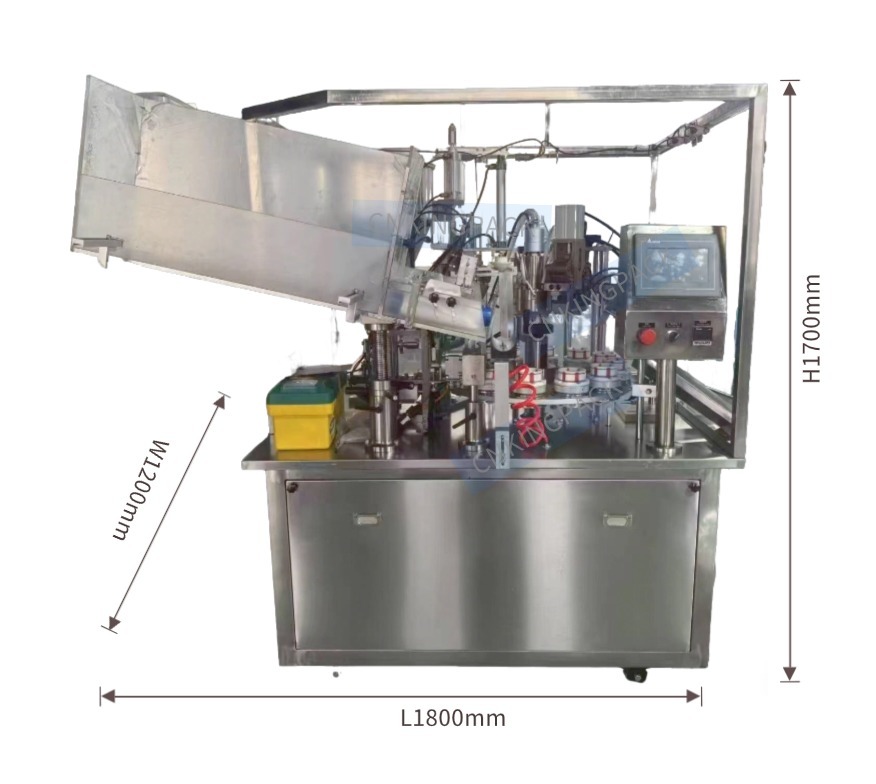

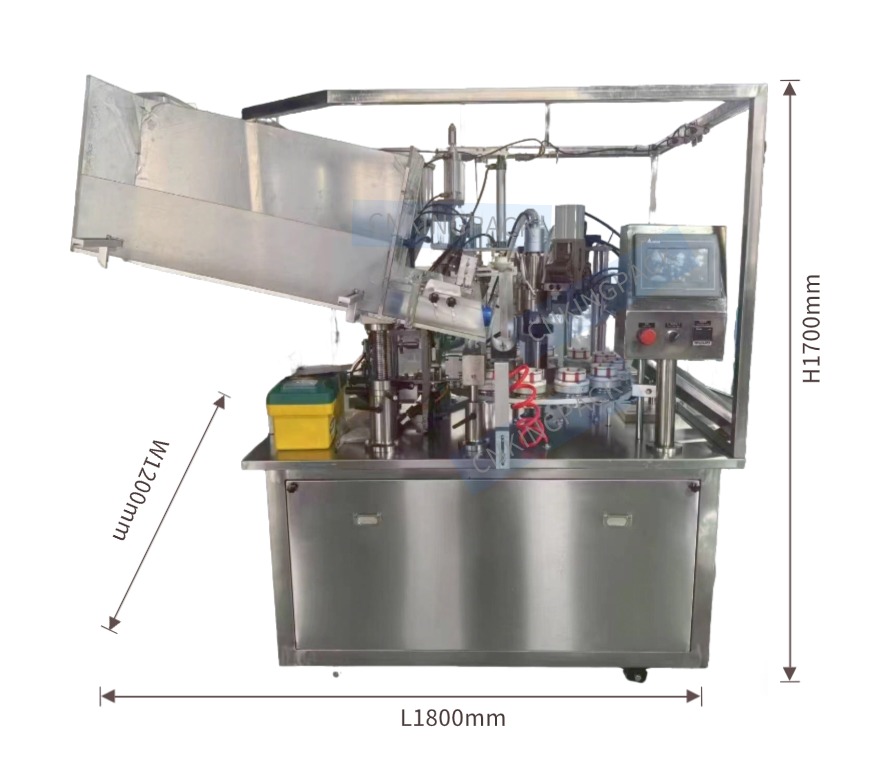

| Dimensions | L1800mm *W 1200mm *H 1700mm |
