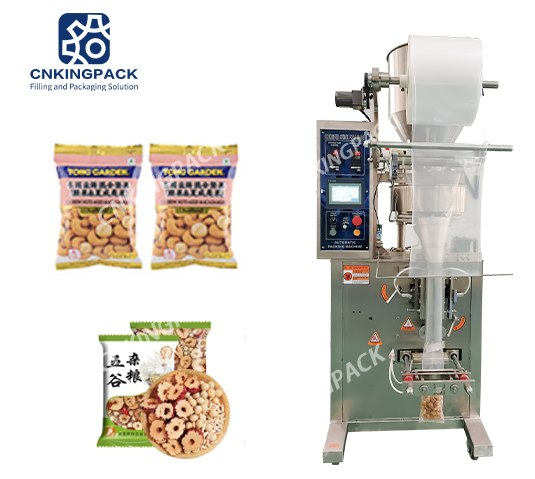

KPL-320BFK Cheaper Type Automatic Granular Packing Machine Cebtral Back Sealing

Suit for the packing of leaven food, medicine and chemical such particle, short strip and solid product, for example leaven food, shrimp cracker, popcorn, small steamed bread, Farfalle, biscuit, cornmeal, white sugar, dry food, dry fruit, nut, peanut, seeds,green soya bean, pistachio nut, almond, cashew nut, desiccant and washing powder such big metering particle triangle products.

Description

This machine integrates mechanical and electrical functions, two CPU computer control system, large screen LCD, microcomputer control optical tracking correcting system, equipped with high-precision stepper motor, exactly the same position design of each bag, control system of complete synchronization, fixed length, position and speed, automatic fault diagnosis function. Can choose a ribbon type writer or stamp marking device.

Features

  • 01Package styles: Central back sealing
  • 02It can finish the function of bag making, metering, feeding, filling, sealing, cutting, counting and printing automatically, can also add the function of easy tearing notch.
  • 03With advance micro computer control, step motor control bag length and cursor positioning. Stable and easy to adjust.
  • 04With step-less adjustment frequency, can also install different feeding system, so as to pack for particle, liquid,paste and powder products.

Advantage

  • 01Low energy consumption, low noise, energy-saving and environmentally friendly, and simple operation.
  • 02Film-pulling with stepping motor double belt: less pulling resistance, bag is formed in good shape.
  • 03 simpler and easier installation of packing film.
  • 04High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
  • 05Bag length and packing speed is adjustable on the Touch screen, The bag width is adjustable by changing bag mold.

Applications

This machine is suitable for the packing of leaven food, medicine and chemical such particle, short strip and solid product, for example leaven food, shrimp cracker, popcorn, small steamed bread,biscuit, cornmeal, white sugar, dry food, dry fruit, nut, peanut, seeds,green soya bean, pistachio nut, almond, cashew nut, desiccant and washing powder such big metering particle triangle products.

Parameter Data

Model

KPL-320BFK

Max Film Width

320mm

Bag Length

30-180mm

Bag Width

15-150mm

Measuring Range

50-250ml

Packing Speed

30-70 Bags/Min

Packing Film Sickness

0.04-0.07mm

Power

220V/50Hz/2.2kw

Machine Weight

280kg

Packing Material

OPP/CPP.OPP/CE.MST/PE/PET/PE

Film Roll Diameter

320mm

Machine Size

1000*800*1950mm
