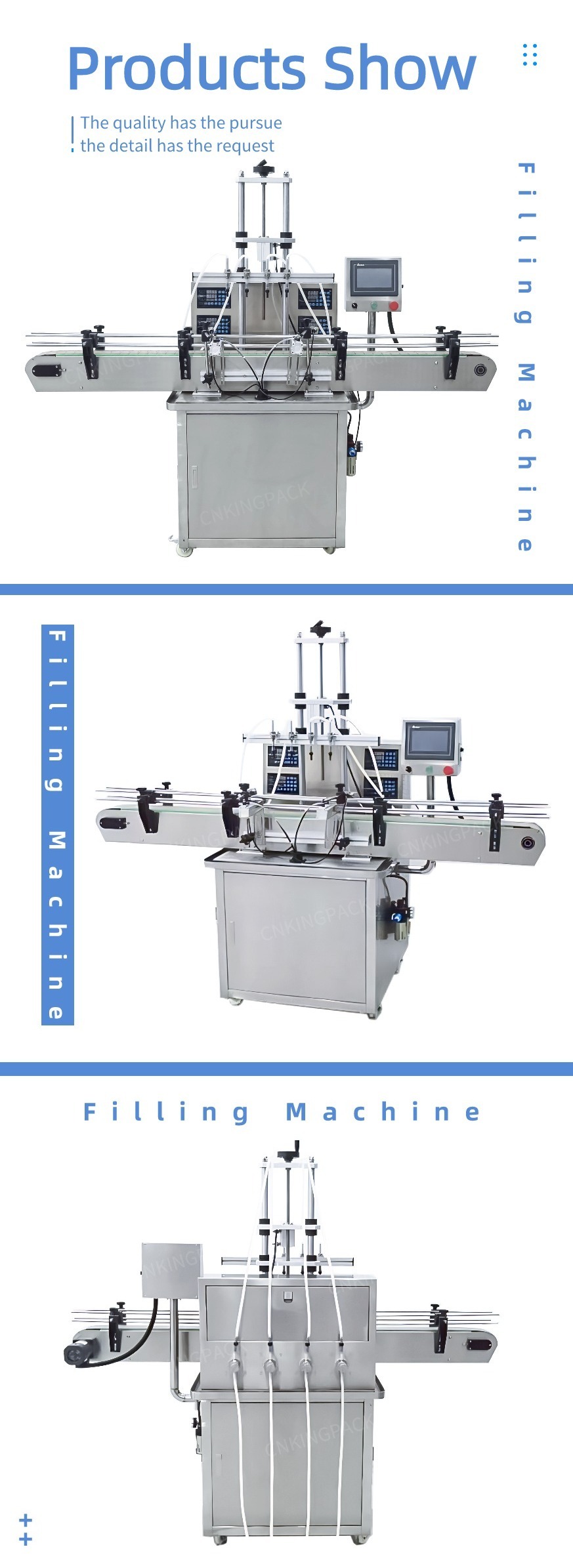

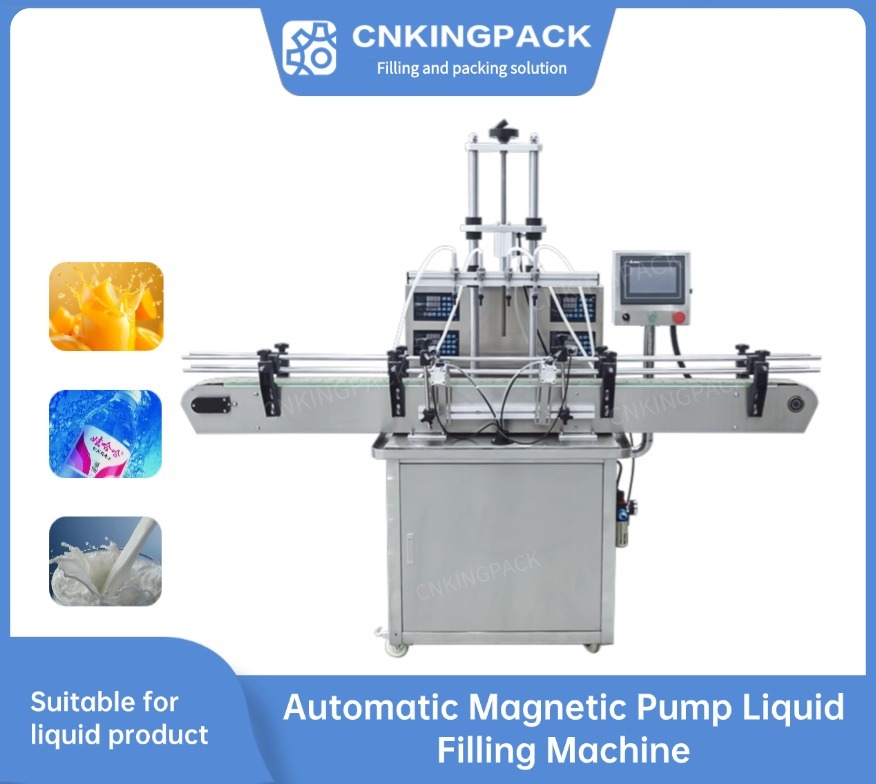

Automatic magnetic pump liquid filling machine

 Automatic liquid filling machine is a kind of liquid filling method that uses microcomputer to control the factors of filling time and motor speed of micro water pump, so as to achieve uniform and minimal repeated error. It is widely used in medicine, chemical industry, food, beverage, oil, cosmetics and other industries.

Description

Automatic liquid filling machine is a kind of liquid filling method that uses microcomputer to control the factors of filling time and motor speed of micro water pump, so as to achieve uniform and minimal repeated error. It is widely used in medicine, chemical industry, food, beverage, oil, cosmetics and other industries.

Features

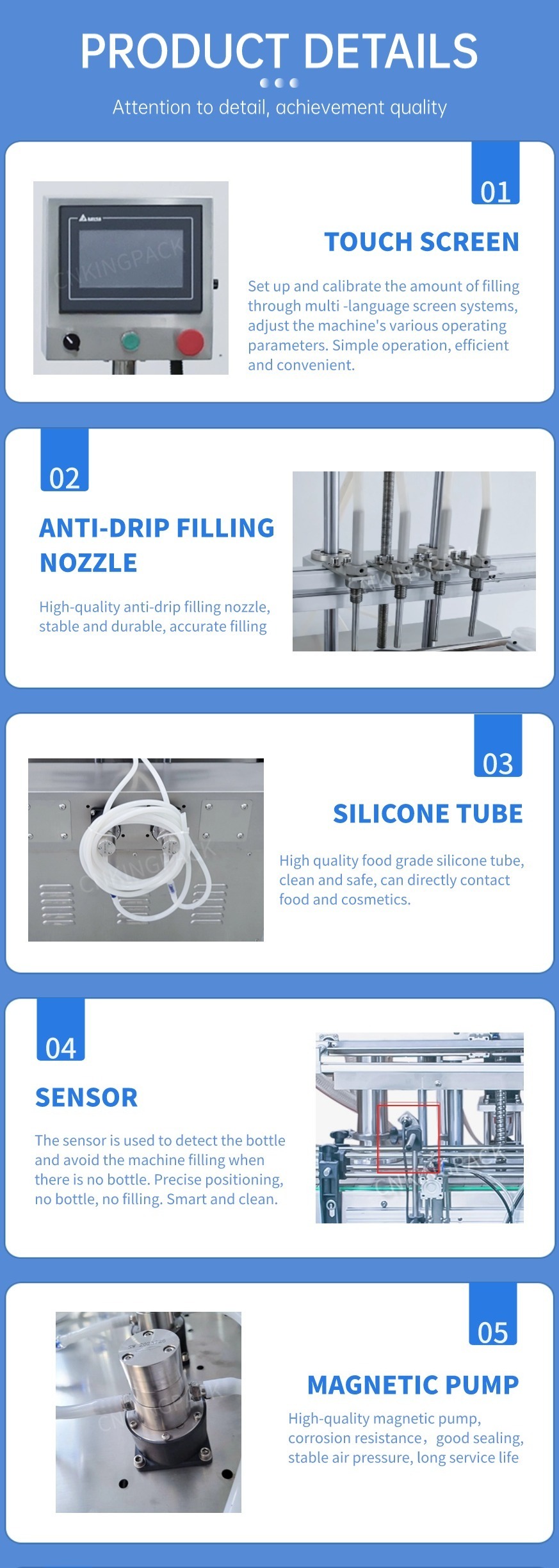

  • Four head magnetic pump filling machine rely on magnetic drive pump head, pump wheel and motor shaft connection, don't worry about damage of the shaft sealing drip or pump under the high load and burn out.
  • Pump head of 316 l stainless steel manufacture, acid and alkali resistance, corrosion resistance, suitable for almost all liquids can flow can filling, especially suitable for oils, washing liquid, acid alkali, high corrosive liquid filling, stable and reliable performance, long service life.

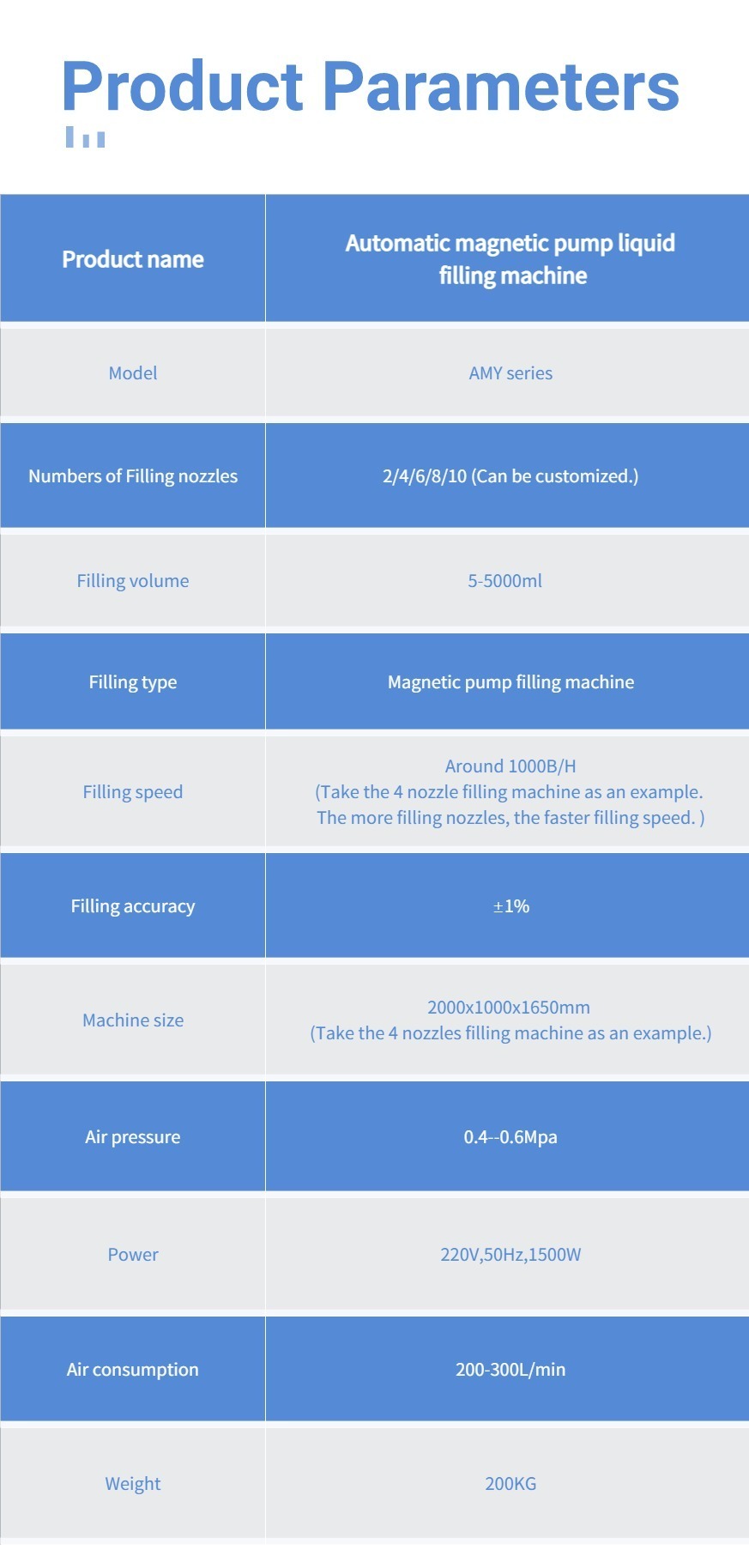

Product name

Automatic magnetic pump liquid filling machine

Model

AMY series

Numbers of Filling nozzles

2/4/6/8/10 (Can be customized.)

Filling volume

5-5000ml

Filling type

Magnetic pump filling machine

Filling speed

Around 1000B/H

(Take the 4 nozzle filling machine as an example. The more filling nozzles, the faster filling speed. )

Filling accuracy

±1%

Machine size

2000x1000x1650mm

(Take the 4 nozzles filling machine as an example.)

Air pressure

0.4--0.6Mpa

Power

220V,50Hz,500W

Weight

200KG
