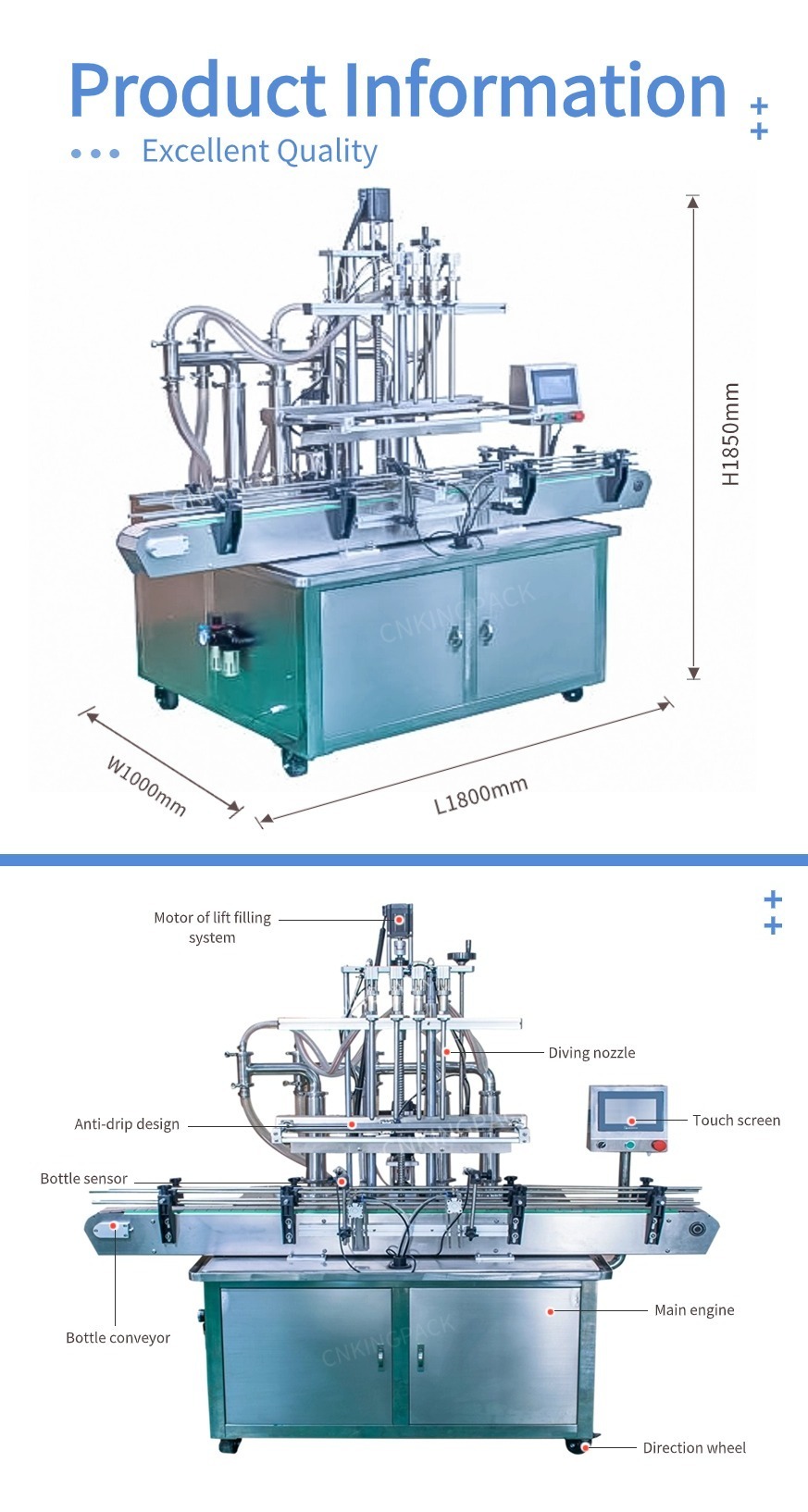

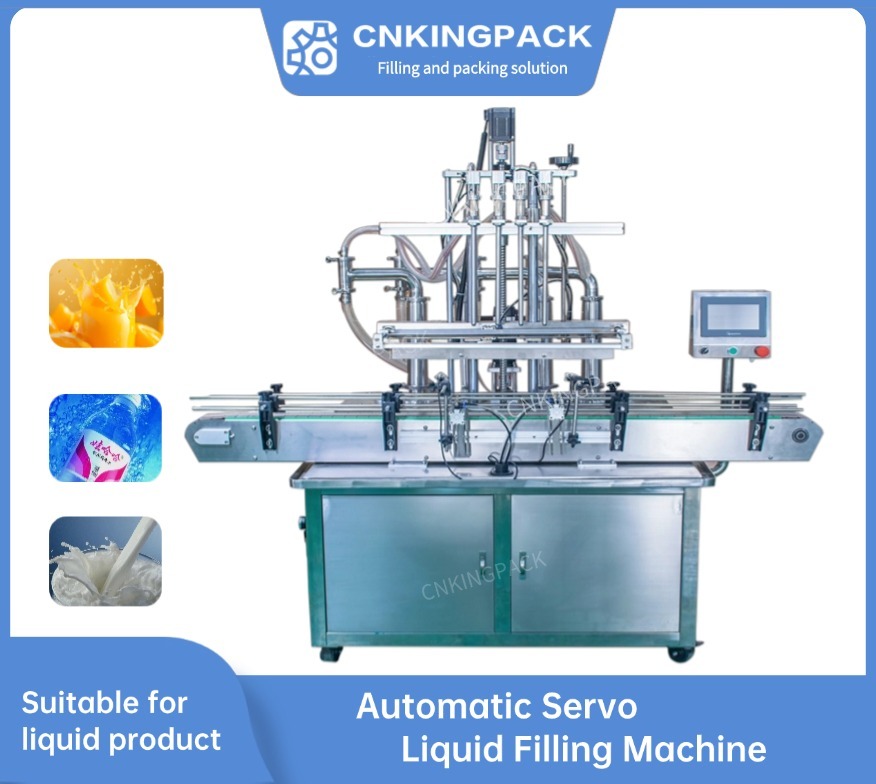

Automatic servo liquid filling machine
This machine is applied for liquid filling similar like water, wine, milk, edible oil, flavor drinks, vinegar products.
It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.
Description
This machine is applied for liquid filling similar like water, wine, milk, edible oil, flavor drinks, vinegar products.
It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.
Features

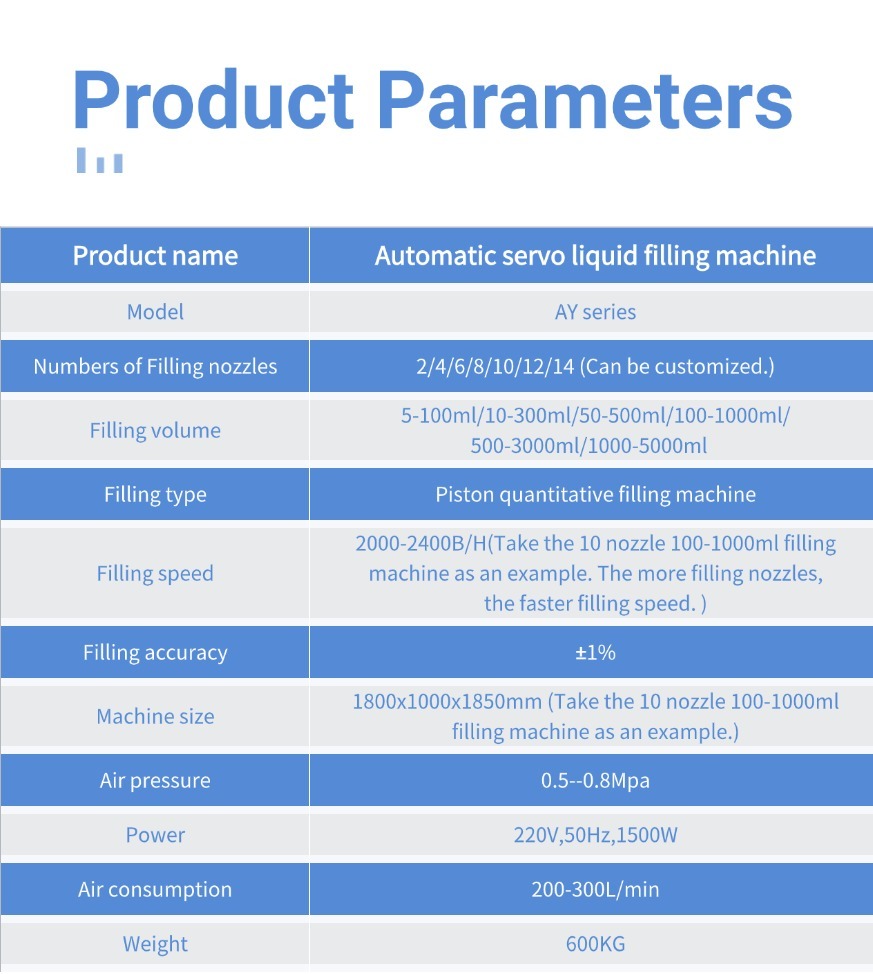

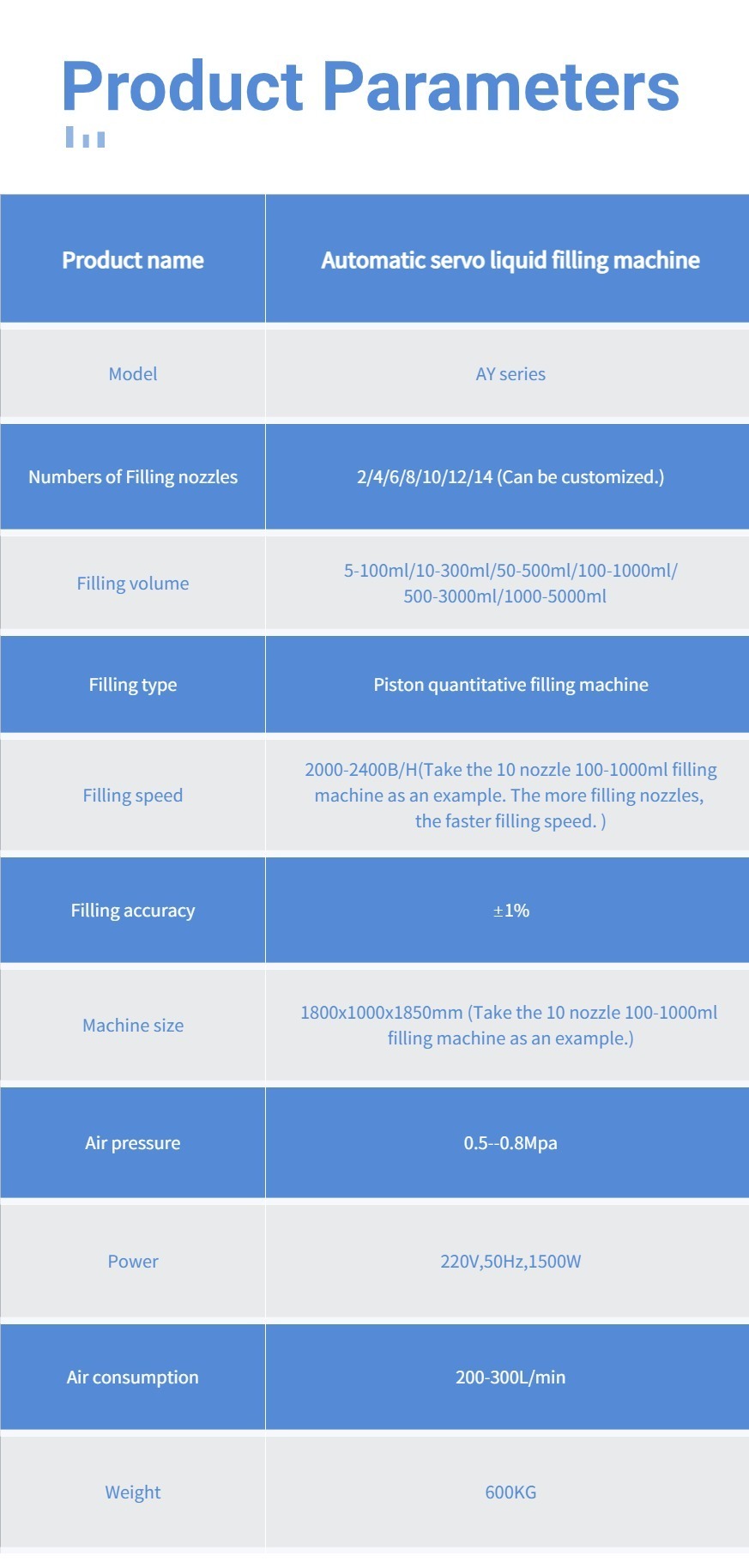

| Product name | Automatic servo liquid filling machine |
| Model | AY series |
| Numbers of Filling nozzles | 2/4/6/8/10/12/14 (Can be customized.) |
| Filling volume | 5-100ml/10-300ml/50-500ml/ 100-1000ml/500-3000ml/1000-5000ml |
| Filling type | Piston quantitative filling machine |
| Filling speed | 2000-2400B/H(Take the 10 nozzle 100-1000ml filling machine as an example. The more filling nozzles, the faster filling speed. ) |
| Filling accuracy | ±1% |
| Machine size | 1800x1000x1850mm (Take the 10 nozzle 100-1000ml filling machine as an example.) |
| Air pressure | 0.5--0.8Mpa |
| Power | 220V,50Hz,1500W |
| Air consumption | 200-300L/min |
| Weight | 600KG |
