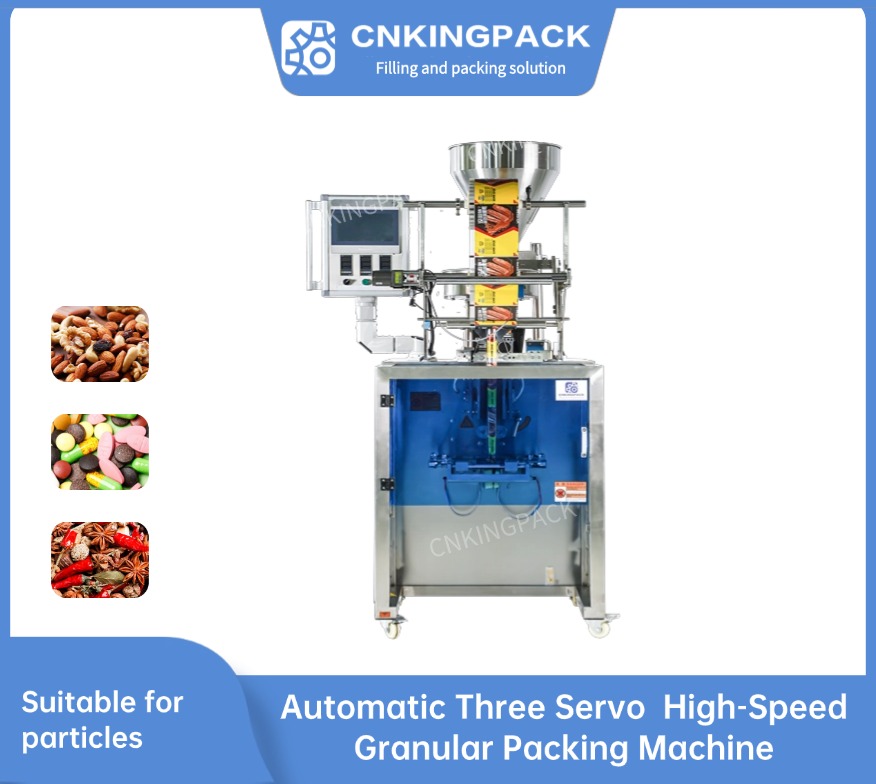

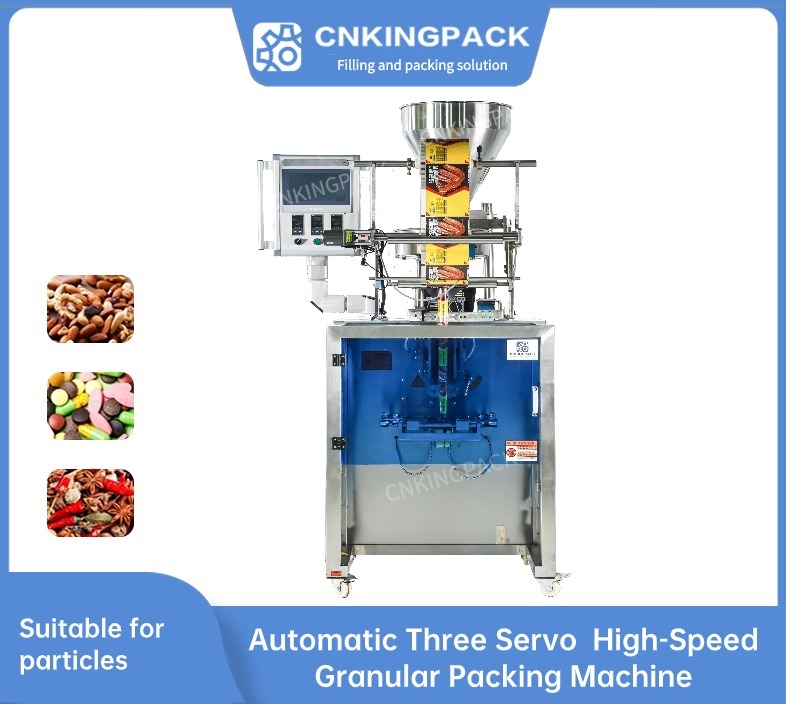

Automatic three servo high-speed granular packing machine

This machine suit for the packing of food, medicine and chemical such particle, short strip and solid product, for example leaven food, shrimp cracker, popcorn, small steamed bread, Farfalle, biscuit, cornmeal, white sugar, dry food, dry fruit, nut, peanut, seeds,green soya bean, pistachio nut, almond, cashew nut, desiccant and washing powder such big metering particle products.

Description

This machine adopts a well-known brand of touch screen PLC and servo motor, with stable operation and fast packaging speed. It automatically completes a series of actions such as bag making, measuring, filling, counting, sealing, feeding, and package cutting.

Features

Product name Automatic Three Servo High-speed Granular Packing Machine
Model No KPL-BF380
Prouction 5400-6000packages/h
Max film width 360mm
Power 2.2kw
Voltage 220V 50HZ
Bag size L50-190mm  W60-180mm
Film thickness 0.03-1.2mm
Roll diameter 350mm
Packing range 2-200g

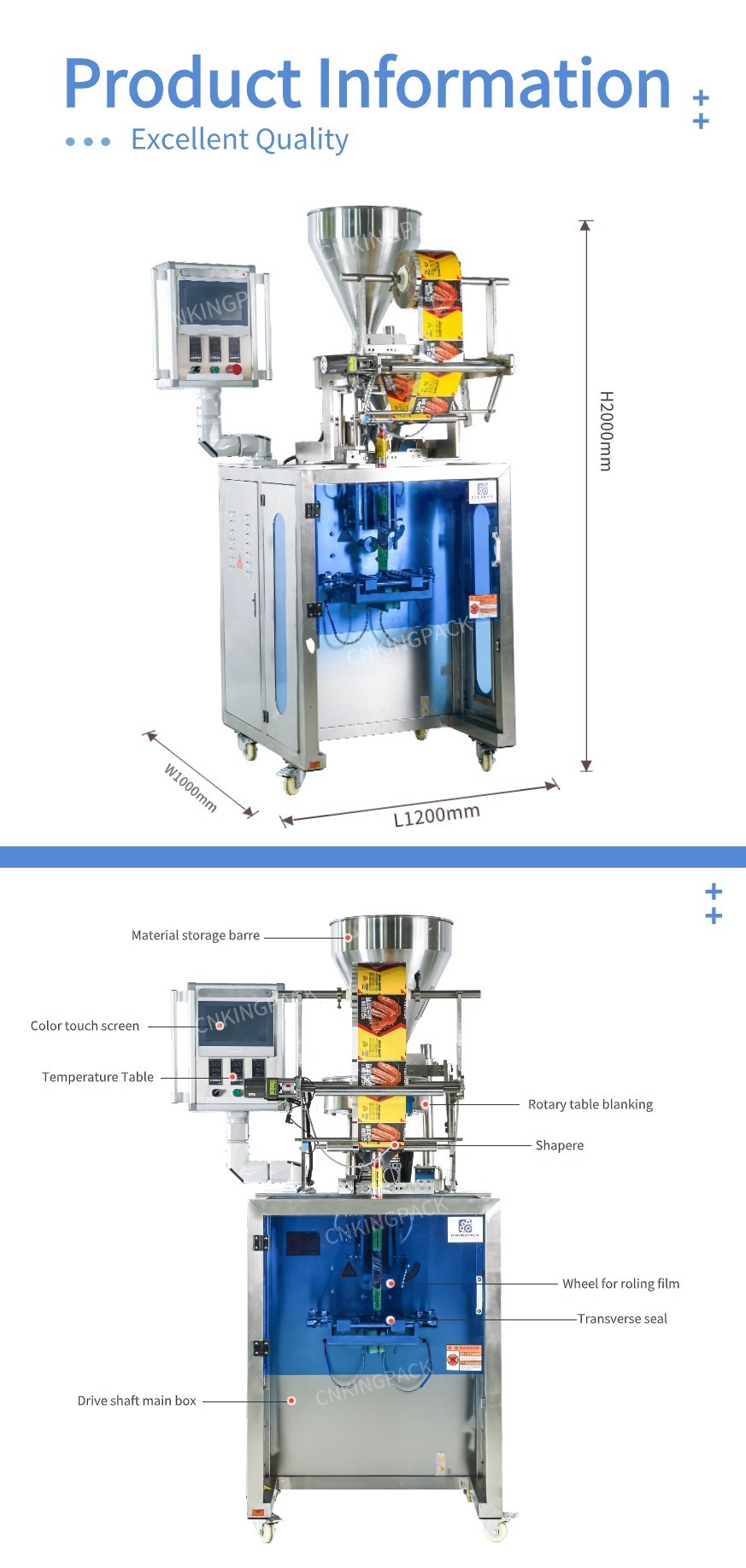

Machine size W1000*L1200*H2000mm
Machine weight 350kg

Advantage

Applications

Parameter Data
