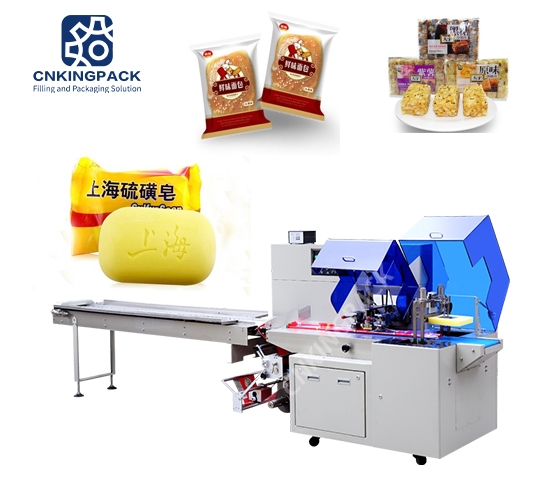

BG-450W Reciprocating upper paper pillow packing machine
This Machine is suitable for packing regular objects, such as biscuits, fruits, candy, moon-cake, bread, bars, dessert, instant noodle, industrial parts, box, trays, face mask, etc
Description
This Machine is suitable for packing regular objects, such as biscuits, fruits, candy, moon-cake, bread, bars, dessert, instant noodle, industrial parts, box, trays, face mask, etc
Features
- 01 Double motors, converter and PLC controller,flexible bag length setting and cutting,saving time and film.
- 02 human-machine interface, convenient and quick parameter settings.
- 03Self diagnosis failure function, failure displayed clearly.
- 04 High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
- 05Separated PID control system for temperature, suitable for various packing materials.
- 06 Stopping the machine in selected position, no sticking on the knife and no waste of the film.
- 07Simple driving system, reliable working, convenient maintenance.
- 08All controlled by program, convenient for function adjusting and upgrading.
Advantage
- 01Cross seal and middle seal are controlled by independent Panasonic servo motor.With simple mechanical structure stable operation and low noise.
- 02High speed,high accuracy,the maximum speed can be up to 500 bags/min.
- 03 Human machine interface convenient and smart parameter settings.
- 04 Automatic fault diagnosis function,fault displayed clearly.
- 05Color tracking digital input seal cutting position,make the seal cutting position more accuracy.
- 06All controls can be implemented by software system,facilitate functional tuning and technical upgrading, and never fall behind.
Applications
Food |
Cake, Bread, Meat , Pastry, Biscuits, Green Bean Cake, Several Sausage In a Bag, Noodles, Beef Jerky, Etc. |
Hardwares |
Hinge, Stainless Steel Pipe, Bearings , Screw, Nuts And Washer, Etc. |
Hotel Supplies |
Soap, Disposable Comb, Tooth Paste And Brush In One Set. |
Stationary |
Pencil, Eraser, Notebook, Paper Card, Adhensive Tape. |
Electric Products |
Battery, Usb Cable, Earphone, User Manual And Accessories In One Set. |
Medical Products |
Mask, Glove, Gauze, Capsule. |
Daily Use Products |
Knife, Fork, Plate, Sponge, Scourer, Wipes, Several Straws In a Bag, Cups, Bottles. |
Parameter Data
Model | BG-450W |
Film width | max 440mm |
Bag length | 120-450mm |
Bag width | 80-200mm |
Product height | 130mm |
Film roll diameter | max 320mm |
Packing speed | 40-80 bags/minute |
Power specification | 220v,50/60HZ, 3.2KW |
Machine size | L3985*W861*H1474mm |
Machine weight | 750kg |
Note: Reciprocating end seal mechanism, the seal is more firm, and the seal cutter hasno loss. End-sealing gusseting device, the bag shape is more beautiful, and improved the product level.
