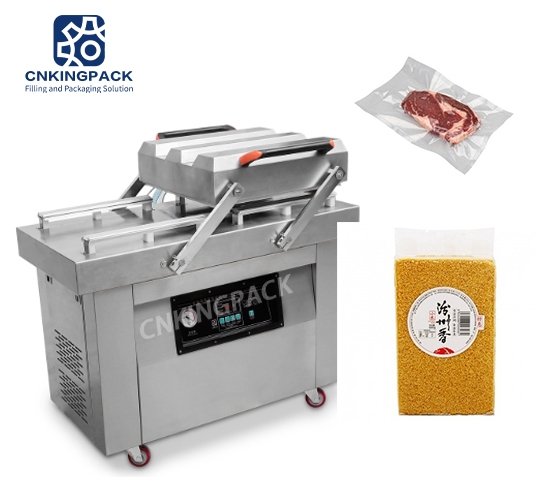

DZ-400/2SA Double Chambers Vacuum Packaging Machine

This vacuum packaging machine is mainly suitable for vacuum packaging of solids, food, meat, grains, etc. in food, medicine, typical products, aquatic products, chemical materials, etc., to prevent their deterioration and extend the warranty period.

Description

Automatic double  vacuum packing machine is one kind of the most efficient vacuum packing machines in company since the double chamber could work by turns with quality vacuum pump, the machine provide you advantage for users to place packaging bags to one chamber while another chamber is working for packing.

Features

  • 01 Different chamber depth for different package height.
  • 02 Simple control panel.
  • 03 High quality vacuum pump operating stability, can add vacuum oil and can work  continuously for 12 hours.
  • 04 Bilateral circulation heat, good heat dissipation, prolong the service life of the machine.
  • 05 The whole machine uses 201SS/ 304 stainless steel. Resistant to dust, moisture, high temperature

Advantage

  • 01Stainless steel of equipment special steel.

  • 02 4mm thickness of the vacuum chamber ensure the machine would not be deformed and leakage.

  • 03Well-known brand electrical accessories.

  • 04Computer edition film button control panel with LCD screen display.

Applications

This vacuum packaging machine is mainly suitable for vacuum packaging of solids, food, meat, grains, etc. in food, medicine, typical products, aquatic products, chemical materials, etc., to prevent their deterioration and extend the warranty period.

Parameter Data

Voltage  AC380/50HZ AC220/50HZ
Motor power 1000w
Sealing power 500w
Ultimate vacuum pressure 1Kpa
No.of sealing bars for each chamber 2
Chamber dimension 460*460*100mm
Sealing length 400mm
Sealing width 10mm
Vacuum pump rate 20m³/h
Material for Vacuum Chamber Stainless steel
Dimension 1050*560*920mm
Net Weight 120kg
The center distance between two sealing bars 365mm
