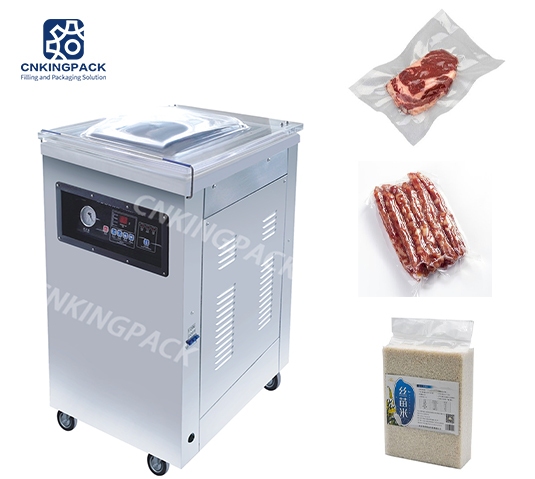

DZ-500/2E Single Chamber Vacuum packaging machine

This vacuum packaging machine is mainly suitable for vacuum packaging of solids, food, meat, grains, etc. in food, medicine, typical products, aquatic products, chemical materials, etc., to prevent their deterioration and extend the warranty period.

Description

DZ-500/2E  Model Single chamber vacuum packing machine is featured by  processing of vacuuming, sealing,  cooling, which is used in vacuum packaging for the food, pharmaceutical, aquatic, chemical and electronic industries.
It can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness of the product over a prolonged storage time.

Features

  • 01Different chamber depth for different package height.
  • 02 Simple control panel.
  • 03 High quality vacuum pump operating stability, can add vacuum oil and can work  continuously for 12 hours.
  • 04 Bilateral circulation heat, good heat dissipation, prolong the service life of the machine.
  • 05 The whole machine uses 201SS/ 304 stainless steel. Resistant to dust, moisture, high temperature.

Advantage

  • 01The vacuum packaging machine is made of stainless steel shell, you only need to use touch buttons on the control panel, set the packaging parameters in advance, and then press the vacuum cover to automatically complete the whole process.
  • 02The single-chamber vacuum packaging machine can print the date when sealing.
  • 03The type and weight of this vacuum packaging machine are very small, very easy to operate.
  • 04Low price, high quality and wear resistance.



Applications

This vacuum packaging machine is mainly suitable for vacuum packaging of solids, food, meat, grains, etc. in food, medicine, typical products, aquatic products, chemical materials, etc., to prevent their deterioration and extend the warranty period.

Parameter Data

Voltage AC220V/50Hz   AC110V/60Hz
Motor power 1000w
Sealing power 750w
Ultimate vacuum pressure 1Kpa
No.of sealing bars for each chamber 2
Chamber dimension 525*525*75mm
Sealing length 500mm
Sealing width 10mm
Vacuum pump rate 20m³/h
Material for Vacuum Chamber Stainless steel 201
Dimension 650*575*980mm
Net Weight 80kg
The center distance between two sealing bars 440mm
