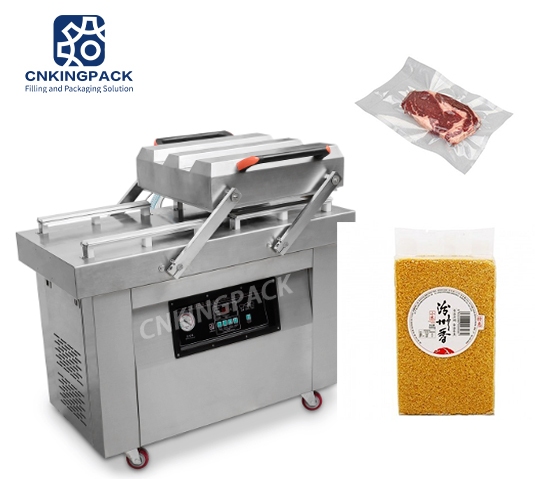

DZ-500/2SA Double Chambers Vacuum Packaging Machine

This vacuum packaging machine is mainly suitable for vacuum packaging of solids, food, meat, grains, etc. in food, medicine, typical products, aquatic products, chemical materials, etc., to prevent their deterioration and extend the warranty period.

Description

Automatic double  vacuum packing machine is one kind of the most efficient vacuum packing machines in company since the double chamber could work by turns with quality vacuum pump, the machine provide you advantage for users to place packaging bags to one chamber while another chamber is working for packing.

Features

  • 01Different chamber depth for different package height.
  • 02Simple control panel.
  • 03High quality vacuum pump operating stability, can add vacuum oil and can work  continuously for 12 hours.
  • 04Bilateral circulation heat, good heat dissipation, prolong the service life of the machine.
  • 05The whole machine uses 201SS/ 304 stainless steel. Resistant to dust, moisture, high temperature

Advantage

  • 01Stainless steel of equipment special steel.
  • 024mm thickness of the vacuum chamber ensure the machine would not be deformed and leakage.
  • 03Well-known brand electrical accessories.
  • 04Computer edition film button control panel with LCD screen display.

Applications

This vacuum packaging machine is mainly suitable for vacuum packaging of solids, food, meat, grains, etc. in food, medicine, typical products, aquatic products, chemical materials, etc., to prevent their deterioration and extend the warranty period.

Parameter Data

Voltage(v/Hz)  AC380/50    AC220/50
Motor Power 2000W
Sealing Power 800W
Ultimate Vacuum Pressure 1Kpa
No.of Sealing Bars for Each Chamber 2pcs
Chamber Dimension 550*520*100(LxWxH)(mm)
Sealing Length 500mm
Sealing Width 10mm
Vacuum Pump Rate 20*2m³/h
Material for Vacuum Chamber Stainless steel  201
Dimension 1200*570*920(LxWxH)(mm)
Net Weight 170kg
The center distance between two sealing bars 440mm
