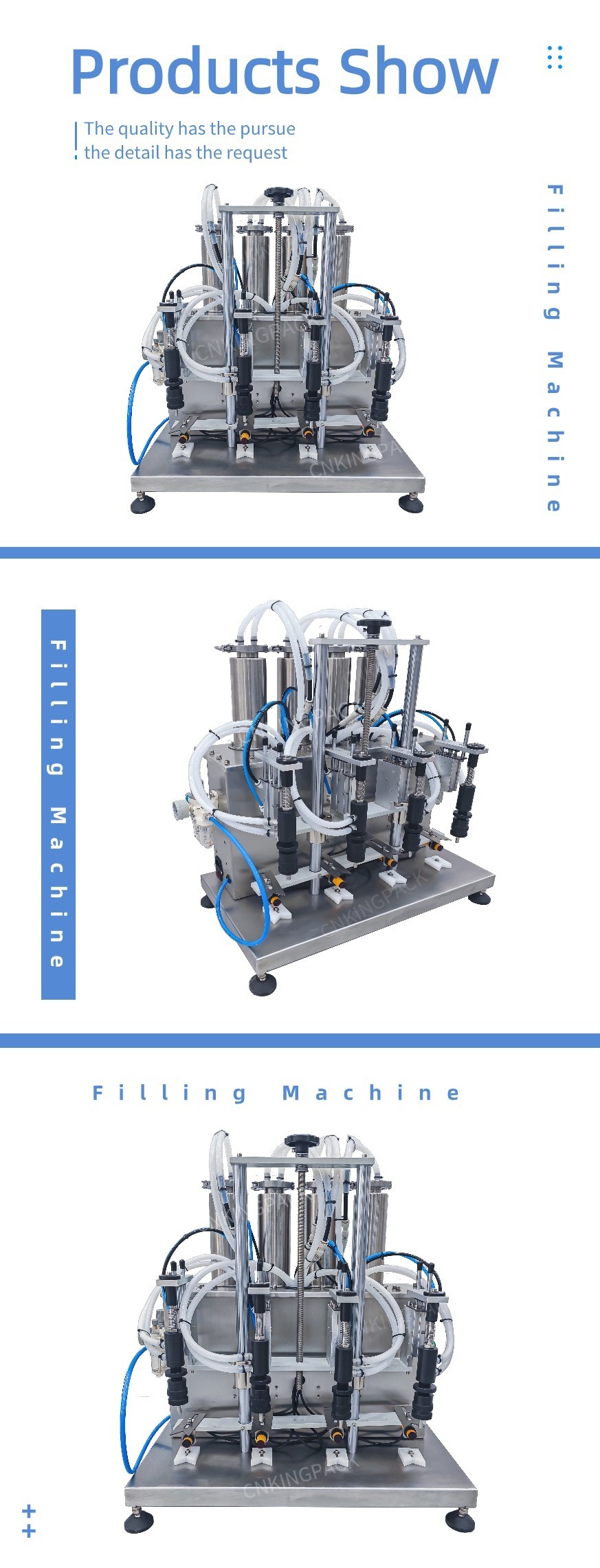

KPL-4XSGZ Desktop 4 Nozzle Perfume Filling Machine
Description
This machine adopt fully pneumatic control so it is very suitable for the filling of high foam materials and different capacity of containers.
Features
The design concept of this machine which developed by our company is: through increase pressure on the filling head, vacuum generator achieves a partial sealing environment in the re flow liquid bottle and filling container. Thus generate a partial vacuum (negative pressure).through vacuum suction to achieve filling process.
|
Machine name |
Desktop liquid vacuum filling machine |
||
|
Numbers of filling nozzle |
1 |
2 |
4 |
|
Filling volume |
10-500ml |
||
|
Working speed |
0-20 pcs/minute |
10-40pcs/minute |
15-60pcs/minute |
|
Air pressure |
0.4-0.6Mpa |
||
|
Voltage |
220V 50/60HZ |
||
|
Machine size(cm) |
30*30*57 |
35*30*57 |
50*30*57 |
|
Machine weight(kg) |
23kg |
28kg |
35kg |
|
Applicable products |
perfume, makeup remover, fragrance, alcohol, essential oil and other liquid product filling (bottle body for glass bottles or non-deforming plastic bottles after vacuuming). Highly foamy liquids or irregularly sized bottles are also suitable. |
||
|
Working principle |
Using the working principle of vacuum filling to keep the liquid level scale, the machine can fill accurately. If the level exceeds the level line, the machine will automatically suck back the excess liquid |
||
Advantage
This machine is an ideal type machine which can reach the ideal filling speed and effect after practical commissioning the machine as according to size of the filling container.
Applications
Mostly used for glass bottle perfume filling
Parameter Data
| Model | KPL-4XSGZ |
| Nozzle quantity | 4 head |
|
Min diameter(bottle hole)
|
>=4.5mm
|
|
Max diameter (bottle hole)
|
≤20mm
|
|
Voltage
|
220V/50Hz
|
|
Machine power
|
About 50W
|
|
Filling range
|
About 5-500ml
|
|
Filling speed
|
20-60 bottles/min (4 nozzles)
|
|
Machine air pressure
|
0.4-0.8MPa
|
|
Applicable bottle height
|
<200mm
|
|
Adjustable liquid surface distance
|
About 30mm
|
|

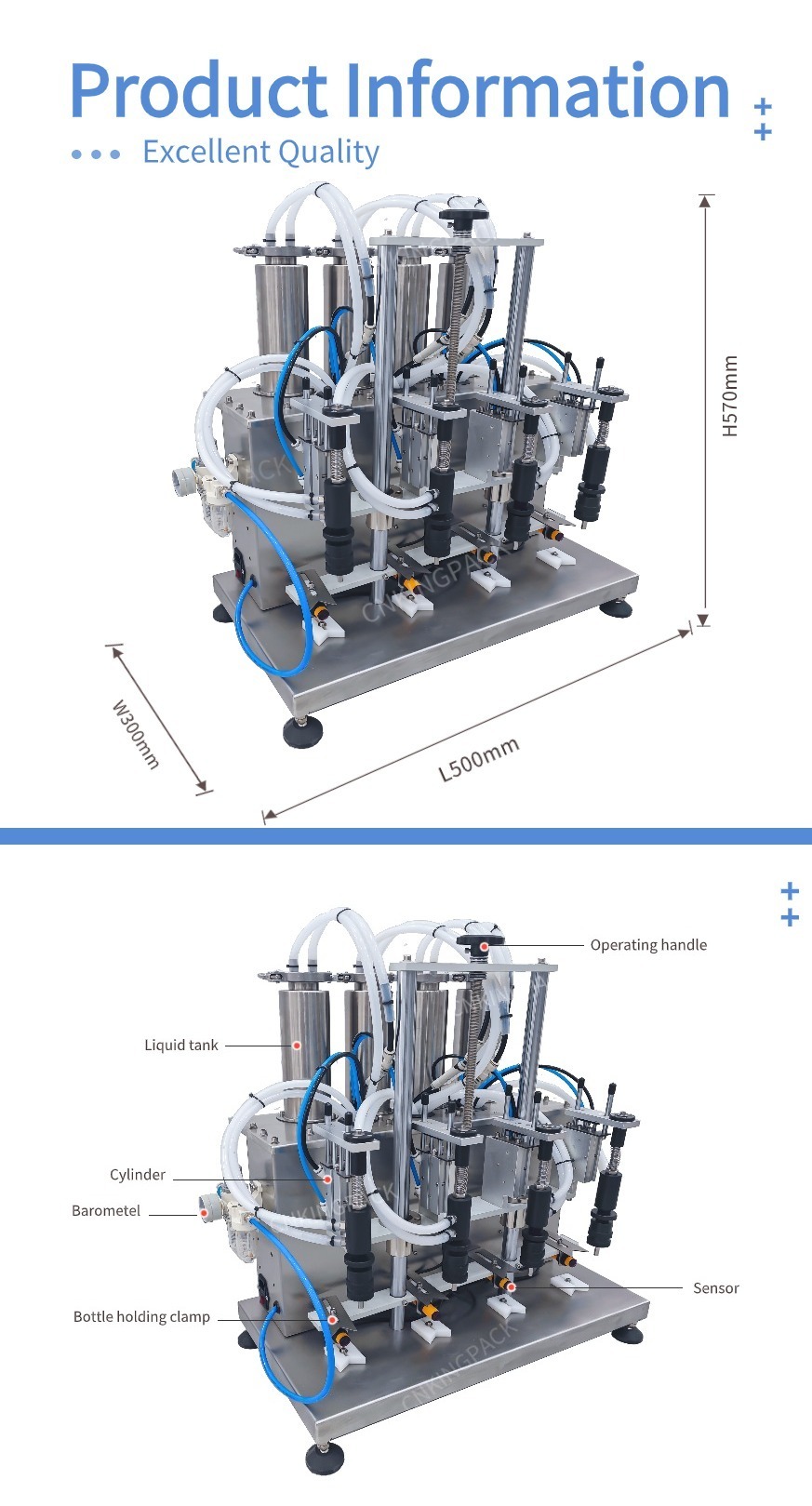

Machine size
|
About 620*315*680mm
|
|
Machine weight
|
33kg
|
|
Package size
|
680*420*840mm
|
|
Package weight
|
About 50kg
|
