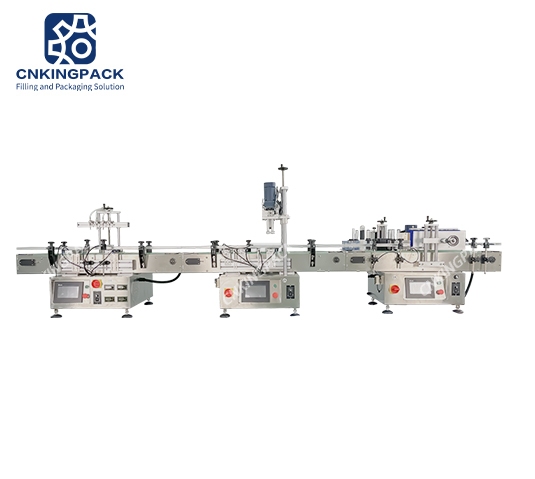

Desktop Liquid Filling Line
Include filling machine, capping machine, labeling machine
Description
Used to fill liquid products into bottles, with capping and labeling together running continuously. it is mostly used in small scale factory.
Features
Desktop type
Stainless steel structure
Ecnomic type
Advantage
- The machine is a mini automatic desktop liquid filling machine.Delta brand big touch screen.
- Suitable for all kind of pure liquid, such as water, milk, food oil, essential oil, Insecticide, juice without particles, wine or other liquid.
- High precision filling with magnetic pump.
- The design of the whole machine is stainless steel, with stable performance.
- Adopts AIRTAC pneumatic and electronic control components.
- The hand wheel is used to adjust the height. It is more convenient to use, the filling volume is accurate, and the filling speed can be adjusted at will to fill various liquid materials.
- Can be equipped with the screw capping machine and labeling machine into production line.
- Intelligent control, automatic photoelectric tracking, no filling without bottle, just fill and go.
Applications
Parameter Data
|
Model |
DSC-4N |
|
Voltage |
220v/50Hz |
|
Power |
450w |
|
Suitable bottle height |
50-240mm |
|
Suitable bottle diameter |
50-130mm |
|
Filling range |
10-2000ml |
|
Filling accuracy |
≦±1% |
|
Dimensions |
1300*810*900mm |
|
Weight |
125kg |
|
Model |
DXG-1 |
|
Voltage |
220v/50Hz |
|
Power |
500w |
|
Max diameter of bottle |
100mm |
|
Cover diameter |
20-60mm |
|
Max bottle height |
≦190mm |
|
Min bottle height |
≧50mm |
|
Sealing speed |
20-60pcs/min(Adjustable) |
|
Dimensions |
1400*650*1200mmL25-180mm |
|
Weight |
90kg |
|
Model |
KP-38 |
|
Voltage |
220v/50Hz |
|
Power |
400w |
|
Label speed |
25-50pcs/min |
|
Label accuracy |
±1mm |
|
Label roll inner diameter |
≧75mm |
|
Label roll outer diameter |
≦250mm |
|
Suitable bottle diameter |
40-100mm |
|
Suitable label size |
W25-150mm L25-180mm |
|
Machine size |
1300*750*880mm |
|
Weight |
100kg |
