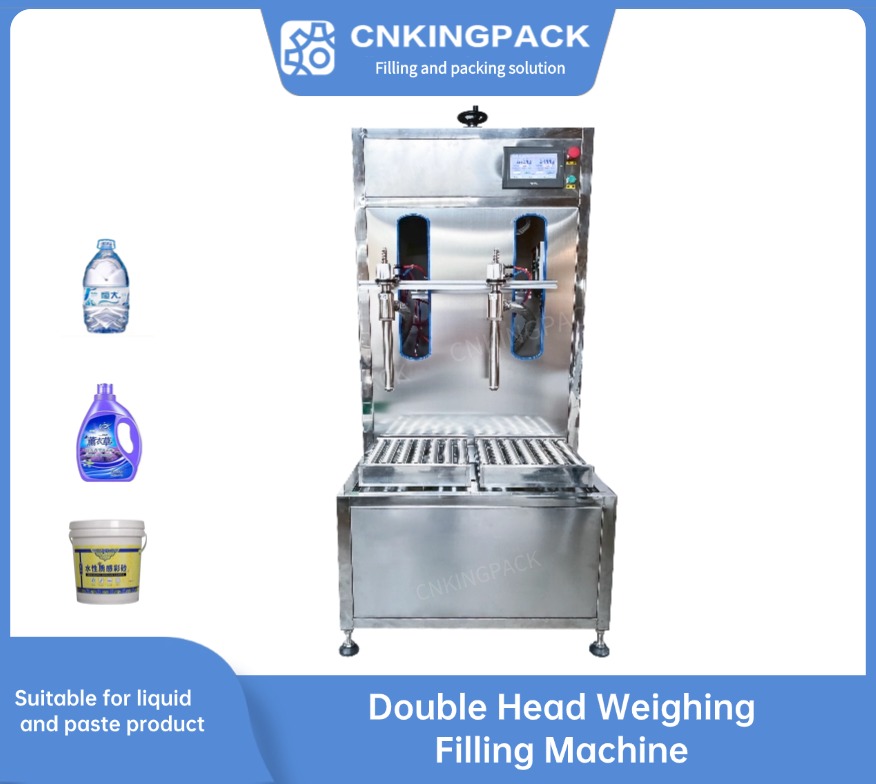

Double head weighing filling machine with diving nozzle

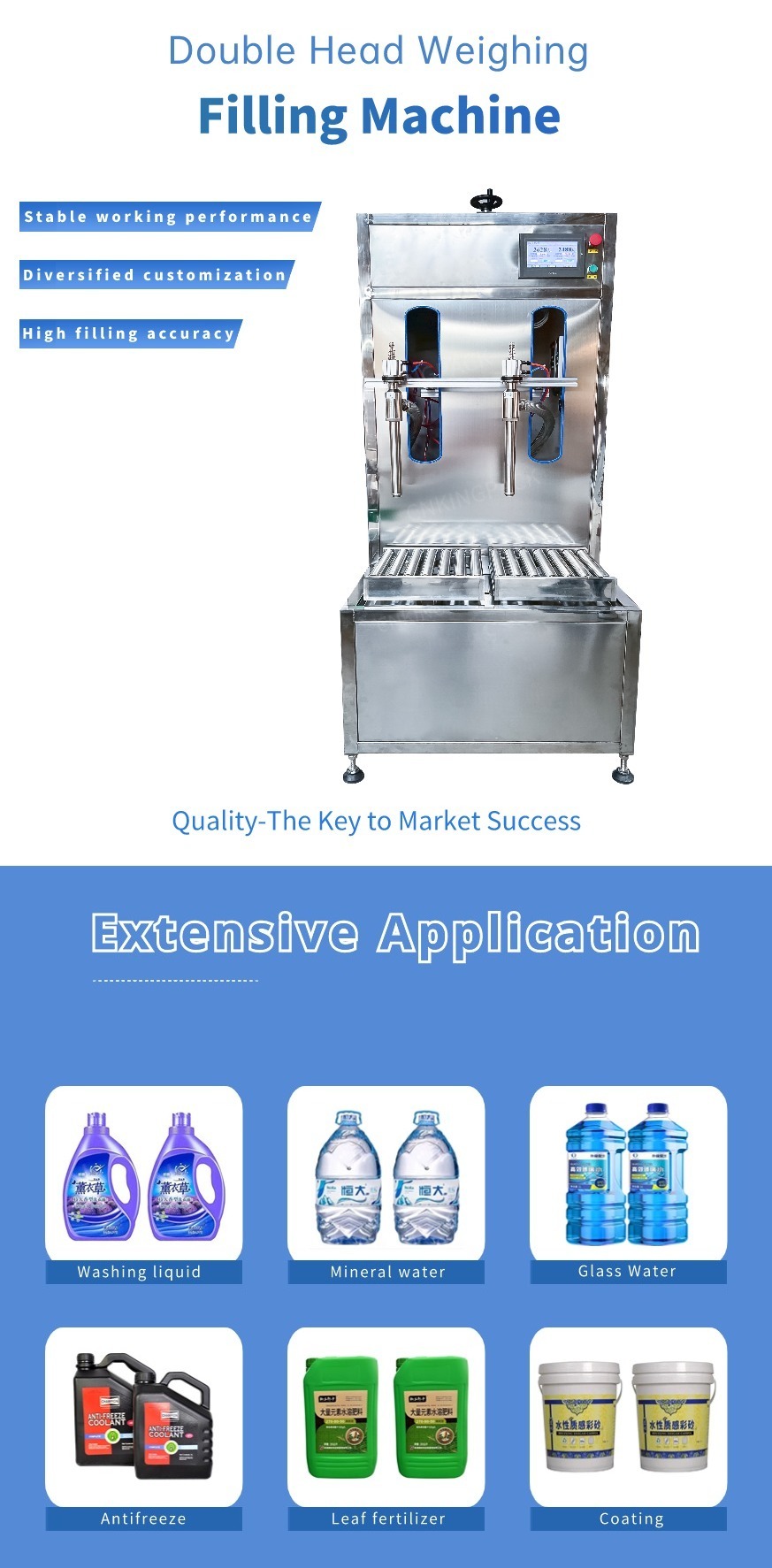

The weighing type filling machine has the characteristics of flexible filling method, fast filling speed, accurate measurement, good stability, and is not affected by the viscosity and temperature of oil products, etc., which is suitable for the filling of small and medium-sized production enterprises. Can fill edible oil, lubricating oil, leaf fertilizer, paint, pure water, glass water, antifreeze and other materials.

Description

The weighing type filling machine has the characteristics of flexible filling method, fast filling speed, accurate measurement, good stability, and is not affected by the viscosity and temperature of oil products, etc., which is suitable for the filling of small and medium-sized production enterprises. Can fill edible oil, lubricating oil, leaf fertilizer, paint, pure water, glass water, antifreeze and other materials.

Features

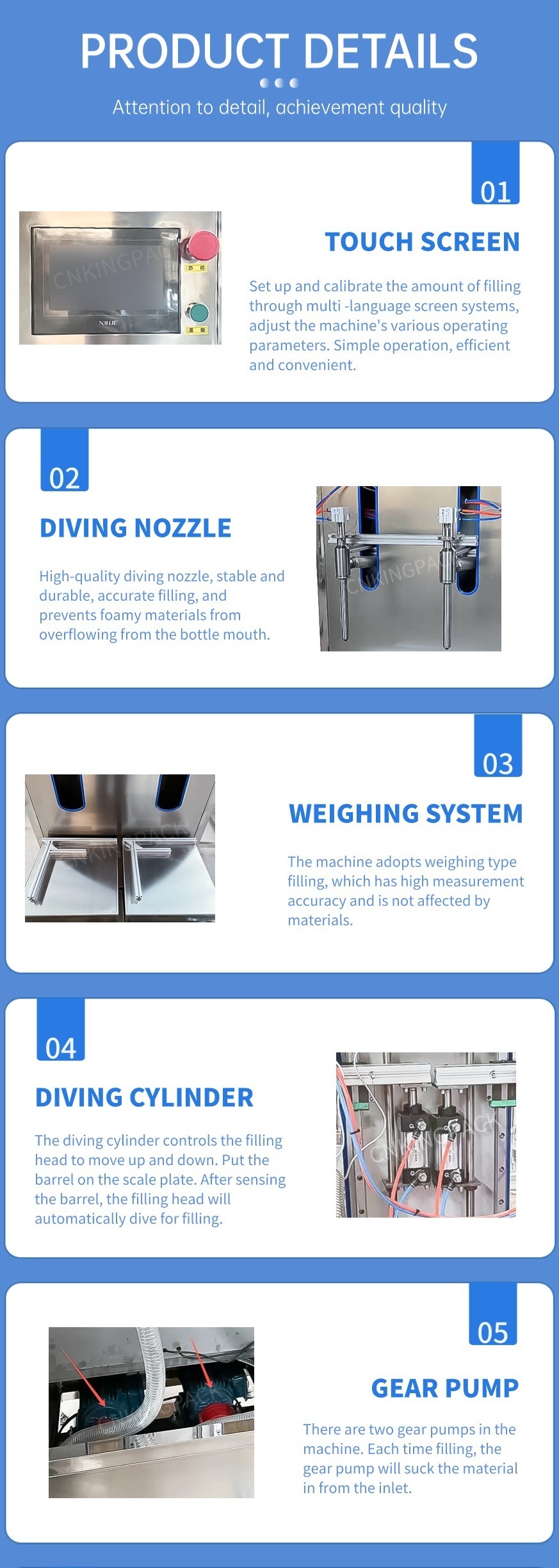

  • Touch screen, PLC, C3 weight sensor, frequency converter, to ensure the quality and accuracy of filling.
  • Computer weighing, diving filling, inverter three-speed adjustment.
  • The filling amount is directly set, easy to operate, with a key peeling function.
  • Drop compensation function.

Product name

Double head weighing filling machine with diving nozzles

Model

SWG series

Numbers of Filling nozzles

2

Filling volume

1-5kg,10-30kg,1-30kg

Filling type

Weighing filling machine

Filling speed

5kg, 400 barrels/hour; 20kg, 200 barrels/hour

Filling accuracy

0.5‰

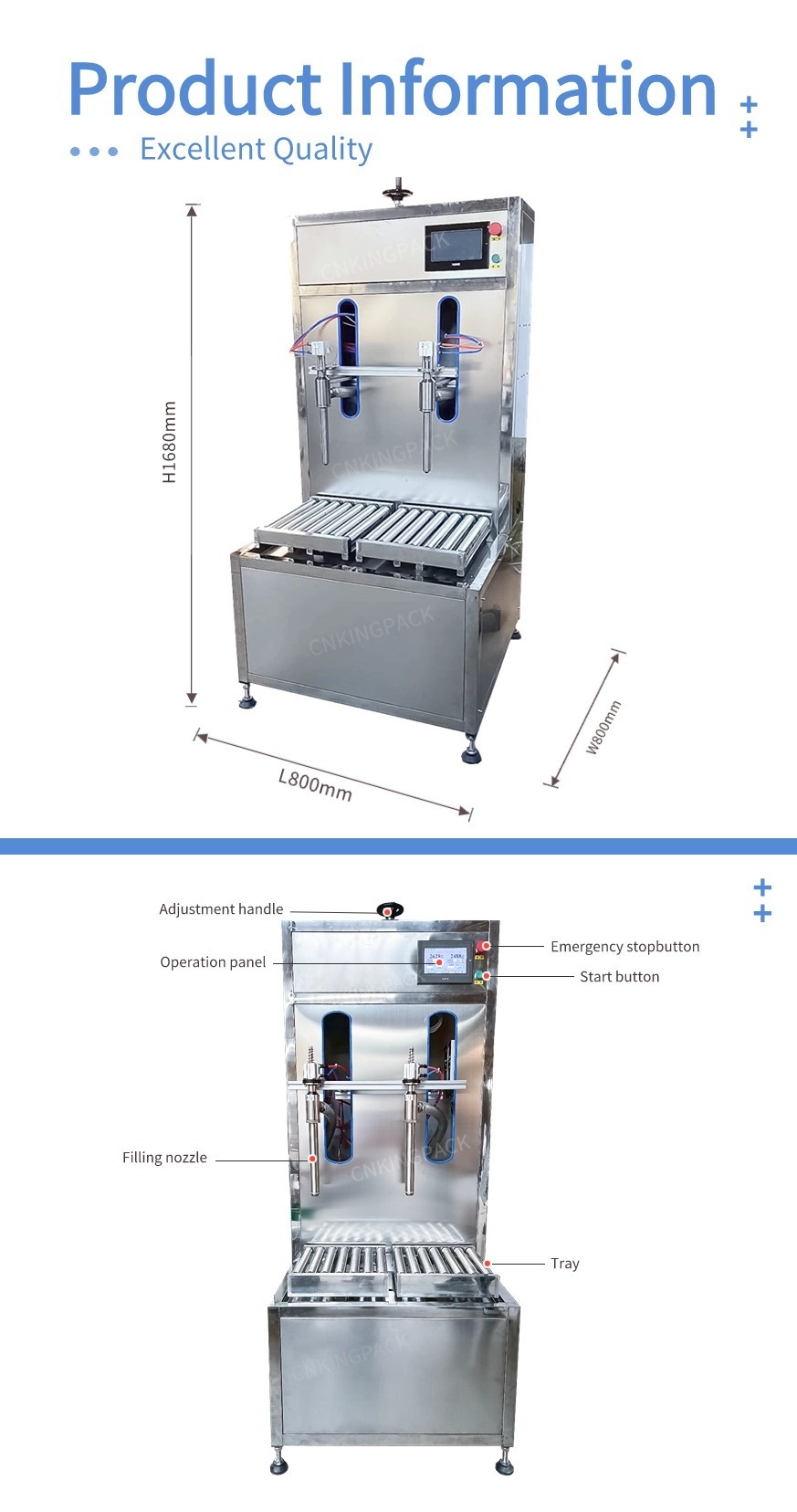

Machine size

800x800x1680mm

Air pressure

0.5--0.6Mpa

Power

Default 380VAC, 220VAC (customizable)

Weight

200KG

Advantage

Applications

Parameter Data
