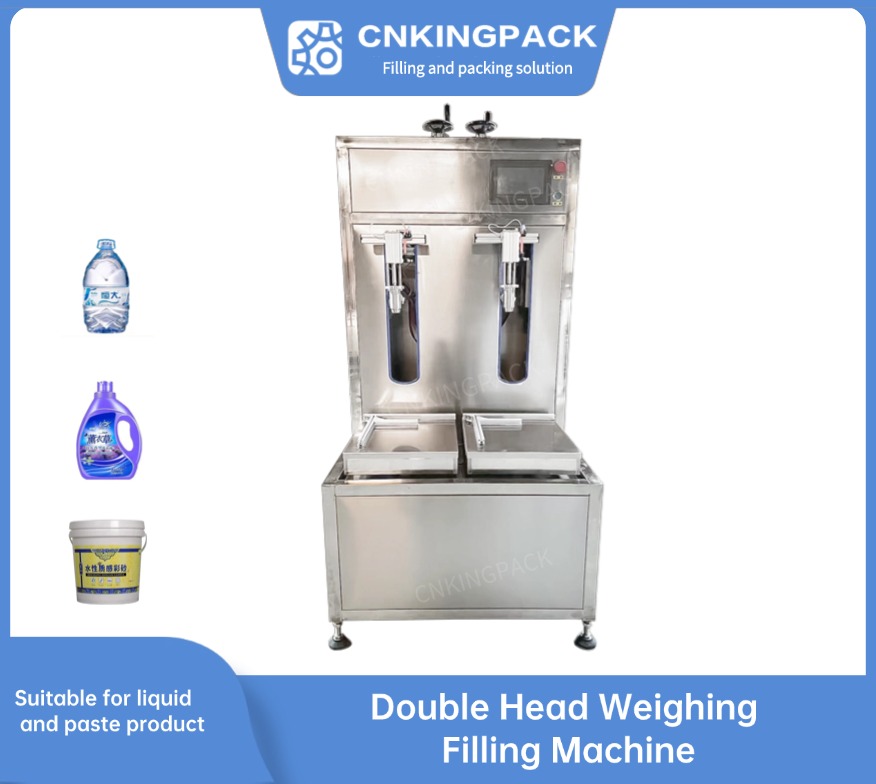

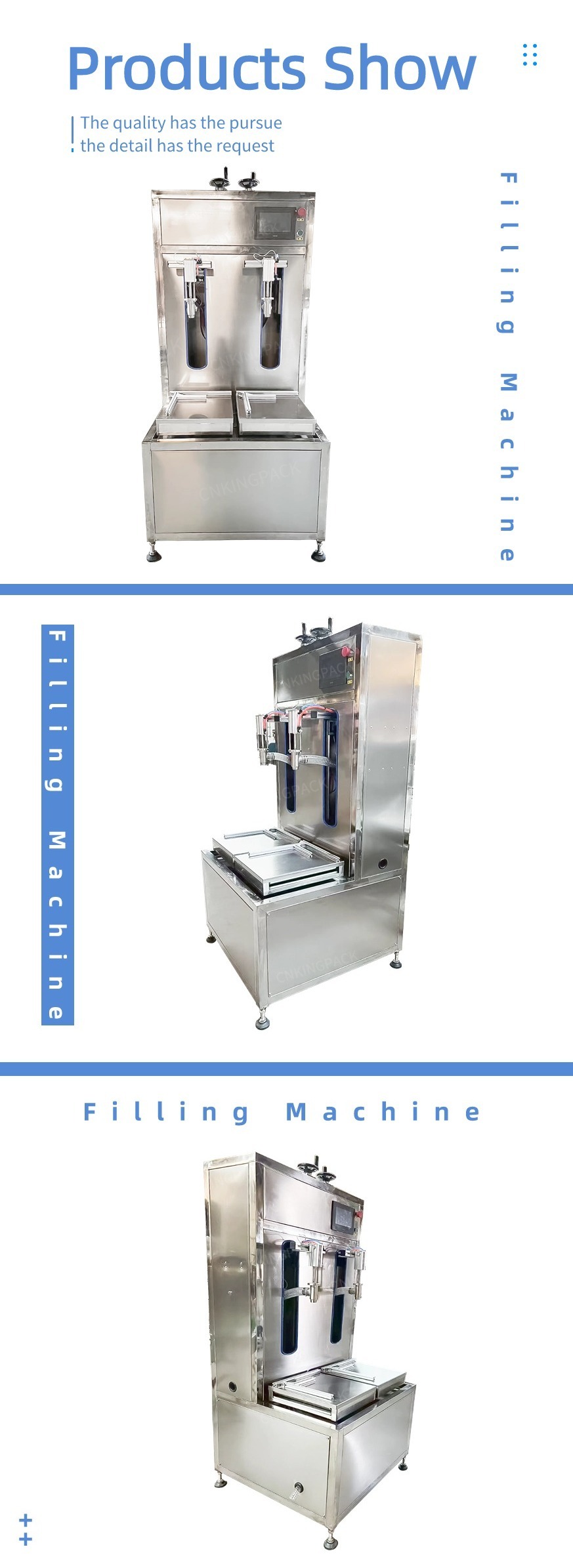

Double head weighing filling machine

The weighing type filling machine has the characteristics of flexible filling method, fast filling speed, accurate measurement, good stability, and is not affected by the viscosity and temperature of oil products, etc., which is suitable for the filling of small and medium-sized production enterprises. Can fill edible oil, lubricating oil, leaf fertilizer, paint, pure water, glass water, antifreeze and other materials.

Description

The weighing type filling machine has the characteristics of flexible filling method, fast filling speed, accurate measurement, good stability, and is not affected by the viscosity and temperature of oil products, etc., which is suitable for the filling of small and medium-sized production enterprises. Can fill edible oil, lubricating oil, leaf fertilizer, paint, pure water, glass water, antifreeze and other materials.

Features

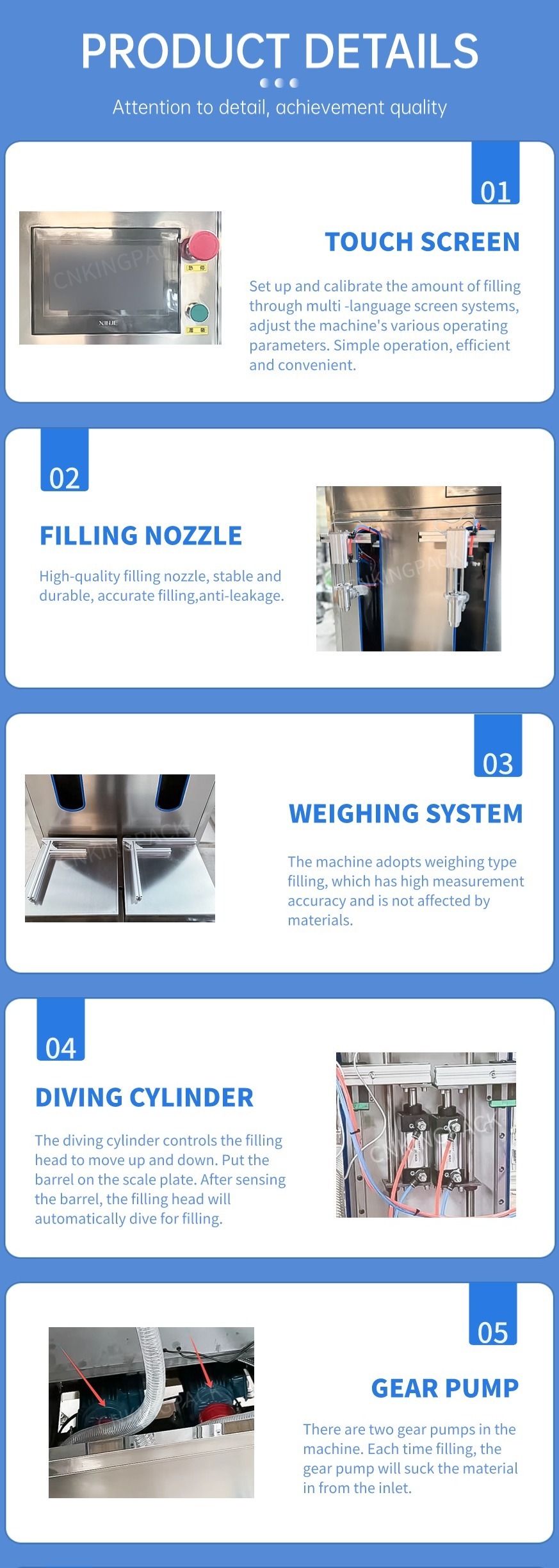

  1. Touch screen, PLC, C3 weight sensor, frequency converter, to ensure the quality and accuracy of filling.
  2. Computer weighing, diving filling, inverter three-speed adjustment.
  3. The filling amount is directly set, easy to operate, with a key peeling function.
  4. Drop compensation function.

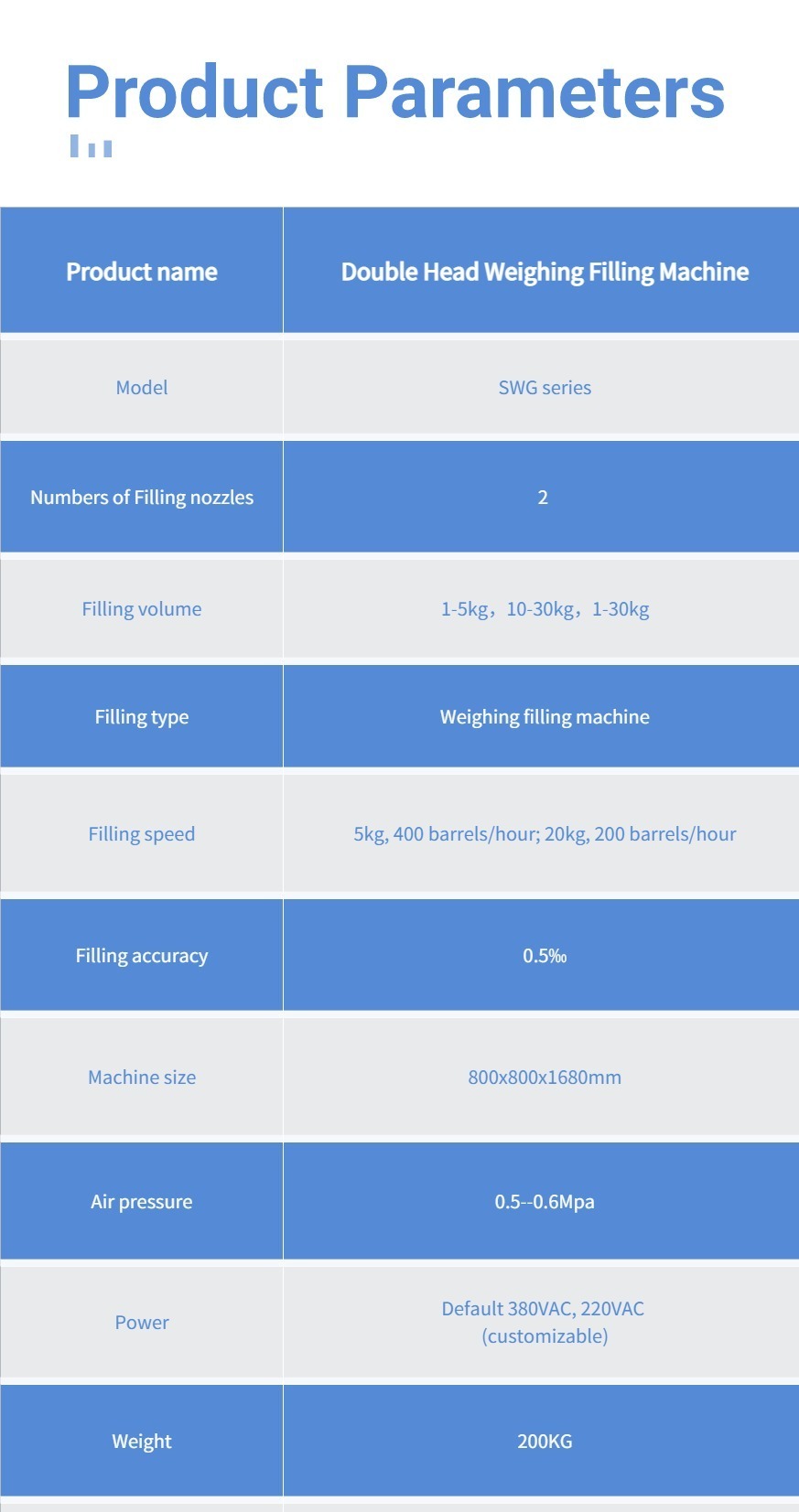

    Product name

    Double head weighing filling machine

    Model

    SWG series

    Numbers of Filling nozzles

    2

    Filling volume

    1-5kg,10-30kg,1-30kg

    Filling type

    Weighing filling machine

    Filling speed

    5kg, 400 barrels/hour; 20kg, 200 barrels/hour

    Filling accuracy

    0.5‰

    Machine size

    800x800x1680mm

    Air pressure

    0.5--0.6Mpa

    Power

    Default 380VAC, 220VAC (customizable)

    Weight

    200KG
