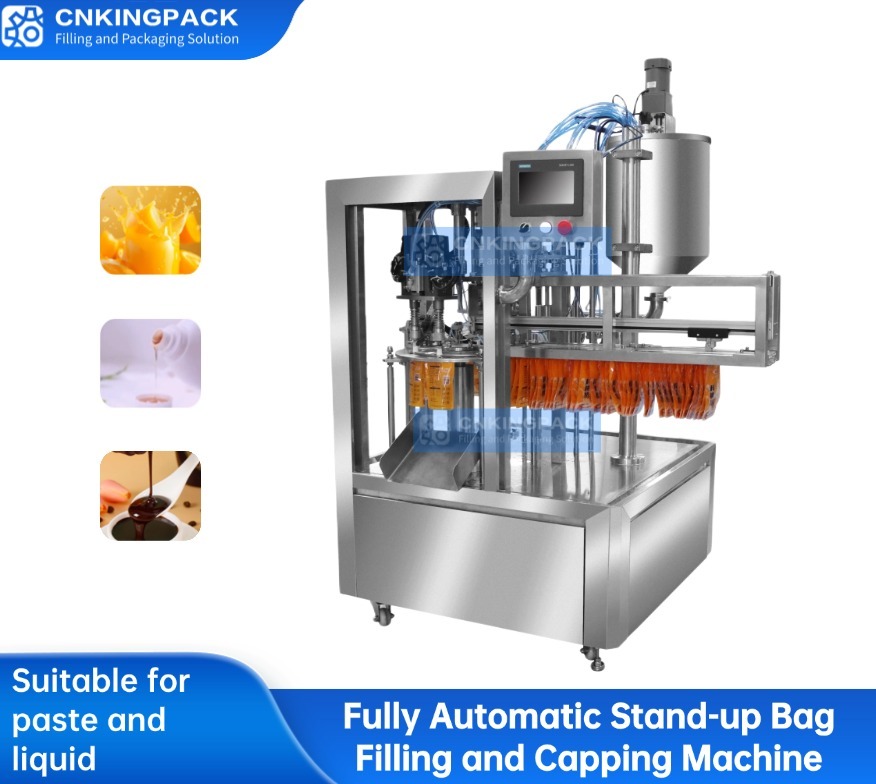

Fully Automatic Stand-up Bag Filling and Capping Machine
This device is used for filling and covering of self-supporting bags. Suitable materials: beverage, CC jelly, fruit juice, oil, water, cleaning products, cosmetics and other liquids or paste.
Description
This device is used for filling and covering of self-supporting bags. Suitable materials: beverage, CC jelly, fruit juice, oil, water, cleaning products, cosmetics and other liquids or paste.
Features

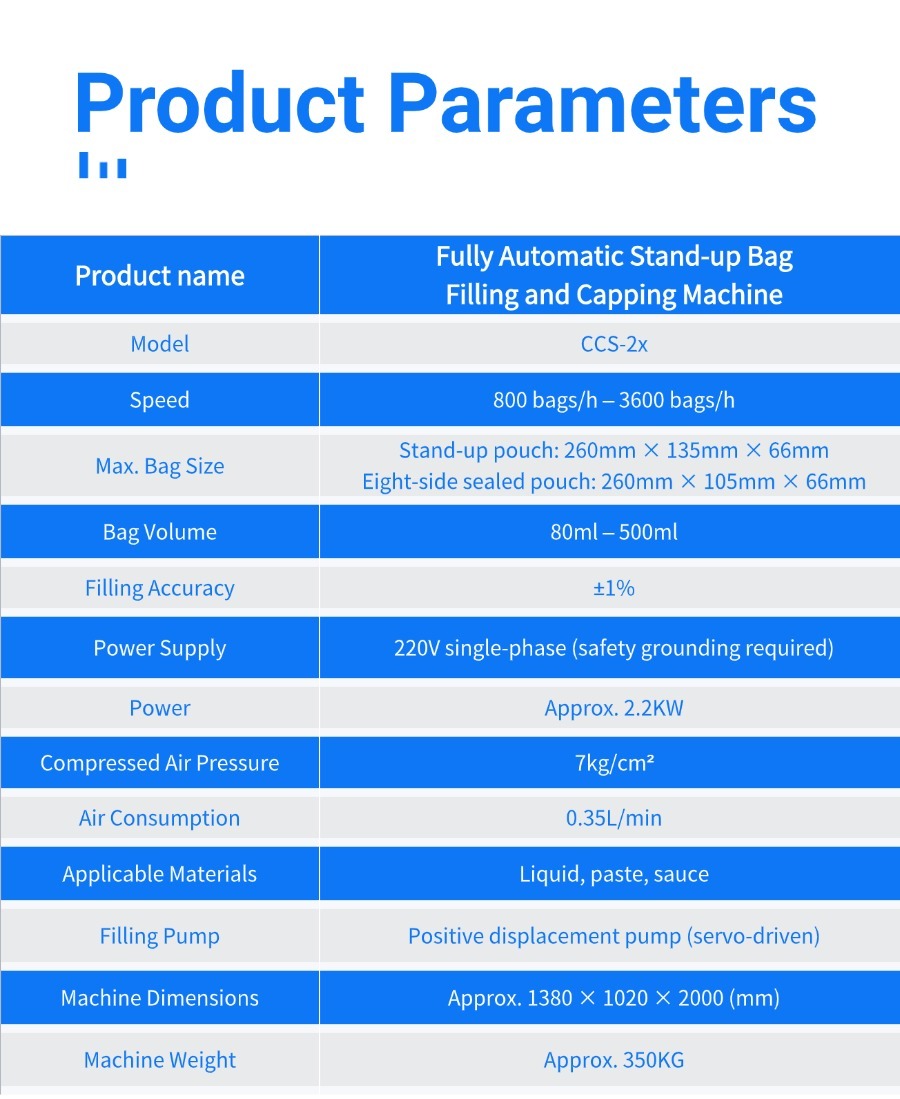

| Machine name | Fully Automatic Stand-up Bag Filling and Capping Machine |
| Model | CCS-2x |
| Speed | 800 bags/h – 3600 bags/h |
| Max. Bag Size | Stand-up pouch: 260mm × 135mm × 66mm Eight-side sealed pouch: 260mm × 105mm × 66mm |
| Bag Volume | 80ml – 500ml |
| Filling Accuracy | ±1% |
| Power Supply | 220V single-phase (safety grounding required) |
| Power | Approx. 2.2KW |
| Compressed Air Pressure | 7kg/cm² |
| Air Consumption | 0.35L/min |
| Applicable Materials | Liquid, paste, sauce |
| Filling Pump | Positive displacement pump (servo-driven) |
| Machine Dimensions | Approx. 1380 × 1020 × 2000 (mm) |
| Machine Weight | Approx. 350KG |
1.The frame is welded with 38 * 38 * 2 stainless 304 square pipe and 304 # plate. All the workpieces of the table and food contact are made of 304 # stainless steel, and the design is compact to occupy the ground.
2.The motor adopts 0.12KW 50:1 gear motor with strong noise bottom.
3.The protective cover is beautiful and generous and ensures production safety
4.The bag is welded with 304 # stainless steel and durable; driven by German mechanical rod-less cylinder for stable operation
5.The filling head adopts an independent structure, each filling mechanism can work independently, each filling head can be vacuum · nitrogen filled gas (or clean air) to ensure the filling quality and yield
6.Fully automated operation to ensure high hygiene
7.40L vertical material barrel
8.Material barrel matching level controller (material must be conductive)
9.Online bag detection, no bag without filling
10.Servo spin cover with adjustable torque
11.Siemens programmable controller
12.Environmental-friendly power saving and low noise type cover
13.Compact design saves space
