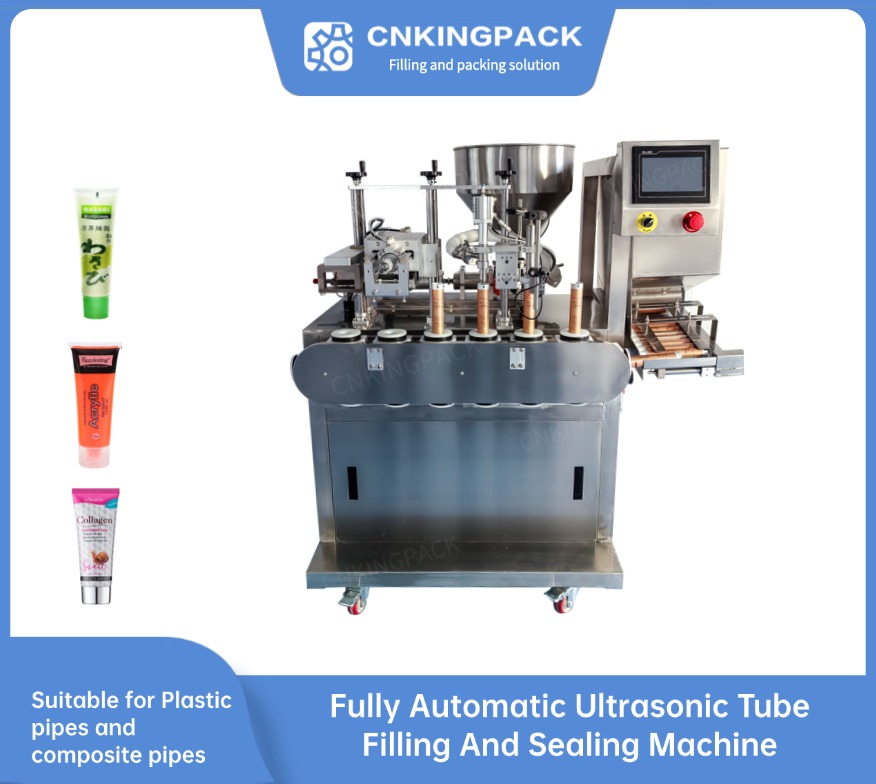

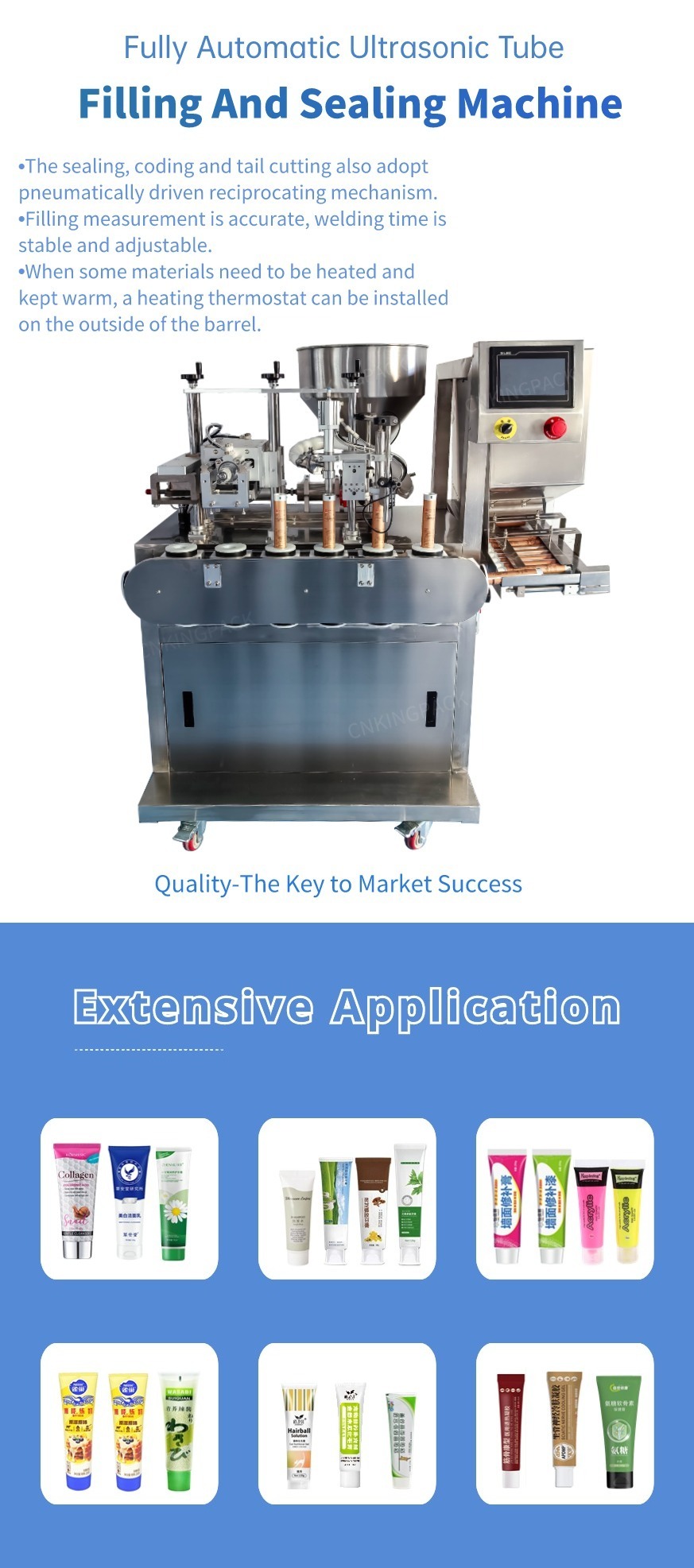

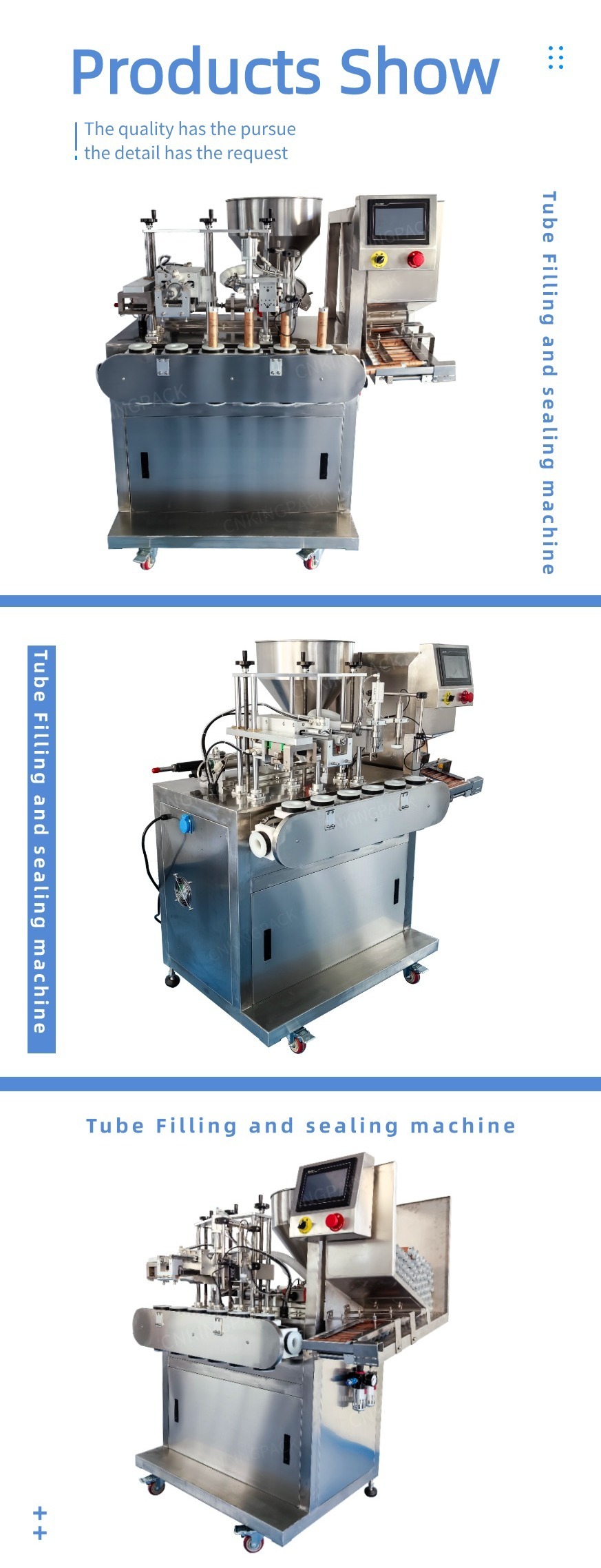

Fully Automatic Ultrasonic Tube Filling And Sealing Machine
This machine can automatically complete all processes except for manual tube loading, including automatic filling, sealing, coding, trimming, and ejecting finished products. entire machine operates smoothly and reliably.
Description
The ultrasonic tube filling and sealing machineis designed with 6 stations, utilizing a servo motor to drive the circular chain for intermittent movement, ensuring that the14 clamps installed on the circular chain move at equal distances. It is the sealing machine selected by industries such as cosmetics, pharmaceuticals, adhesive shoe polish, food, etc., as well as other industries.
Features

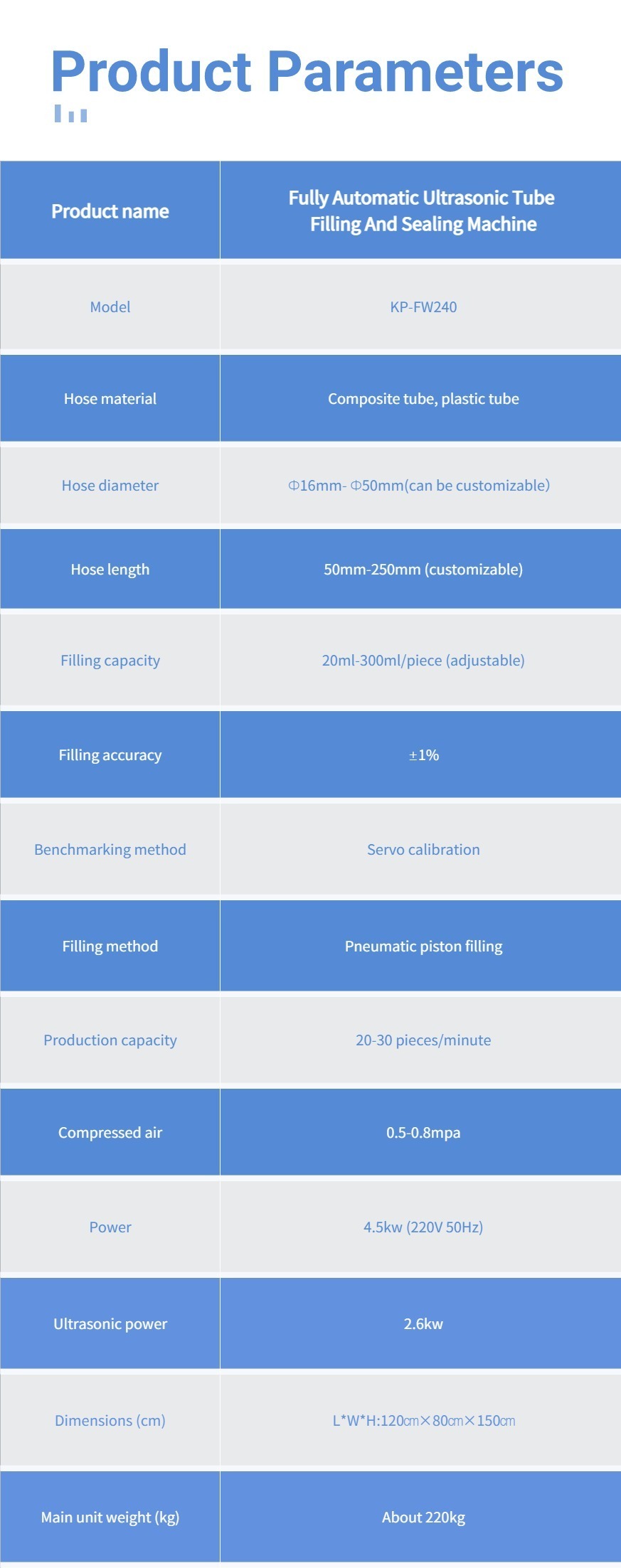

| Model | CH-FW240 |
| Hose material | Composite tube, plastic tube |
| Hose diameter | Φ16mm- Φ50mm |
| Hose length | 50mm-250mm (customizable) |
| Filling capacity | 20ml-300ml/piece (adjustable) |
| Filling accuracy | ±1% |
| Benchmarking method | Servo calibration |
| Filling method | Pneumatic piston filling |
| Sealing method | Ultrasonic welding |
| Production capacity | 20-30 pieces/minute |
| Compressed air | 0.5-0.8mpa |
| Power | 4.5kw (220V 50Hz) |
| Ultrasonic power | 2.6kw |

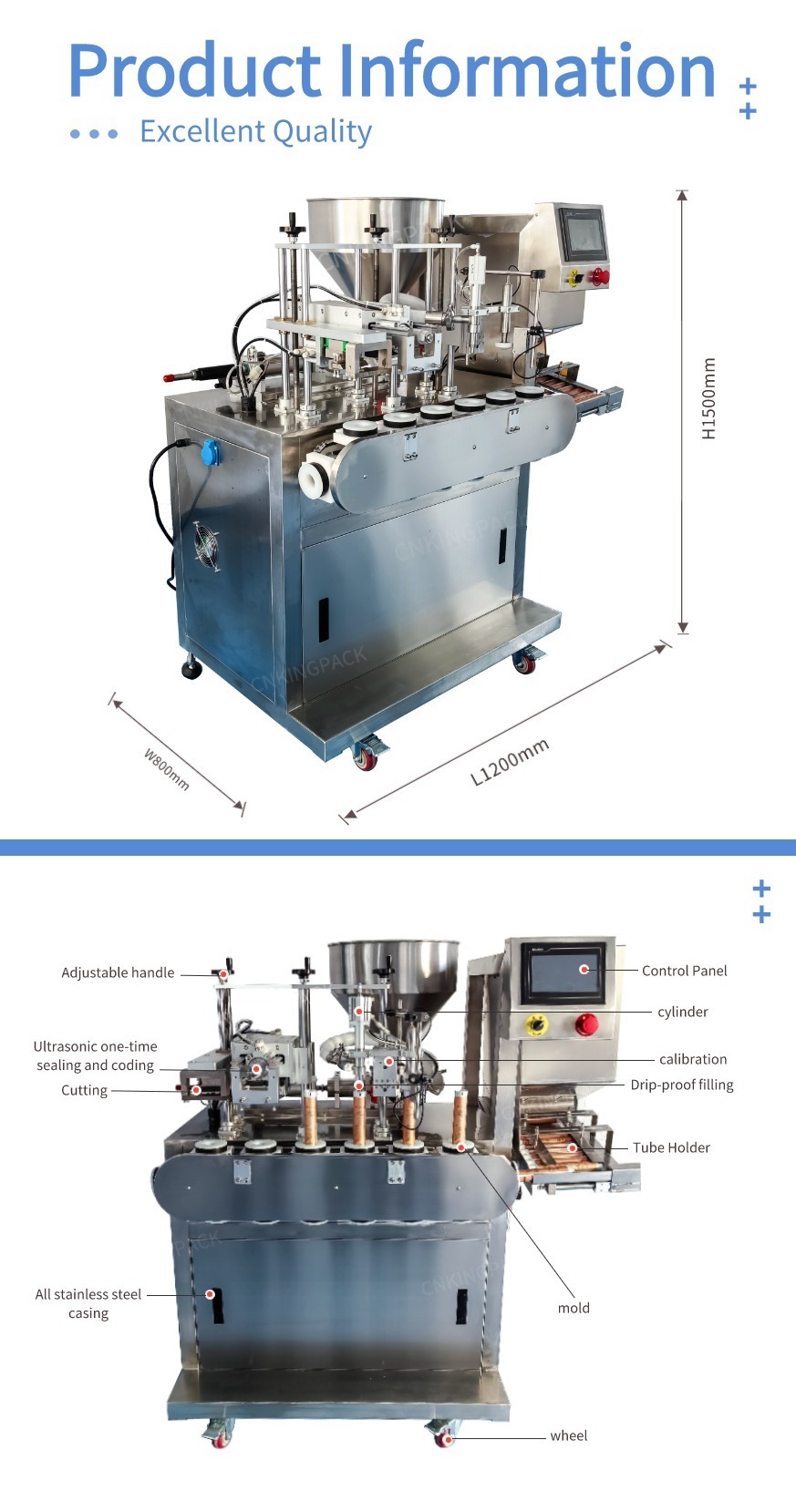

| Dimensions (cm) | L*W*H:120㎝×80㎝×150㎝ |
| Main unit weight (kg) | About 220kg |
