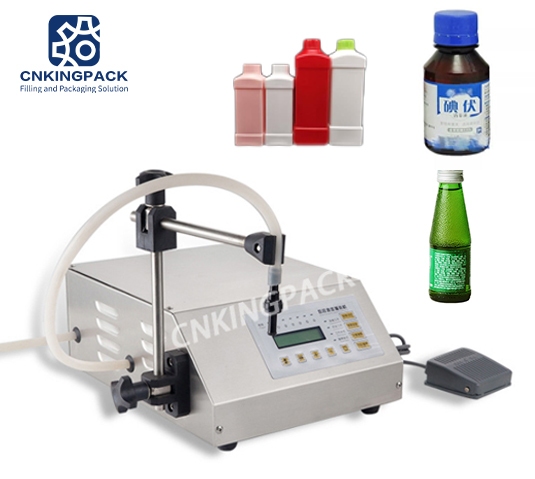

GFK-160 Digital Control Liquid Filling Machine
Wide range of applications, suitable for bottled or bagged a variety of low-concentration liquid products, such as water, milk, juice, etc.
Description
This machine uses microcomputer to control the the micro-pump in filling time and motor speed，so as to fill the liquid evenly and accurately. The filling speed can be changed as you like. It with simple structure and easy coperation, It is suit for medicine、daily use、foodstuff 、pesticide and any other special filed.
Features
- 01Imported single-chip motor control, stainless steel housing, composite GMP requirements.
- 02LCD liquid crystal display, panel operation more convenient and simple.
- 03Outlet nozzle anti-drip design, filling high precision, accurate measurement.
- 04 Automatic counting function, effective control of the number of filling.
Advantage
- 01Stainless steel body.
- 02LED control panel.
- 03Leakage-proof, precise filling and volume control.
- 04Automatic counting design.
Applications
It is widely used in medicine, chemical industry, food, beverage, grease, cosmetics and other industries.
Suitable for filling almost all flowing liquids, especially for filling oil, washing liquid
Parameter Data
|
Model |
GFK-160 |
|
Voltage |
220V/50Hz |
|
Power |
30W |
|
Max Flow Rate |
3.2L/min |
|
Max Suck Distance |
2m |
|
Repeat Error |
<0.5% |
|
Dimension |
400×380×200mm |
|
Machine Weight |
5.5kg / 12.1Lbs |
|
Filling Volume Range |
2ml-3500ml |
|
Anti-dripping Function |
Available |
|
Memory Function without Electricity |
Available |
|
Machine Size |
350*270*150mm |
|
Diameter of Filling Nozzle |
Φ 8mm |
