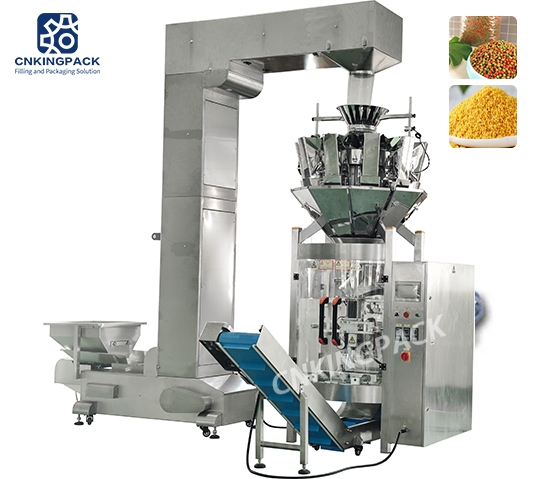

Multi-head Combination Scale Automatic Packaging Machine
Granule Packing Machine with Ten Scales
Description
- 01Used to pack granular or small products such as candy, peanuts, pistachios, melon seeds, potato chips, fish balls, etc.
- 02It can be equipped with four-head scales, ten-head scales and 14-head scales.
- 03The package weight is very accurate.
- 04All stainless steel materials 5)Z type elevator
Features
- 01Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
- 02Use famous brand electric and pneumatic components, stable and long life circle.
- 03Use superior mechanical components, reduce the wear out loss.
- 04Easy to install film, auto correcting the excursion of the film.
- 05Apply advanced operating system, easy to use and reprogrammable.
- 06The hopper can choose 1.3 liters and 2.5 liters
Advantage
- 01All stainless steel body, anti-rust and dust removal design.
- 02Using thick board, the machine is more solid.
- 03 Stable operation, simple operation and monitoring, multiple languages can be selected.
- 04Intelligent and efficient weighing.
Applications
This machine is suitable for candy, nuts, potato chips, jelly, fish balls, frozen shrimp and other granular or block products.
Parameter Data
Model | KPL-420LK | KPL-520LK | KPL-620LK | KPL-720LK |
Max Film Width | 420mm | 520mm | 620mm | 720mm |
Bag width | 40-200mm | 80-250mm | 100-300mm | 140-350mm |
Bag length | 40-300mm | 40-350mm | 80-400mm | 40-450mm |
Packing speed | 15-70bags/min | 15-60bags/min | 10-50bags/min | 10-40bags/min |
Voltage | 220v/380v,50-60Hz | 220v/380v,50-60Hz | 220v/380v,50-60Hz | 220v/380v,50-60Hz |
Power | 3kw | 3.5kw | 3.8kw | 4kw |
Dimension | 1400*1100*1500 | 1570*1140*1510mm | 1700*1320*1800mm | 1910*1420*2000mm |
Weight | 450kg | 500kg | 630kg | 700kg |
