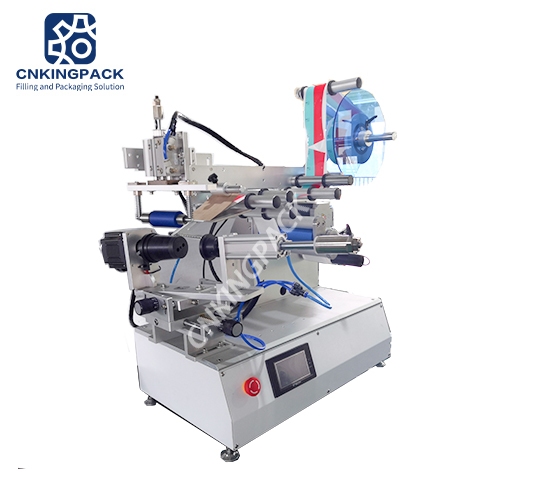

SL-110 Semi Automatic Cup Labeling Machine
Description
Specifically designed for self-adhesive labeling on cups, with no bubbles and high precision. Suitable for various shape of cups
Features
1) Control system: Brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: HIM touch screen to set parameters, directly visual interface easy operation, with Chinese and English two kinds language (other languages can be customize), also rich with the help of the function and fault display function.
3) Check system: Use brand check label sensor, automatic check label station, stable and convenient don't have much higher requirement for the worker.
4) Alarm function(optional): such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
5) Machine Material: The machine and spare parts all use anodized senior aluminum alloy, with high corrosion resistance and never rust.
6) Labeling way: use the step motor send label system to send label on product surface.
7) Low voltage circuit all use the brand products.
8) Change the labeling mechanism, can be applied to the uneven surface labeling, such as prism surface, circular surface labeling and so on.
Advantage
Easy to operate
High stability
High precision labeling
Wide range of application
Labeling 1 OR 2 sides
Applications
Widely used in food, cosmetic, chemical, pharmaceutical and other industries.
Parameter Data
|
Model
|
SL-110
|
|
Labeling capacity
|
0~30pcs/min
|
|
Labeling accuracy
|
±0.5 mm
|
|
Label material
|
Adhesive sticker, opaque or transparent label
|
|
The inner diameter of label roll
|
76 mm
|
|
The outer diameter of label roll
|
240 mm(max)
|
|
The suitable size of label
|
Width 20-150 mm, length 20-300 mm
|
|
The suitable size of labeling objects
|
D 12mm～250mm, length 30mm～250mm, Can be customized
|
|
Total Power
|
660w
|
|
Power supply
|
AC220V/110V, Single phase. Globally customized
|
|
Net weight
|
About 60kg
|
|
Machine size
|
83(L)×72(W)×95(H)cm
|
