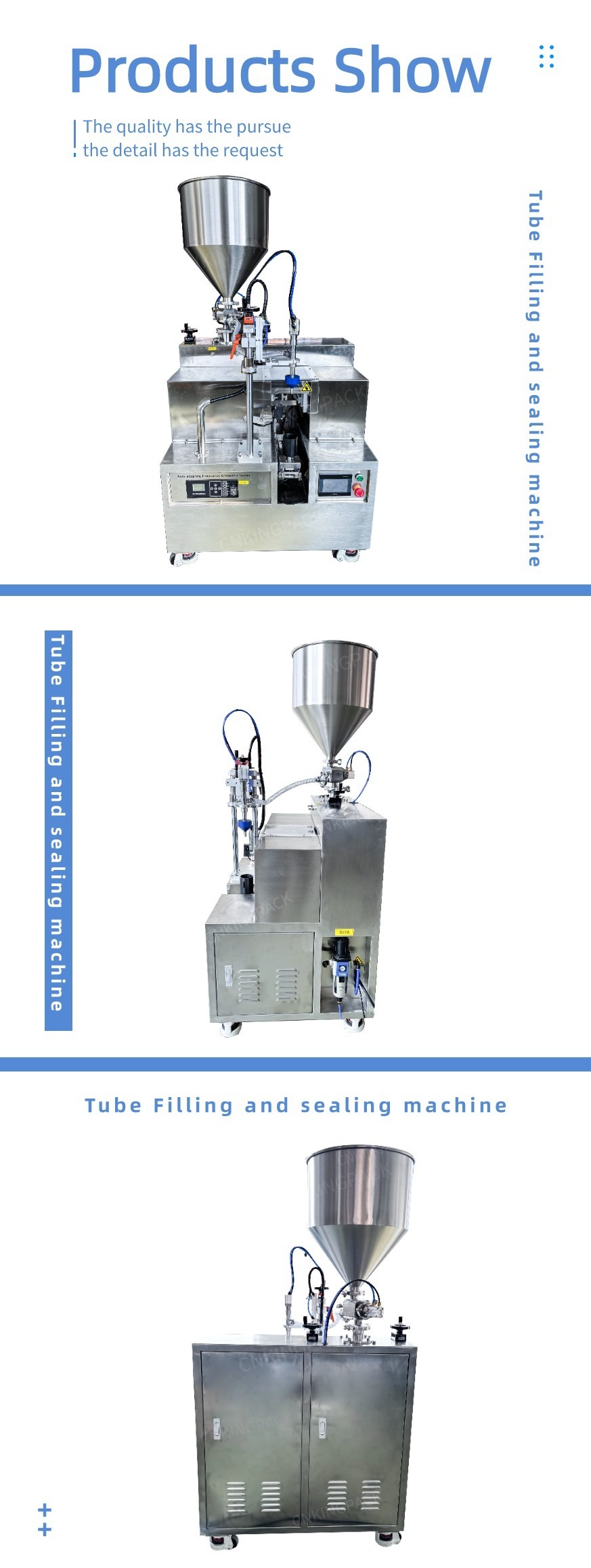

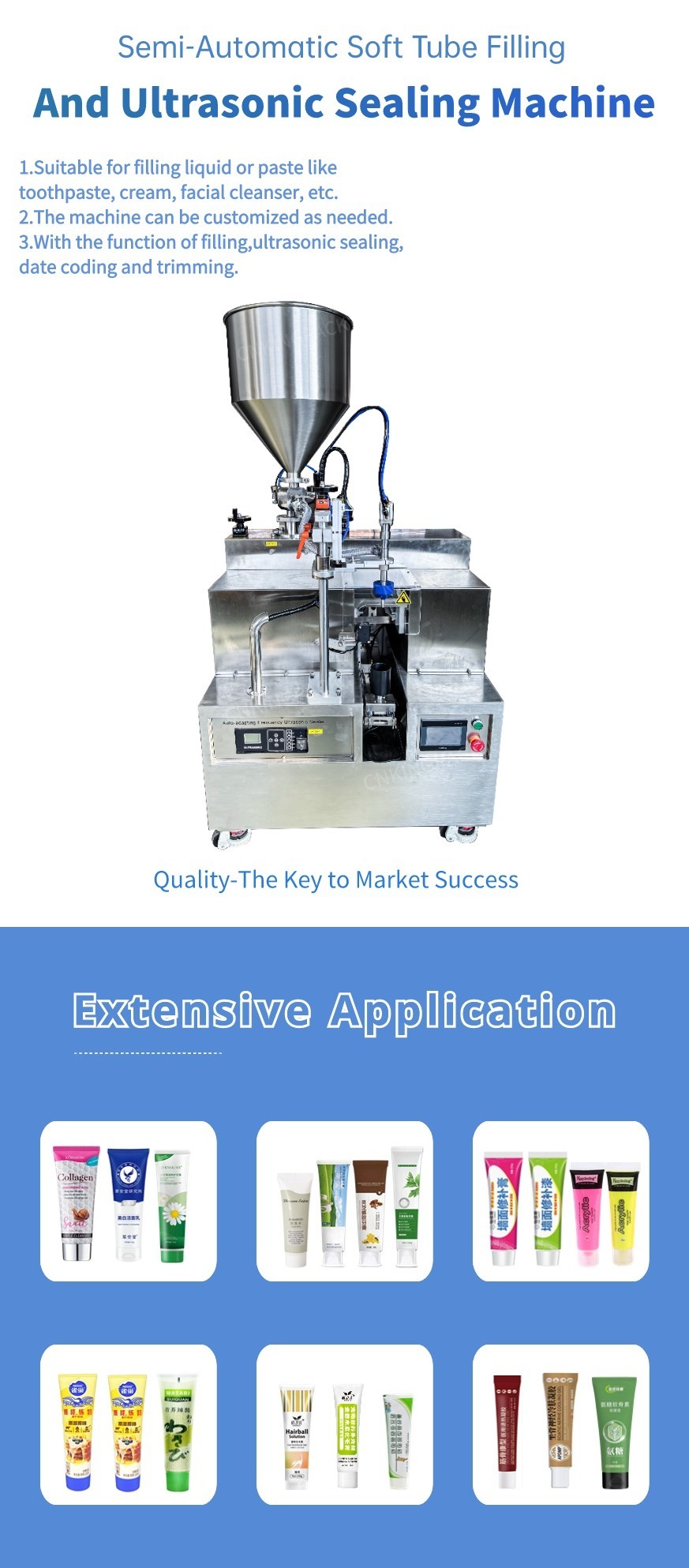

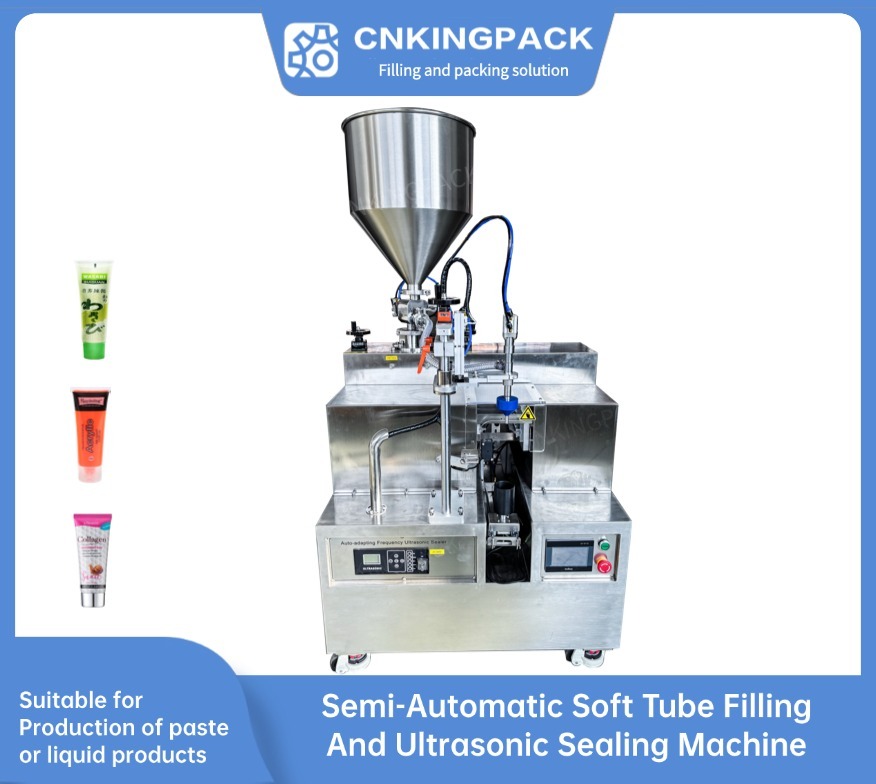

Semi-Automatic Soft Tube Filling And Ultrasonic Sealing Machine
It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.
Extensional organization of the machine is made of aluminium alloy and stainless steel
Description
This machine independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adju st the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.It manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.
Features

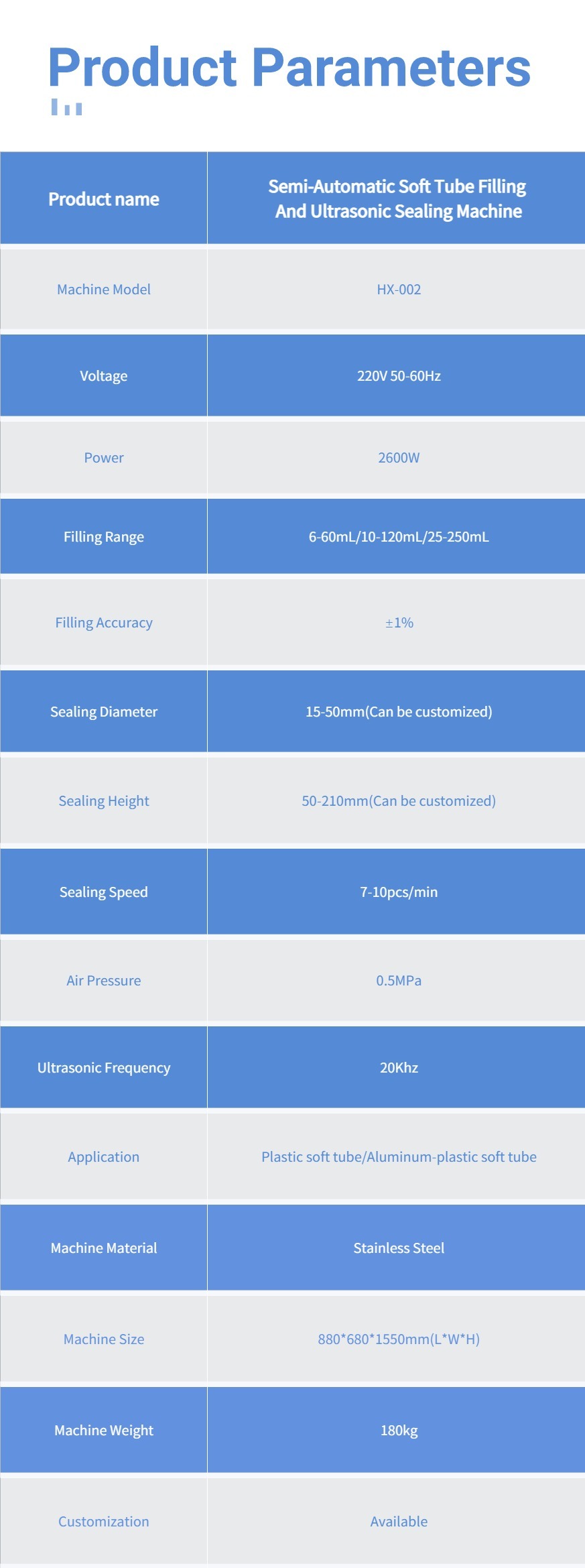

| Product name | Semi-Automatic Soft Tube Filling And Ultrasonic Sealing Machine |
| Machine Model | HX-002 |
| Voltage | 220V 50-60Hz |
| Power | 2600W |
| Filling Range | 6-60mL/10-120mL/25-250mL |
| Filling Accuracy | ±1% |
| Sealing Diameter | 15-50mm(Can be customized) |
| Sealing Height | 50-210mm(Can be customized) |
| Sealing Speed | 7-10pcs/min |
| Air Pressure | 0.5MPa |
| Ultrasonic Frequency | 20Khz |
| Application | Plastic soft tube/Aluminum-plastic soft tube |
| Machine Material | Stainless Steel |

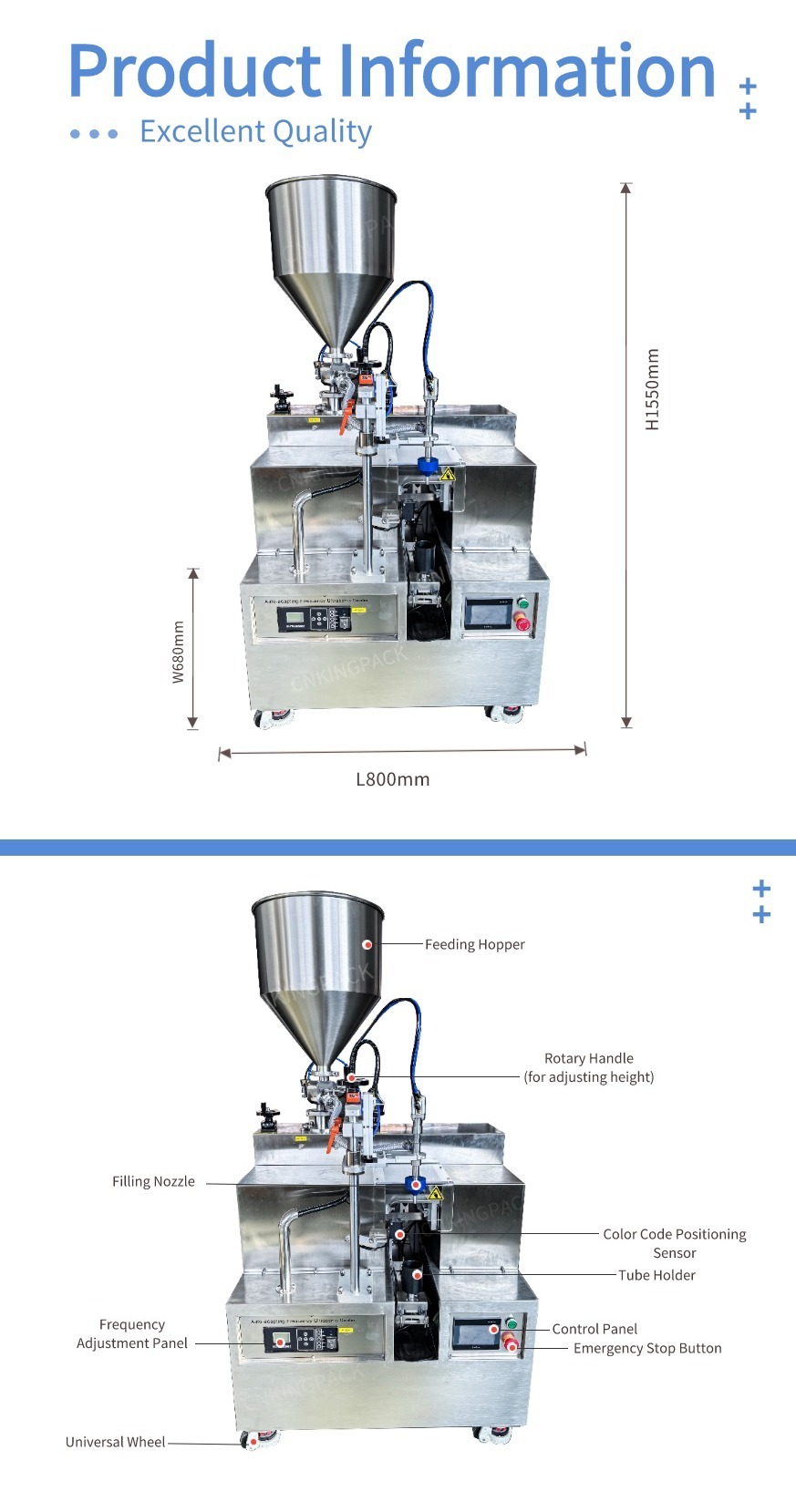

| Machine Size | 880*680*1550mm(L*W*H) |
| Machine Weight | 180kg |
| Customization | Available |
