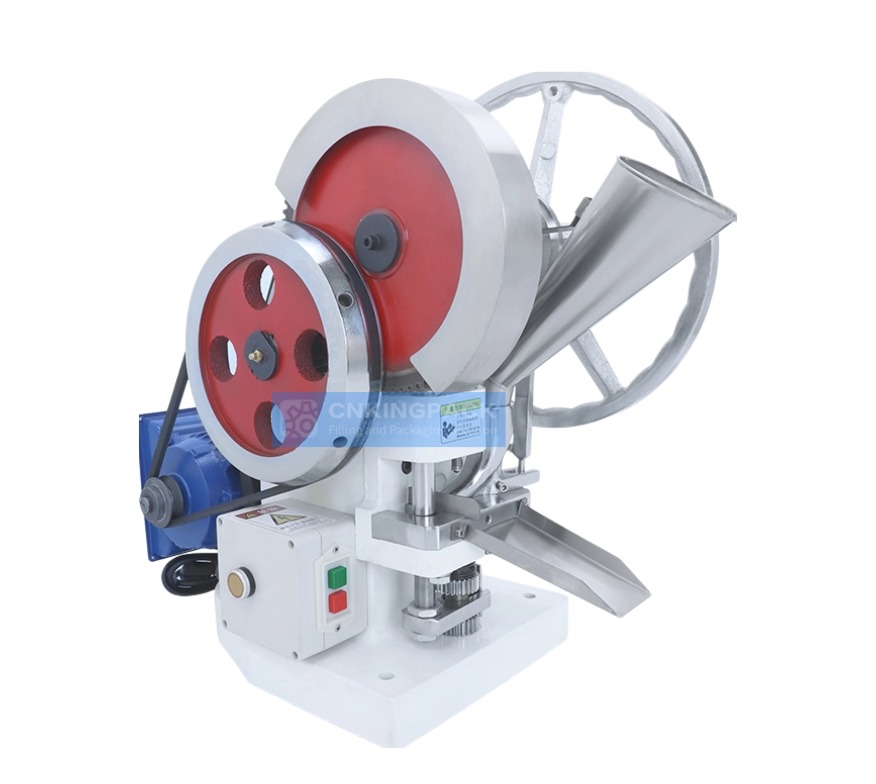

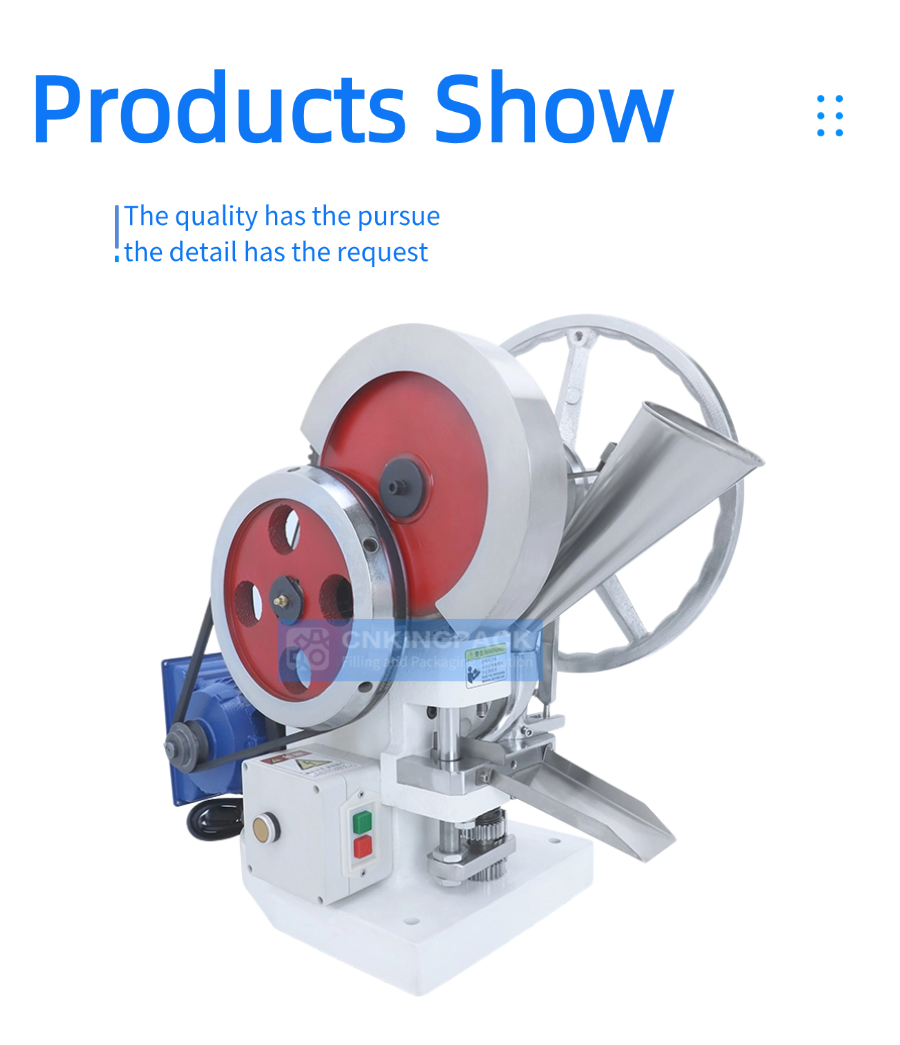

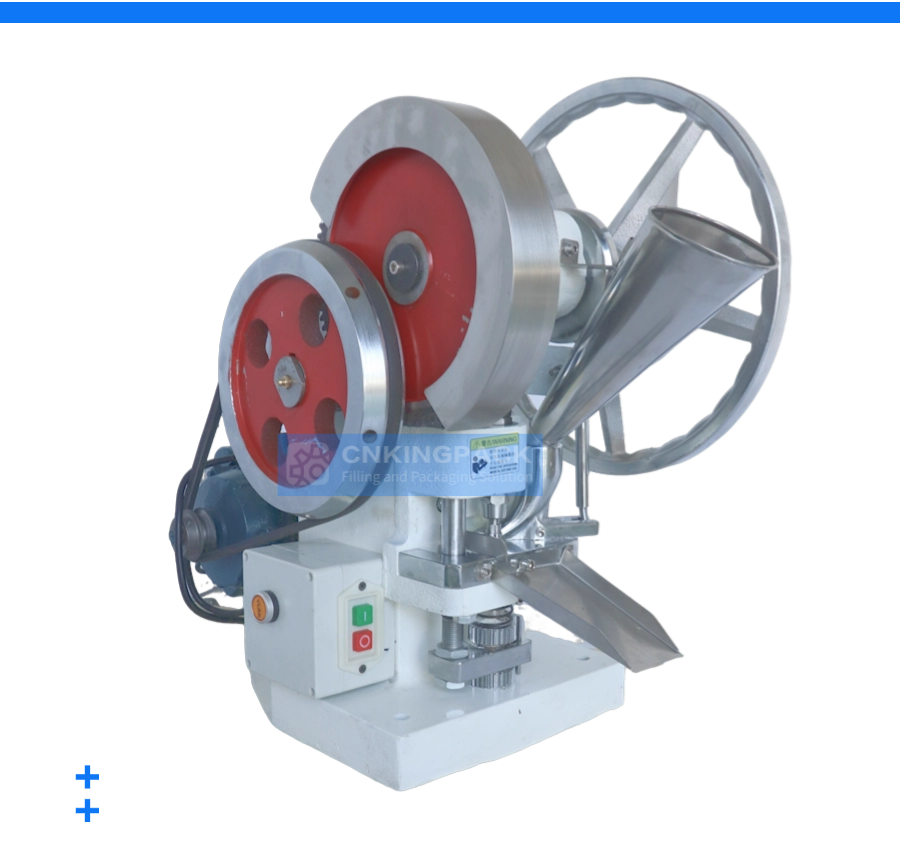

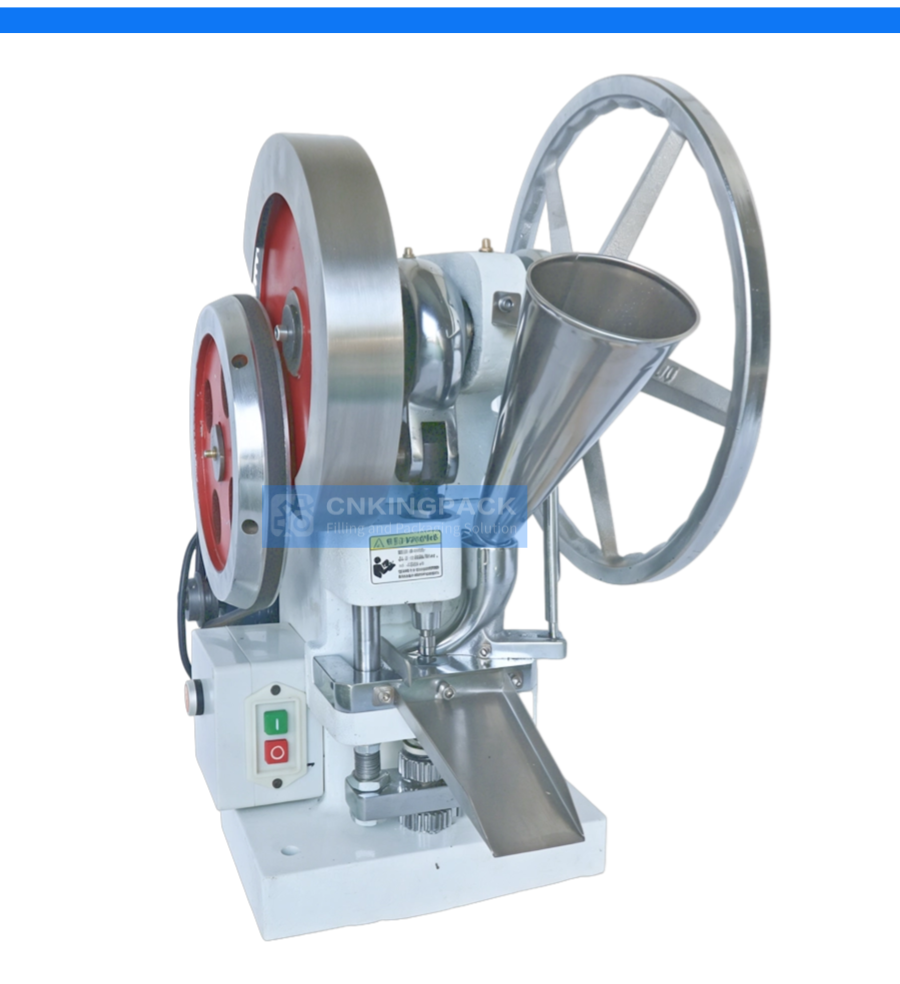

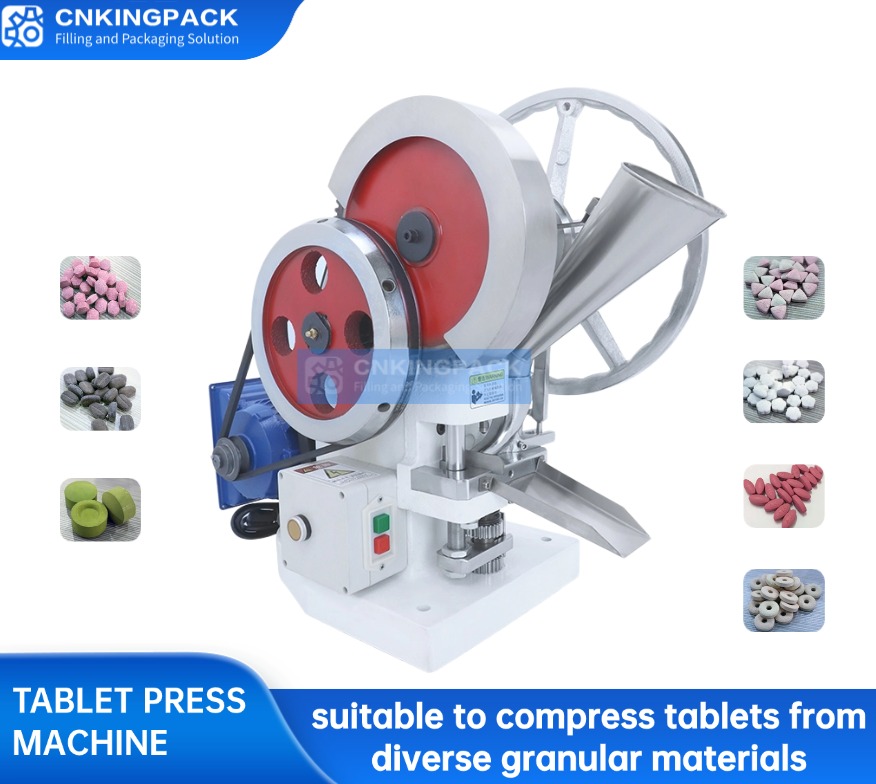

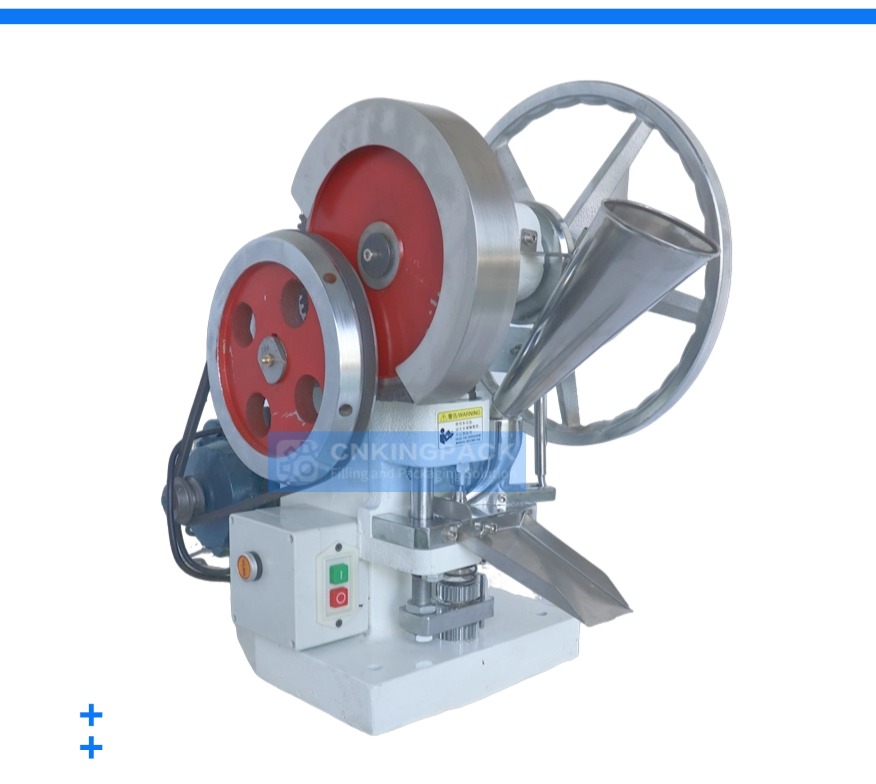

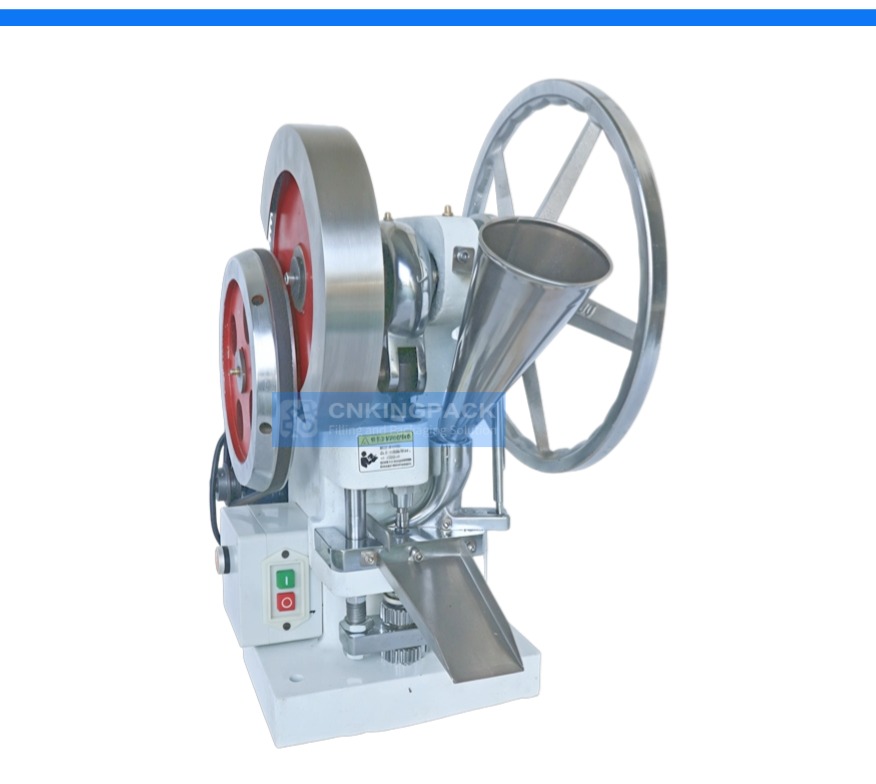

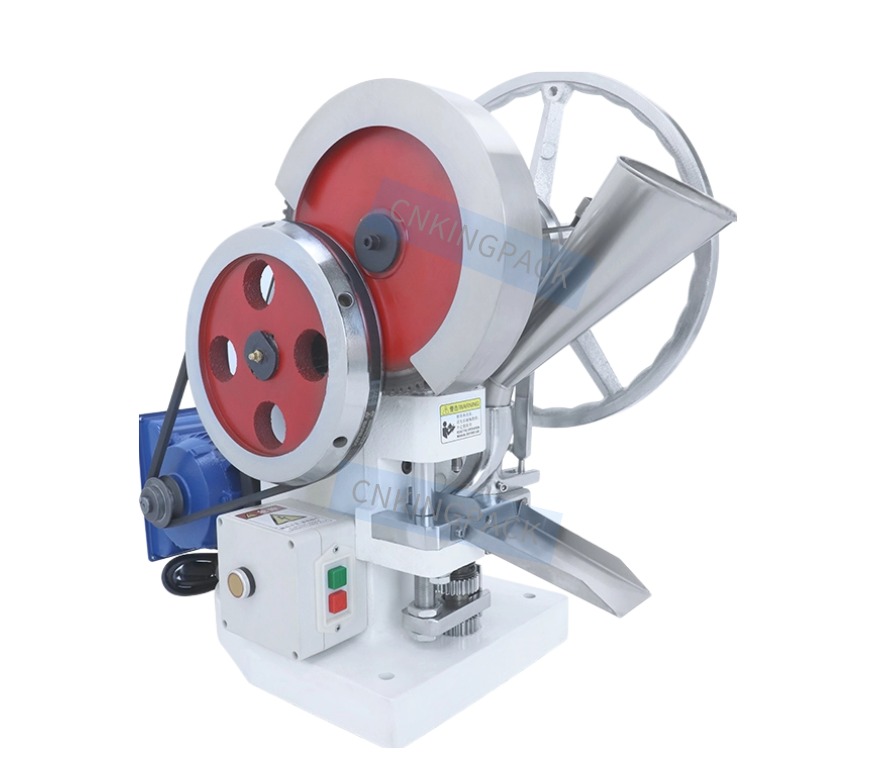

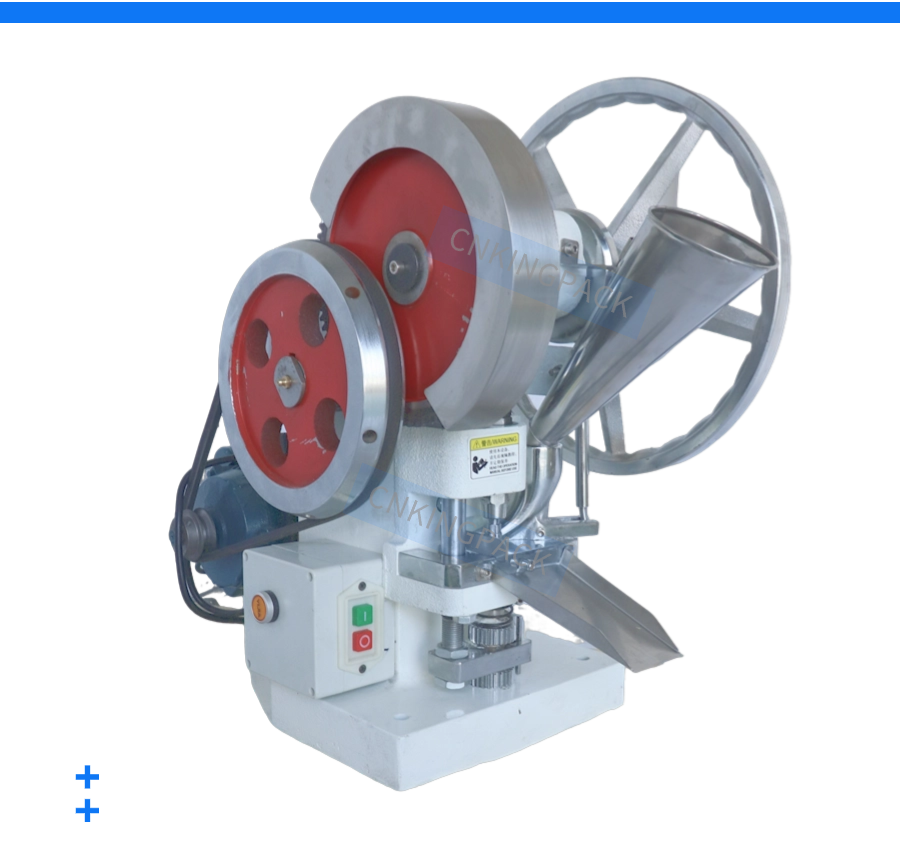

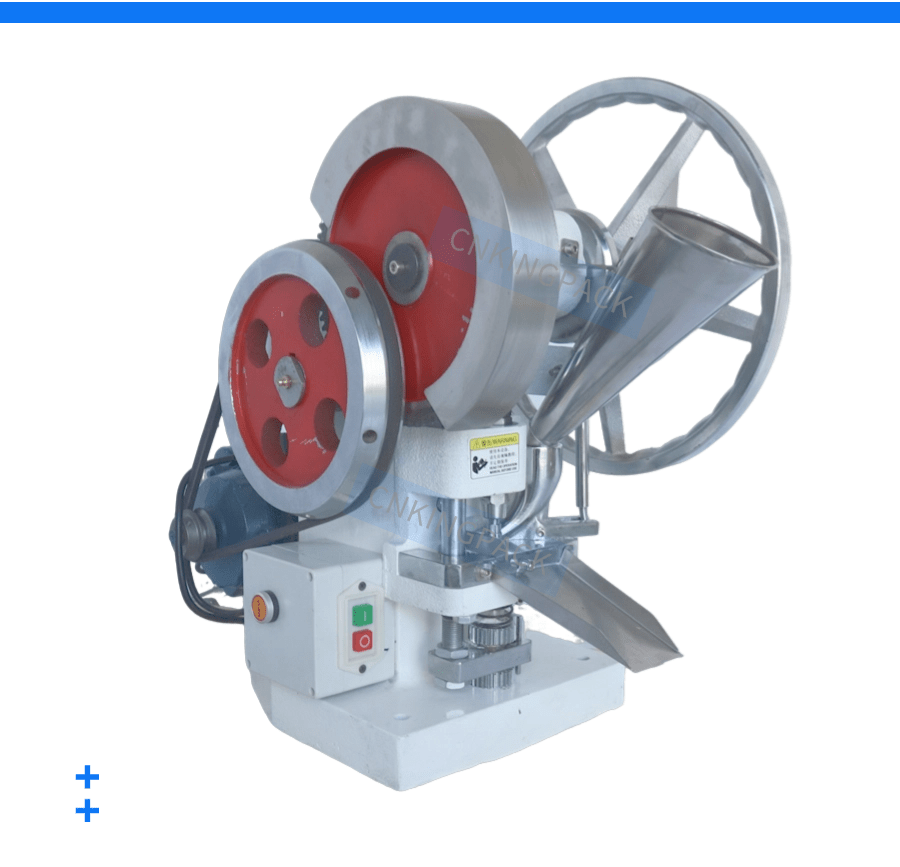

TDP-5T Electric Small Single Punch Tablet Press Machine
Suitable to compress tablets from diverse granular materials, including sugar pieces, calcium tablets, and uniquely shaped tablets.
Description
Suitable to compress tablets from diverse granular materials, including sugar pieces, calcium tablets, and uniquely shaped tablets.
Features

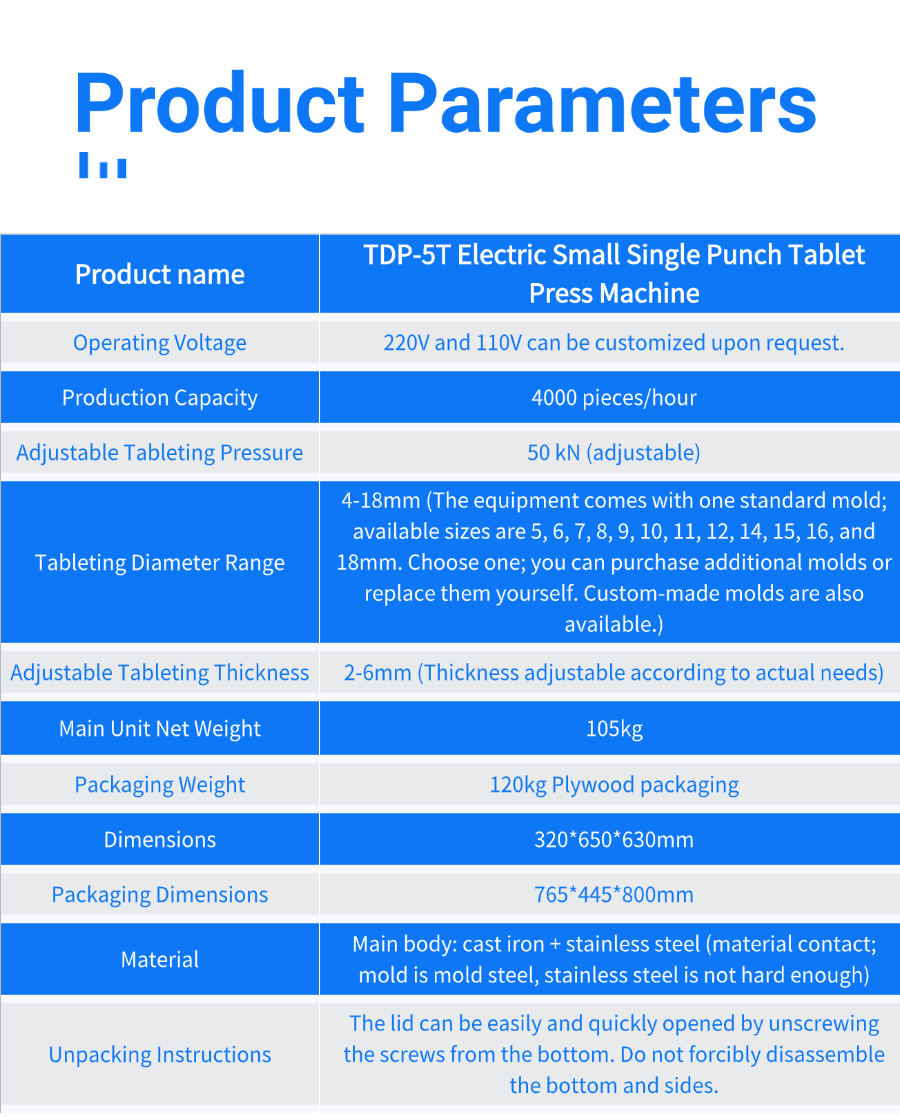

| Product name | TDP-5T Electric Small Single Punch Tablet Press Machine |
| Operating Voltage | 220V and 110V can be customized upon request. |
| Production Capacity | 4000 pieces/hour |

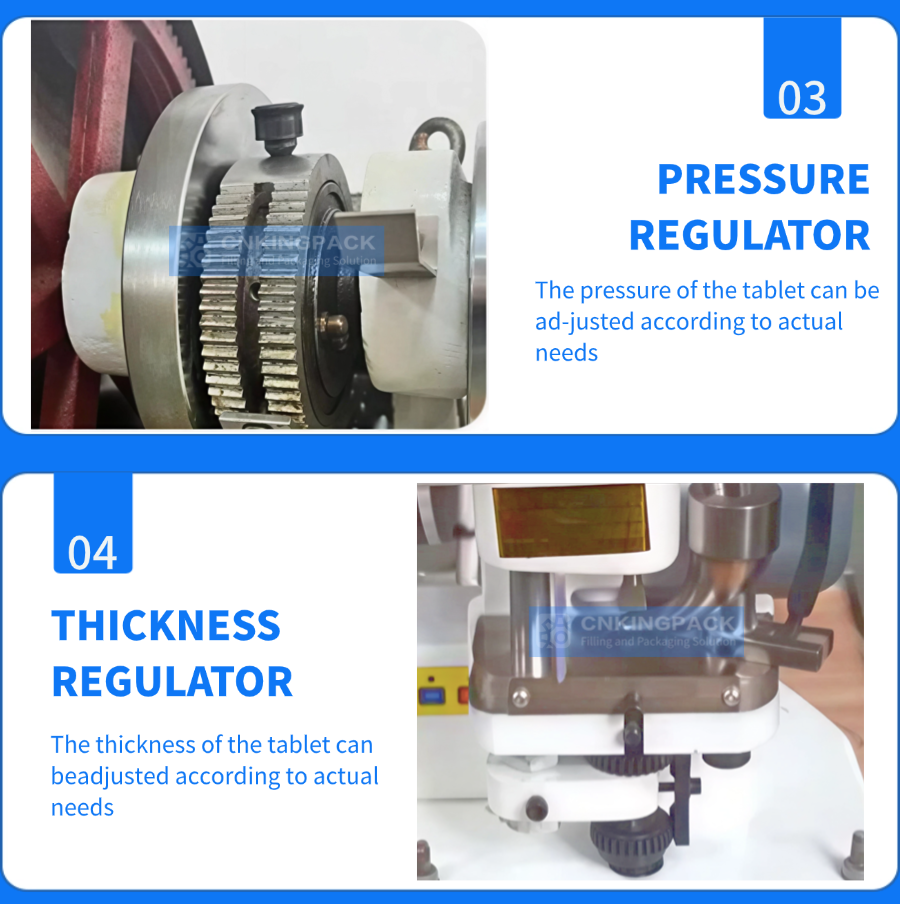

| Adjustable Tableting Pressure | 50 kN (adjustable) |

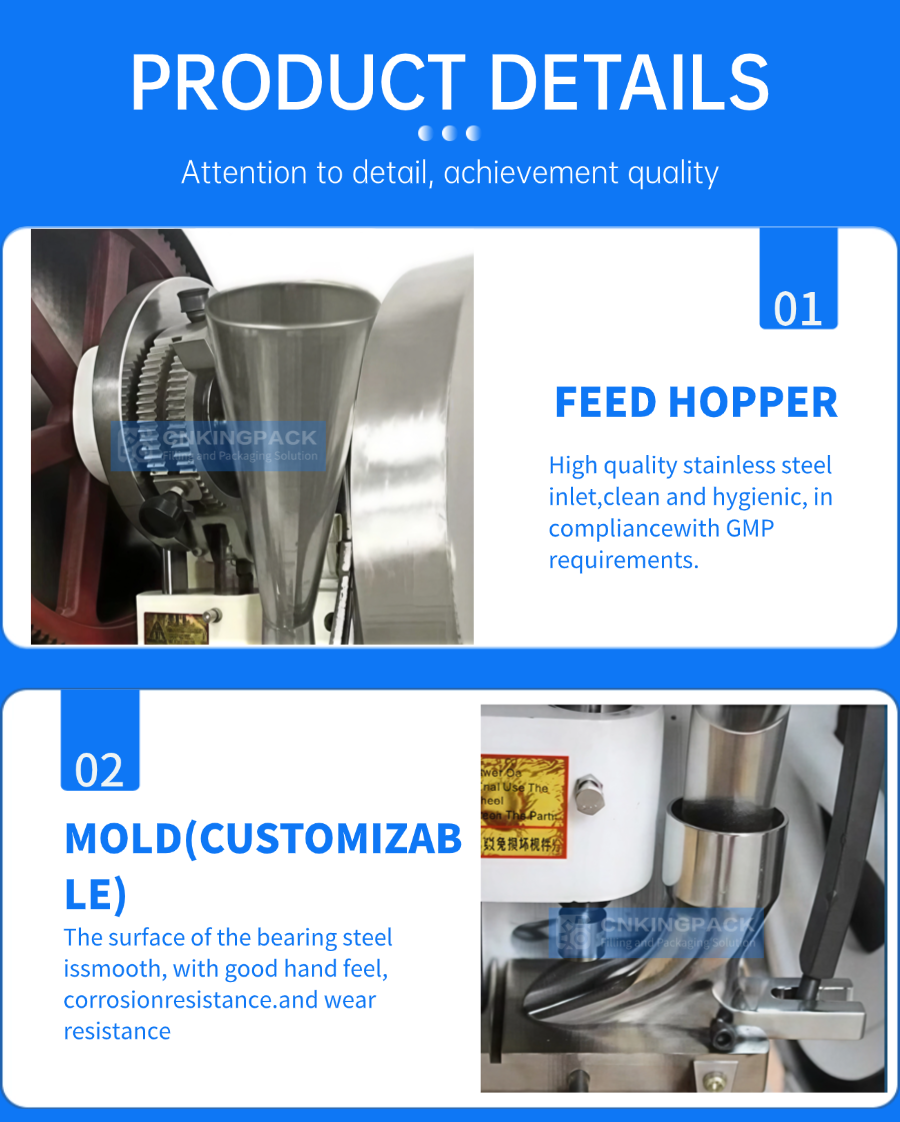

| Tableting Diameter Range | 4-18mm (The equipment comes with one standard mold; available sizes are 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, and 18mm. Choose one; you can purchase additional molds or replace them yourself. Custom-made molds are also available.) |
| Adjustable Tableting Thickness | 2-6mm (Thickness adjustable according to actual needs) |
| Main Unit Net Weight | 105kg |
| Packaging Weight | 120kg Plywood packaging |

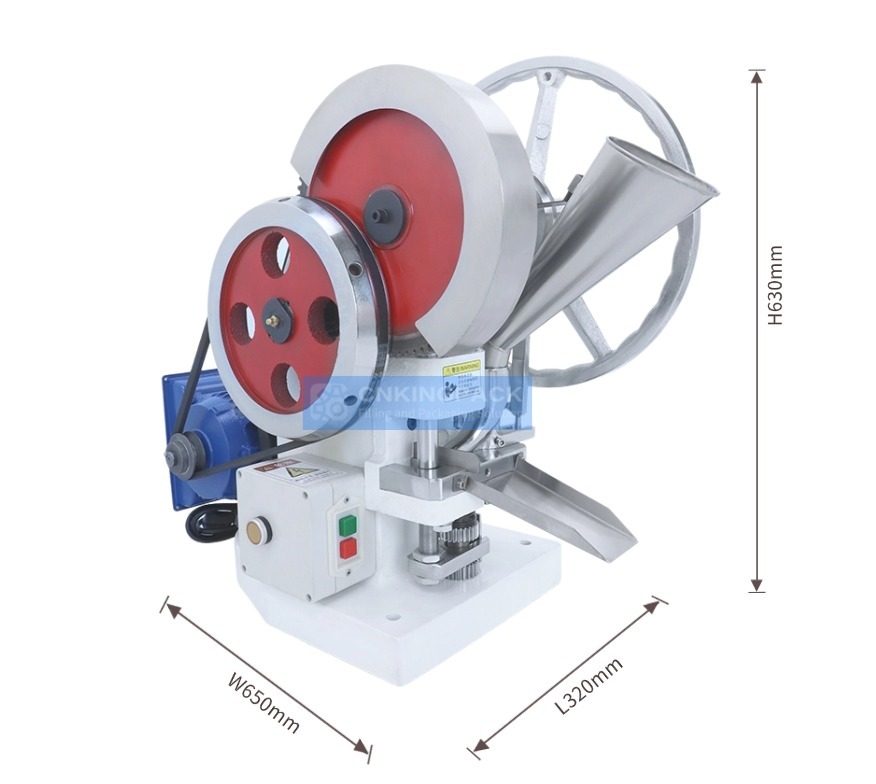

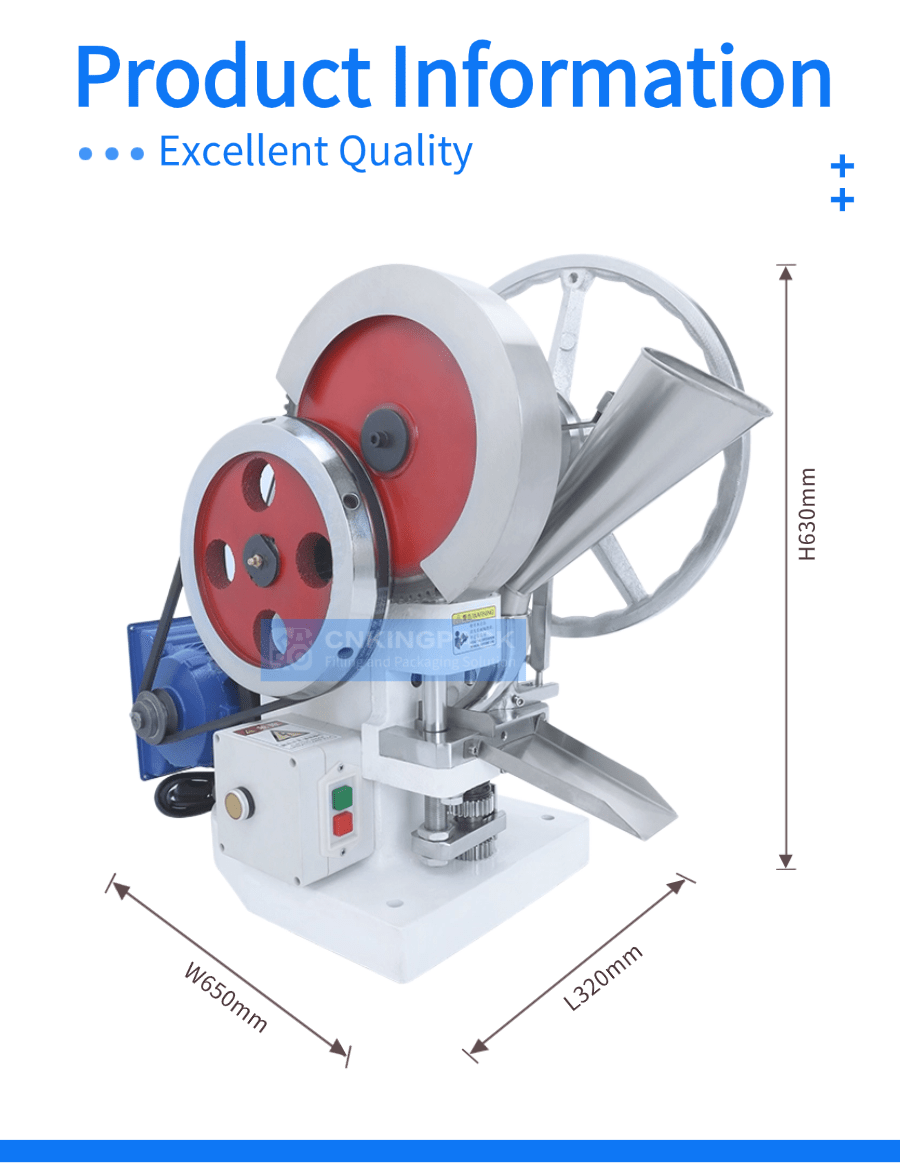

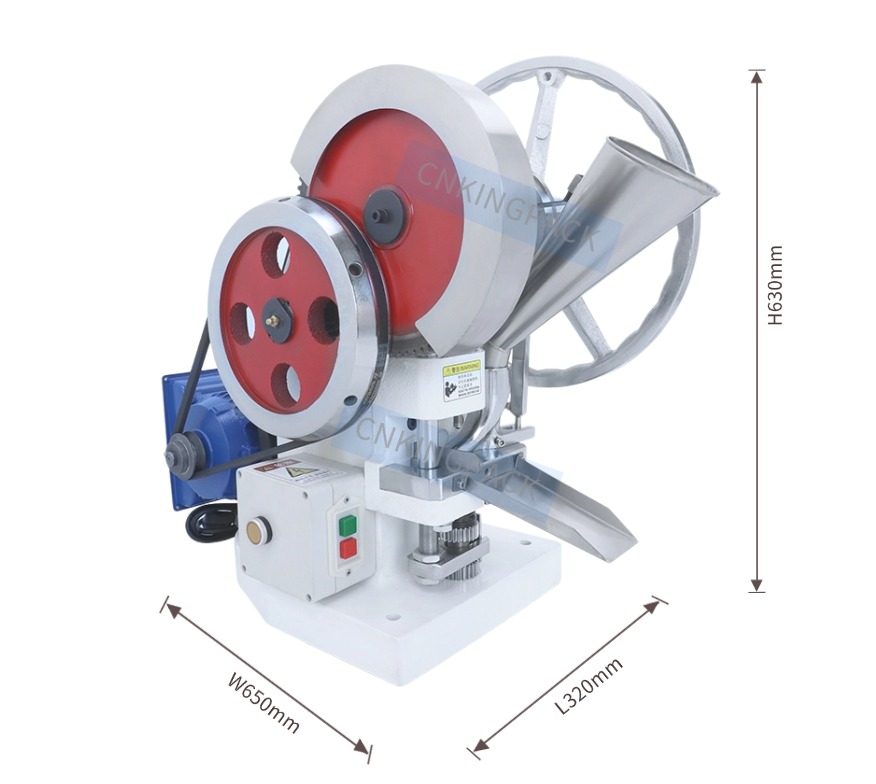

| Dimensions | 320*650*630mm |
| Packaging Dimensions | 765*445*800mm |
| Material | Main body: cast iron + stainless steel (material contact; mold is mold steel, stainless steel is not hard enough) |
| Unpacking Instructions | The lid can be easily and quickly opened by unscrewing the screws from the bottom. Do not forcibly disassemble the bottom and sides. |
